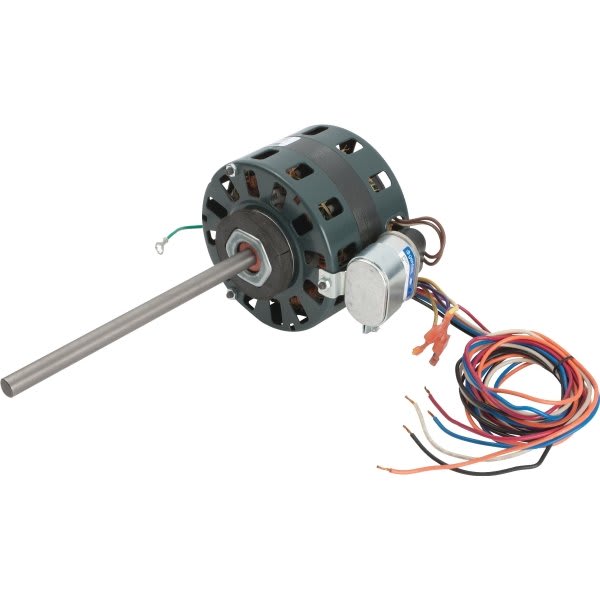

FASCO D290A Fan Coil and Air Conditioner Motor

Product Description

The FASCO D290A is a single-phase motor suited for fan coil and air conditioning applications. It operates at one hundred fifteen volts and sixty hertz, with a speed of one thousand fifty RPM. This motor has an open air over enclosure and features automatic thermal protection. The design includes a forty-two frame and a half-inch diameter shaft with reversible rotation.

• Suitable for fan coil, air conditioning, and heating units.
• Includes a permanent split capacitor design.
• Equipped with automatic thermal protection and reversible rotation.

Product Highlights

The motor is designed for continuous duty with optimal efficiency and reliability, making it ideal for HVAC systems. It also includes a resilient base for secure mounting, enhancing versatility in installation.

Product Information

Standard Information

• Brand: FASCO
• MPN: D290A

Technical Specifications

• Horsepower: 1/10-1/15-1/25-1/40 HP
• Output Power: 0.07 kW
• Input Voltage: 115 V
• Frequency: 60 Hz
• Phase: 1
• Speed: 1050 RPM
• Number of Speeds: 4
• Current: 2.2/1.4/1.0/0.7 A
• Frame Size: 42
• Enclosure: Open Air Over
• Duty: Continuous
• Insulation Class: B
• Service Factor: 1
• Thermal Protection: Automatic
• Rotation: Reversible
• Mounting Type: Resilient Base
• Shaft Diameter: 0.500 in
• Shaft Length: 8.50 in
• Shaft Type: Flat
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across the line
• Ambient Temperature: 40 °C
• Drive End Bearing: Sleeve
• Opp Drive End Bearing: Sleeve
• Poles: 6
• Agency Certifications: UL Recognized, CSA, CE
• Overall Length: 12.59 in
• Frame Material: Rolled Steel
• Efficiency: 65%
• Weight: 7.5 lbs
• Motor Design: Permanent Split Capacitor
• Motor Enclosure Design: Open Air-Over
• Motor Mounting Type: Resilient Ring
