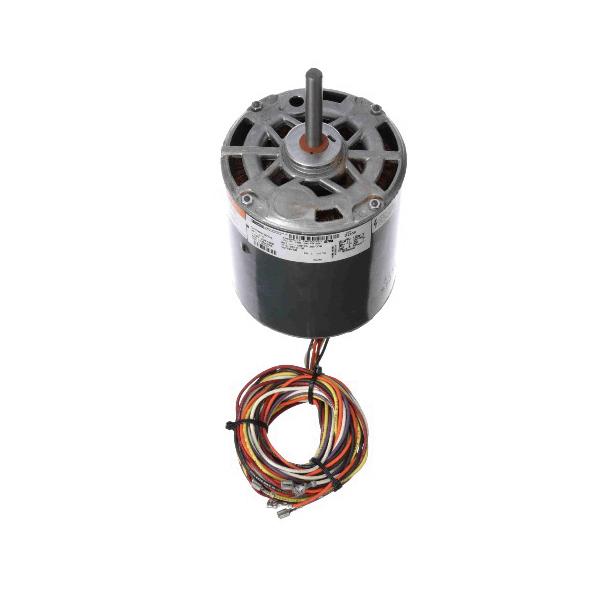

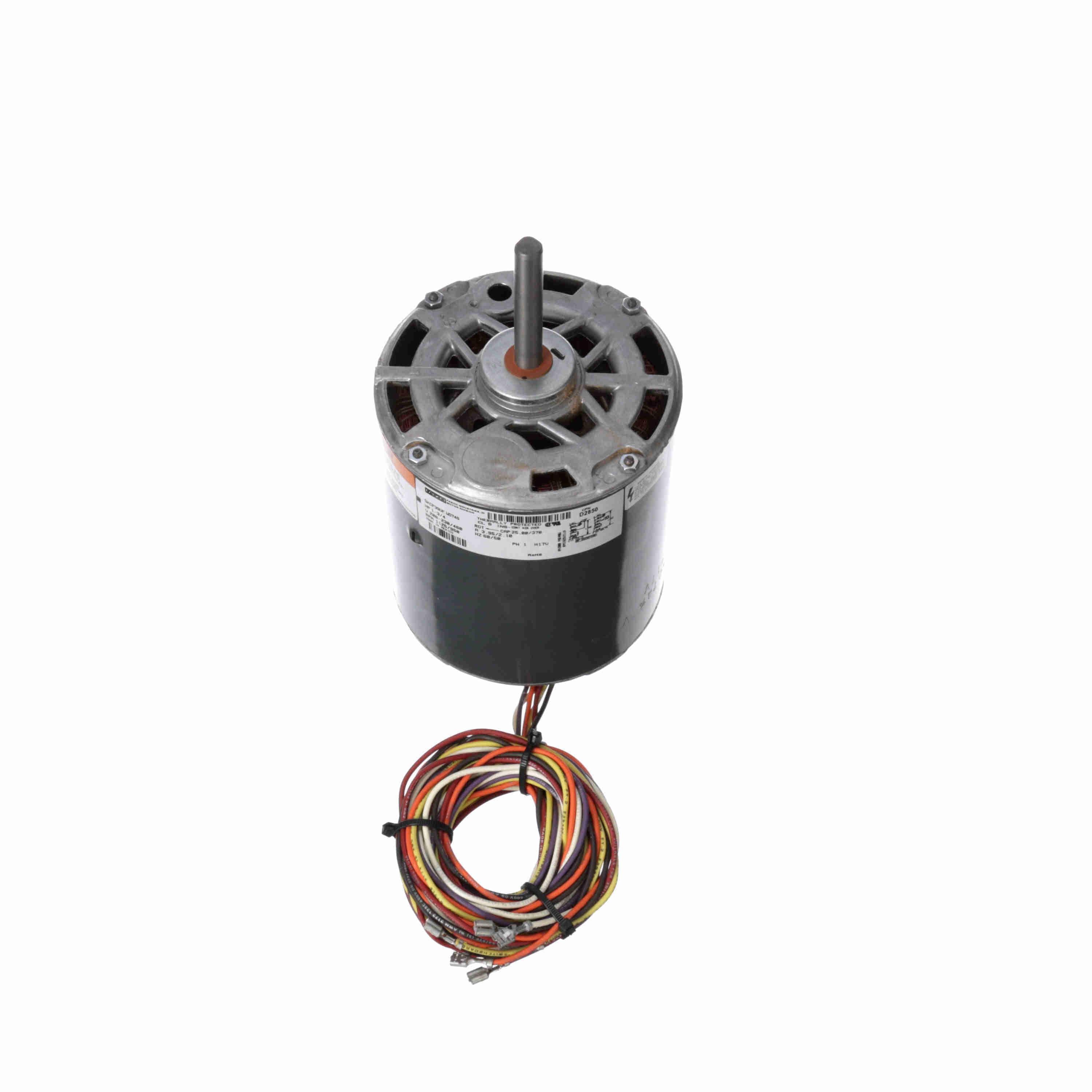

Fasco D2850 6-Pole HVAC/R Motor, Open Air Over Enclosure, 1 to 3/4 hp, 208 to 230/460 V

Product Description

The Fasco D2850 is a reliable OEM replacement motor designed for HVAC and refrigeration applications. This permanent split capacitor motor operates on a voltage range of 208 to 230/460 V, making it suitable for various industrial equipment. The motor features a 6-pole design with a speed range of nine hundred fifty to eleven hundred twenty-five RPM.

• Permanent Split Capacitor design for consistent operation
• Ball bearings provide smooth operation and durability
• Thermal protection ensures safe usage under demanding conditions

Product Highlights

This motor is built with a rolled steel frame and features an open air over enclosure style, suitable for air-over applications. It meets UL and CSA standards, ensuring it is tested for safety and reliability.

Product Information

Standard Information

• Brand: Fasco
• MPN: D2850
• Application Type: OEM Replacement Motor

Technical Specifications

• Horsepower: 1 to 3/4 hp
• Voltage Rating: 208 to 230/460 V
• Speed: 950/1125 RPM
• Frame Size: 48
• Amperage Rating: 3.95/2.1 A
• Insulation Class: Class B
• Dimensions: 5.6 in diameter x 9.88 in length
• Rotation: Counterclockwise
• Mounting Type: Lug mount
• Service Factor: 1
• Temperature Rating: 65 deg C
