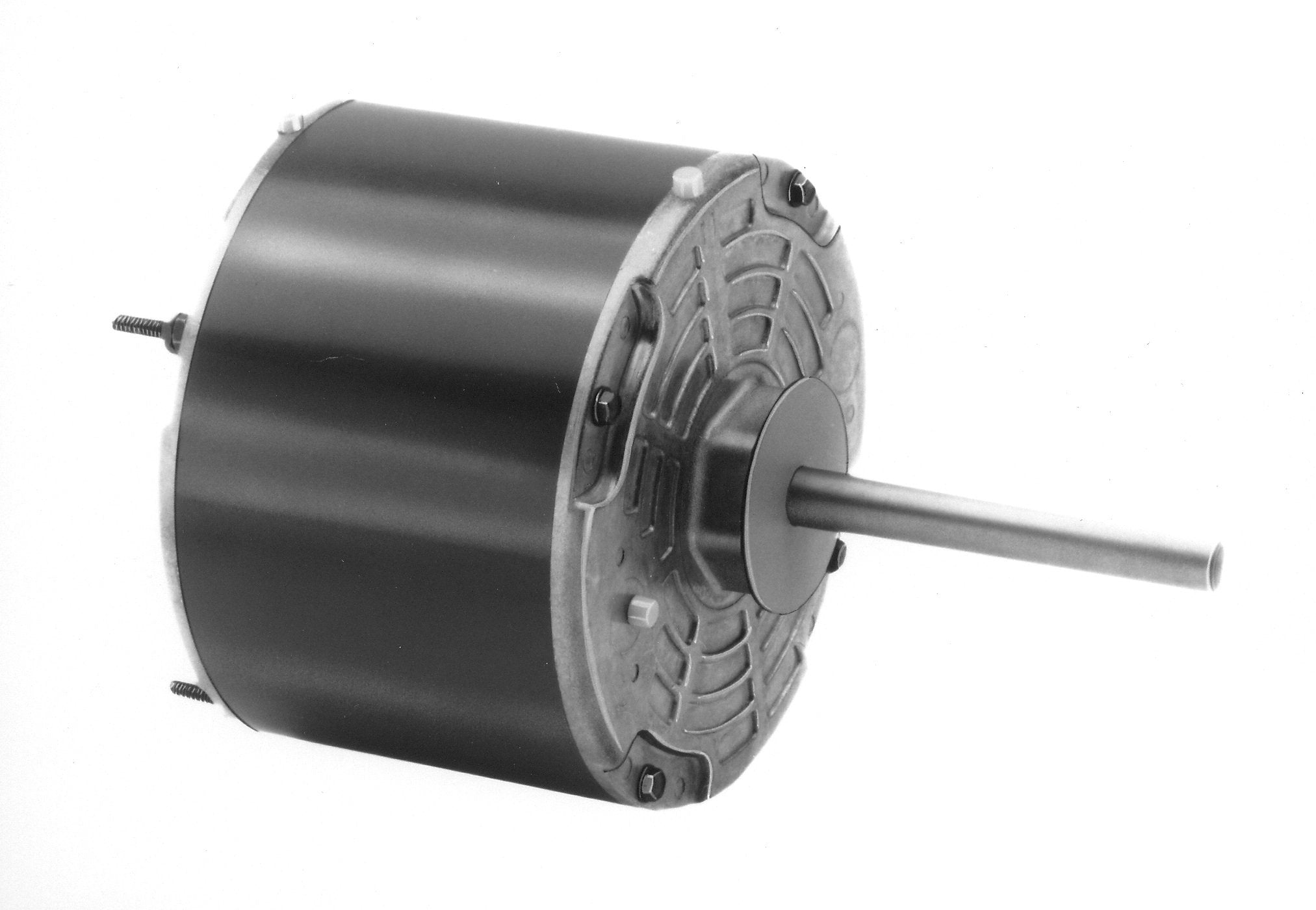

Fasco D2842 5.6 Frame Open Ventilated Permanent Split Capacitor OEM Replacement Motor 1/10HP 825rpm 208/230V 60Hz

Product Description

The Fasco D2842 motor is a 5.6 frame open ventilated permanent split capacitor OEM replacement motor with sleeve bearing. It operates at 1/10HP with a speed of 825 RPM, and uses 208/230V, 60Hz. Ideal for HVAC systems and industrial applications requiring reliable performance.

• 1/10HP operational power
• Open ventilated design
• 825 RPM speed

Product Highlights

This Fasco motor is thermally protected to prevent overheating and features clockwise shaft end rotation. It is CSA certified and UL recognized. The motor includes drilled and tapped holes for secure mounting and comes with an OEM replacement capability for Rheem/Ruud 51-20760-11.

Product Information

Standard Information

• Brand: Fasco
• Model: D2842
• Type: Electric Motor
• OEM Replacement: Rheem/Ruud 51-20760-11

Technical Specifications

• Horsepower: 0.1 HP
• Speed: 825 RPM
• Voltage: 208/230V
• Frequency: 60Hz
• Current: 0.8 amps
• Sleeve Bearing
• Thermal Protection
• Clockwise Shaft End Rotation
• Certification: CSA Certified, UL Recognized
