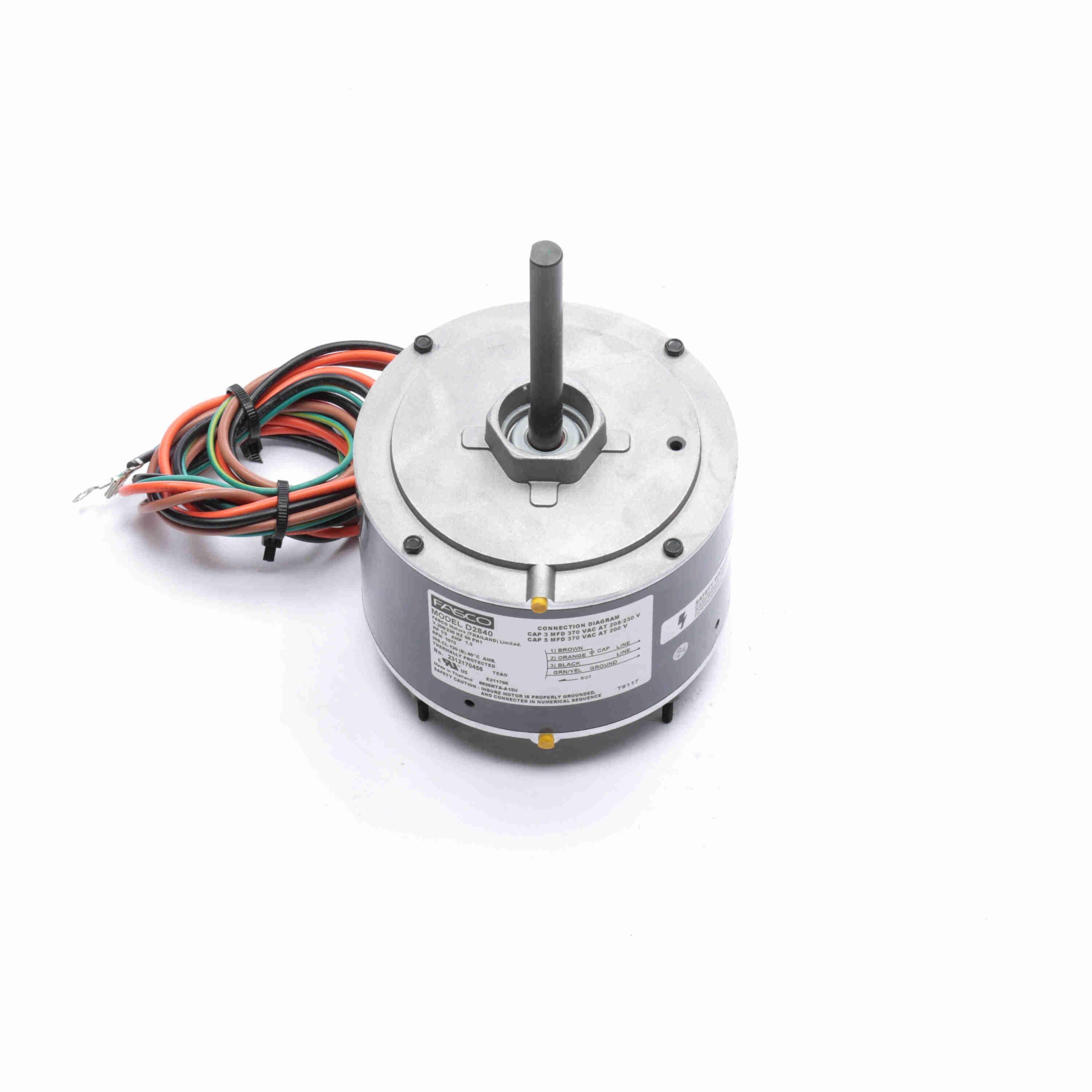

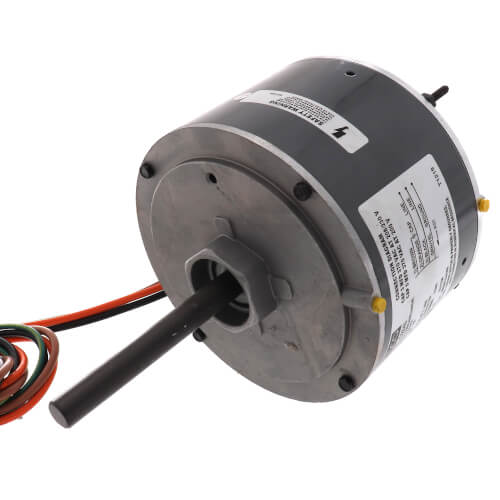

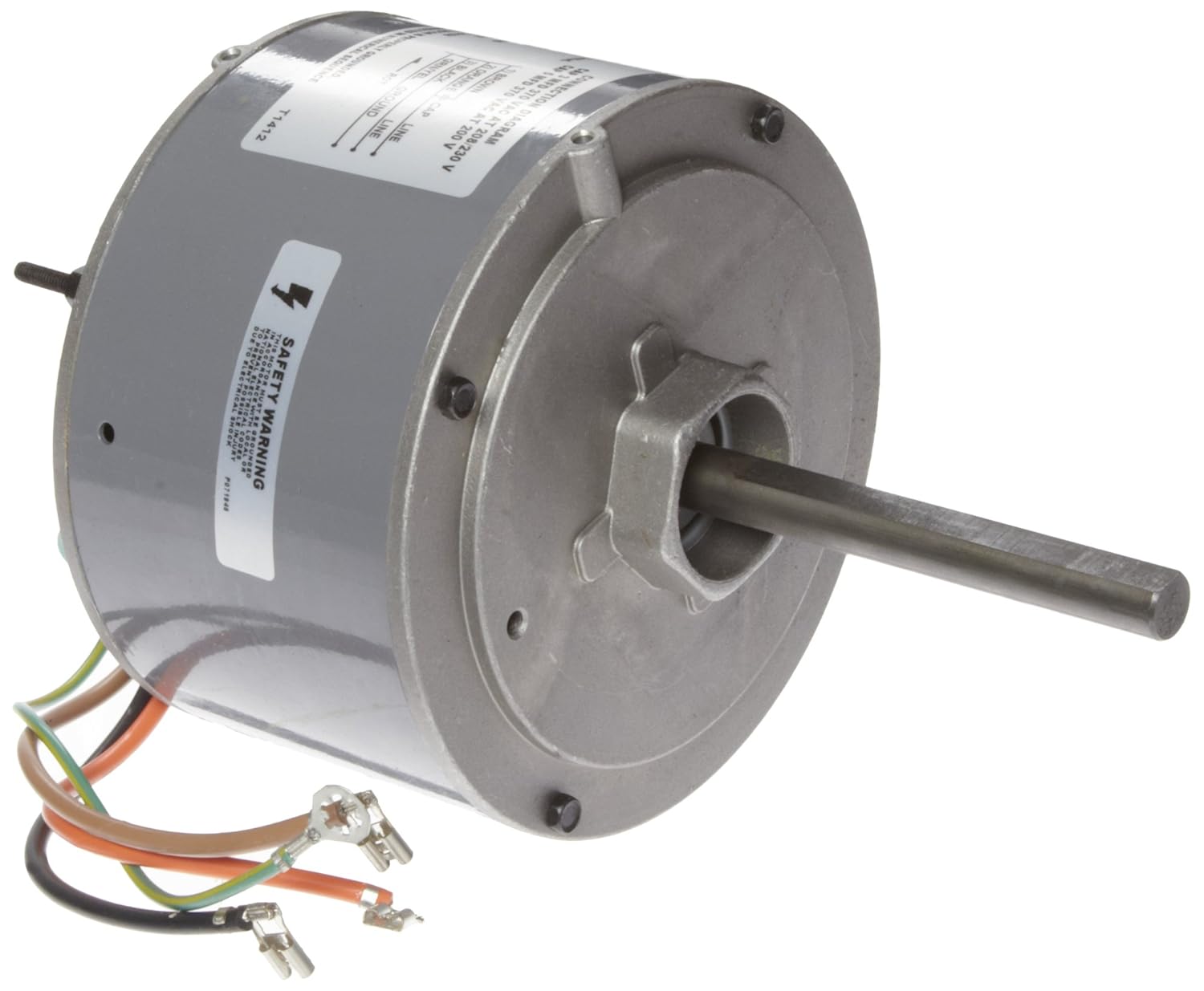

Fasco D2840 Permanent Split Capacitor 1/5HP 1075RPM Motor

Product Description

The Fasco D2840 is a permanent split capacitor motor designed for HVAC applications. This durable motor offers reliable performance for various OEM replacement needs.

• 1/5 horsepower
• 1075 RPM
• Totally enclosed air-over design

Product Highlights

Designed for continuous duty operation, the D2840 features a 6-pole motor and totally enclosed air-over enclosure, making it suitable for demanding HVAC applications. It includes extended mounting studs and a sleeve bearing for durability.

Product Information

Standard Information

• Brand: Fasco
• MPN: D2840
• Color: Not specified
• Voltage: 208-230V

Technical Specifications

• Type: 6-Pole Continuous Duty
• Frame: 48
• Phase: Single
• Speed: 1075 RPM
• Material: Rolled Steel
• Rotation: Clockwise Shaft End (CWSE)
• Dimensions: 5.6 inches Diameter x 8.56 inches Length
• Horsepower: 1/5 HP
• Shaft Size: 0.5 inches Diameter x 4.15 inches Length
• Bearing Type: Sleeve
• Mounting Type: Extended Stud
• Enclosure Type: Totally Enclosed Air Over
• Service Factor: 1
• Voltage Rating: 208 to 230 Volts
• Amperage Rating: 1.16 Amps
• Application Type: OEM Replacement Motor
• Frequency Rating: 60 Hz
• Insulation Class: Class B
• Special Features: Permanent Split Capacitor Motor
• Country of Origin: Thailand
• Manufacturer Name: Regal Beloit
• Temperature Rating: 40 degrees Celsius
