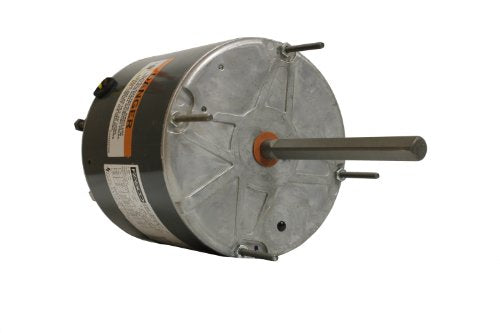

Fasco D2833 Multi-HP, 5.6-Inch Frame Diameter, 3/4 HP, 1075 RPM, 208-230-volt, 3.8-Amp, Sleeve Bearing

Product Description

The Fasco D2833 is a reliable blower motor designed for various applications. This motor operates on single phase with one speed and features reversible rotation. With an open vent design, it ensures optimal airflow for effective cooling and ventilation. The shaft dimensions are one-half inch by five and one-half inches, and the motor length is five and three-quarter inches. This product includes four tapped holes in the shell for easy mounting.

• 5.6-Inch Frame Diameter
• 3/4 HP Power Rating
• 1075 RPM Speed

Product Highlights

The Fasco D2833 is built for performance and durability in home improvement projects.

Product Information

Standard Information

• Manufacturer: Fasco
• Model Number: D2833

Technical Specifications

• Power: 3/4 HP
• Frame Diameter: 5.6 inches
• Speed: 1075 RPM
• Voltage: 208-230 volts
• Current: 3.8 Amps
• Shaft Dimensions: 1/2 x 5-1/2 inches
• Motor Length: 5-3/4 inches
• Mounting: Four tapped holes in shell
