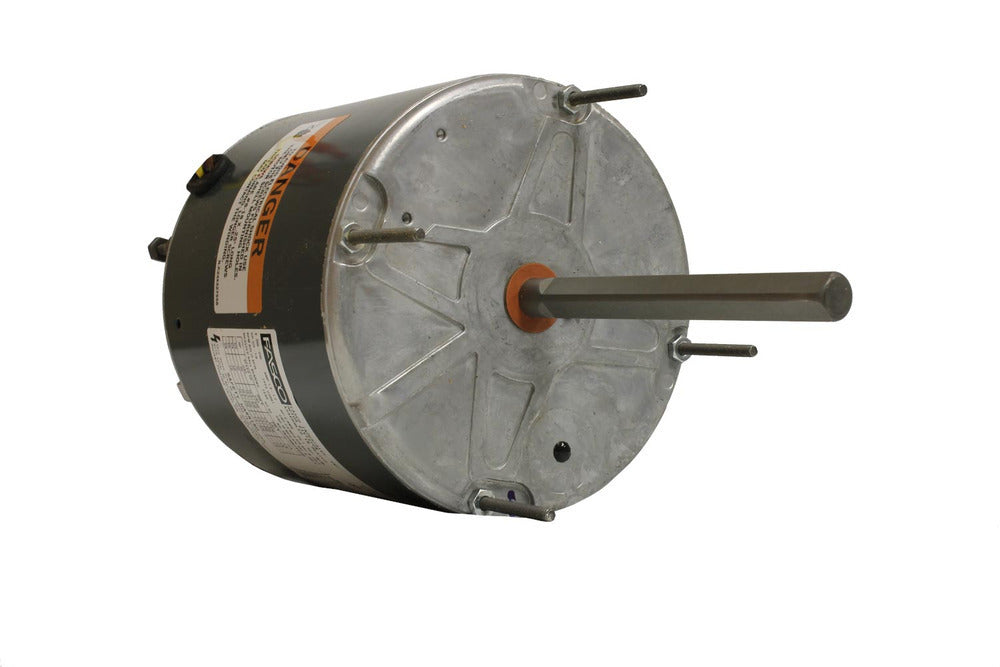

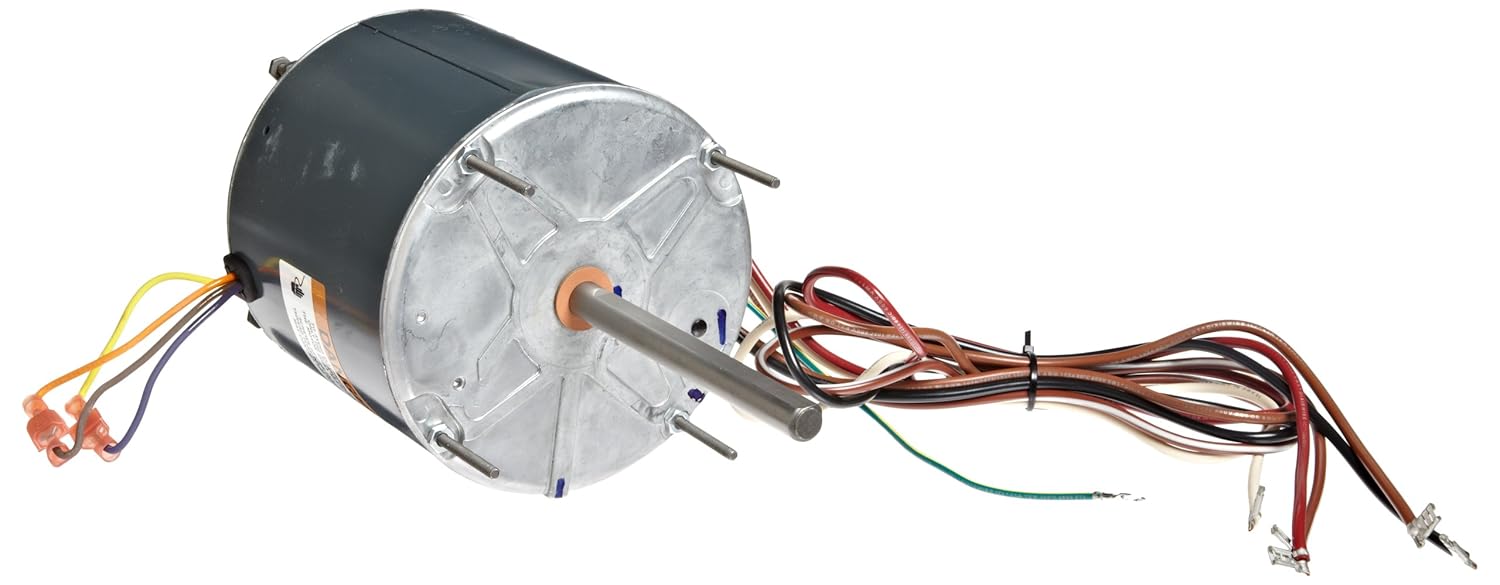

Fasco D2826 Totally Enclosed Permanent Split Capacitor Condenser Fan Motor 1/3 HP 825 RPM 208-230V

Product Description

The Fasco D2826 is a condenser fan motor designed for HVAC applications. This totally enclosed permanent split capacitor motor offers a power rating of one-third horsepower at eight hundred twenty-five RPM. It operates on a voltage range of two hundred eight to two hundred thirty volts with a current draw of 1.9 amps. This motor is suitable for use in a variety of fan applications in residential and commercial settings.

• Durable construction with rolled steel material.
• Thermally protected for enhanced safety.
• Ball bearings ensure smooth operation.

Product Highlights

This motor is perfect for replacement and new installation in HVAC systems. Its reversible rotation feature allows for versatile installation options.

Product Information

Standard Information

• Manufacturer: Fasco Motors
• Model Number: D2826

Technical Specifications

• Frame Size: 48Z
• Diameter: 5.6 inches
• Enclosure Type: Totally Enclosed Air Over
• Phase: Single
• Overload Protection: Thermally Protected
• Mounting Type: Extended Studs
• Shaft Diameter: 0.5 inches
• Operating Frequency: 60 Hz
