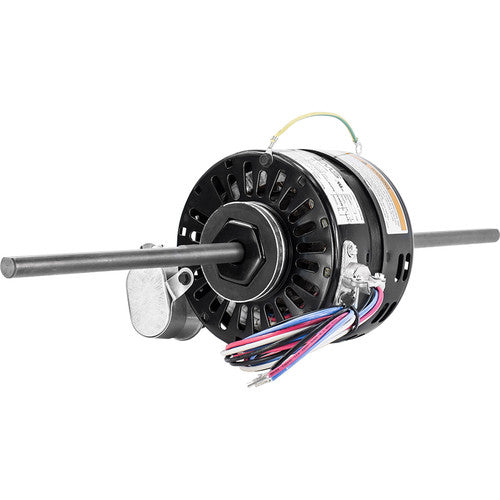

FASCO D277A Fan Coil & Air Conditioner Motor 1/10, 1/12, 1/20 HP

Product Description

The FASCO D277A is a reliable fan coil and air conditioner motor. It operates at 277 V and 60 Hz with a speed of 1050 RPM. This motor is ideal for applications in fan coils, air conditioning, and heating units. It features an open air over enclosure and comes equipped with thermal protection for safety.

• Permanent Split Capacitor; Capacitor Required: 4 Mfd-370 Volts
• 1/2 Inch Diameter Double Shaft with Flat
• Ball Bearings for Smooth Operation

Product Highlights

This motor is built to handle continuous duty and is designed with a 42 frame for easy replacement. The automatic thermal protection prevents overheating, ensuring long-lasting performance.

Product Information

Standard Information

• Brand: FASCO
• MPN: D277A

Technical Specifications

• Phase: 1
• Output HP: 1/10, 1/12, 1/20 Hp
• Voltage: 277 V
• Speed: 1050 RPM
• Service Factor: 1.0
• Frame: 42
• Enclosure: Open Air Over
• Thermal Protection: Automatic
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 0.65, 0.4, 0.3 A
• Duty: Continuous
• Insulation Class: B
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 3
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 6
• Rotation: Clockwise Lead End
• Mounting: Resilient Rings
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Shaft Diameter: 0.500 inches
• Shaft Extension: 8.25 x 0.5 x 8.25 inches
• Frame Length: 4.33 inches
• Packaged Length: 22.88 inches
• Packaged Width: 6.25 inches
• Packaged Height: 6.44 inches
• Mounting Ring Diameter: 2.44 inches
• Motor Length Less Shafts: 3.50 inches
• Height: 16.36 cm
• Length: 58.12 cm
• Width: 15.88 cm
• kW: 0.07 kW
• Rated Current: 0.65, 0.4, 0.3 A
