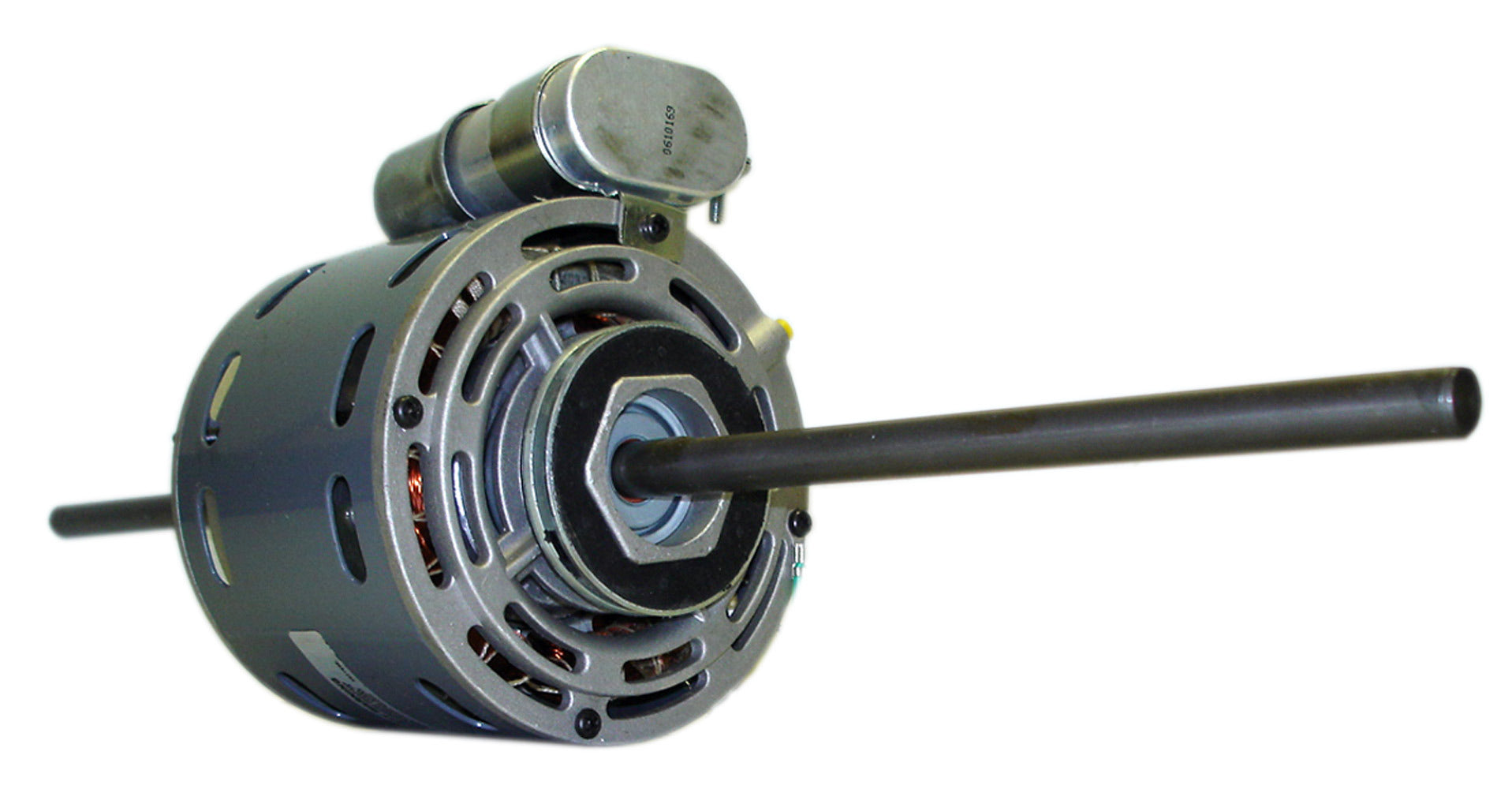

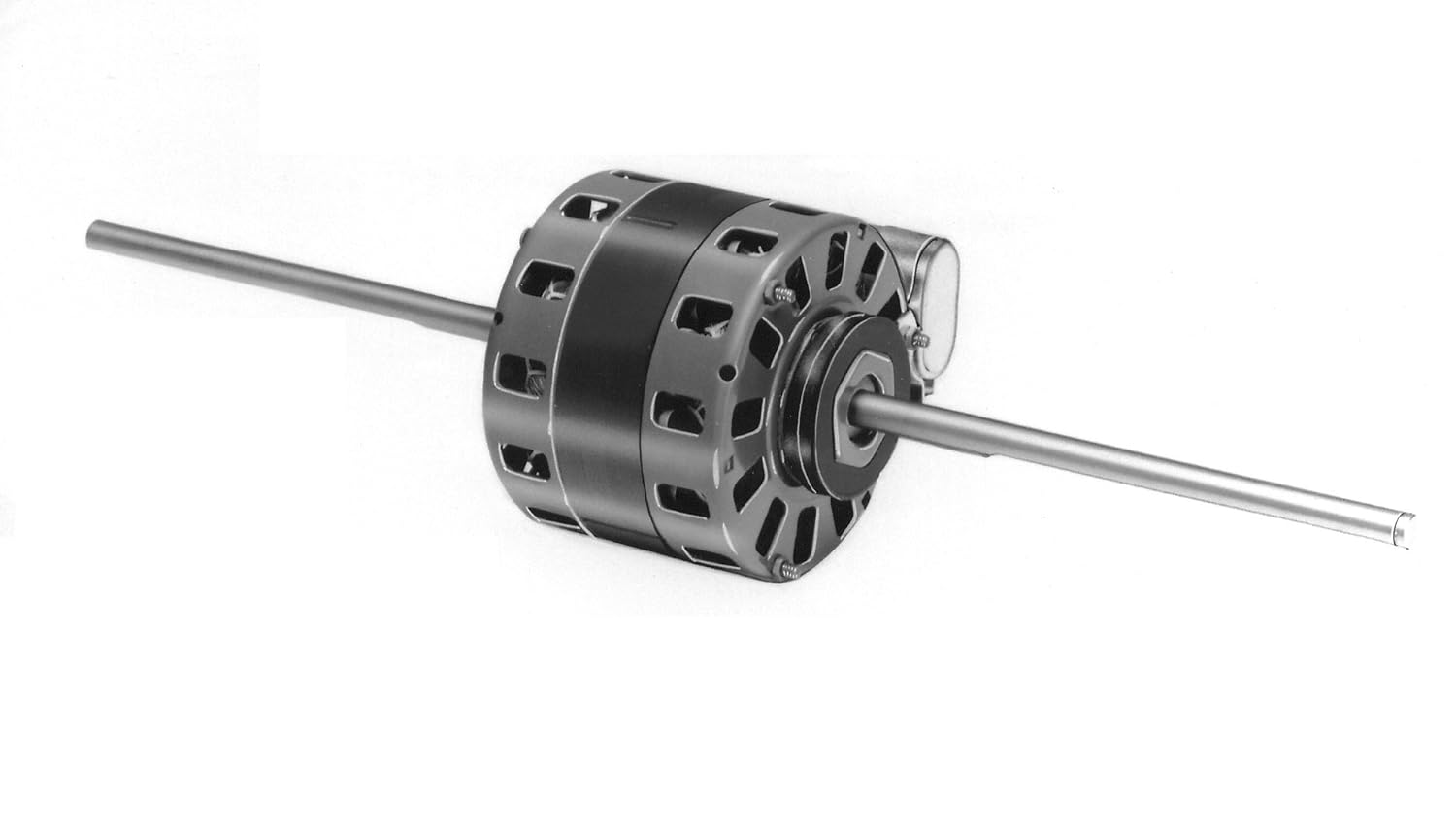

Fasco D277 5 Frame Open Ventilated PSC Fan Coil Air-Conditioning Motor 1/10-1/12-1/20HP 1050rpm 277V

Product Description

The Fasco D277 Fan Coil Air-Conditioning Motor is designed for HVAC applications. This motor, with MPN D277, features permanent split capacitor technology and an open ventilated design. Suitable for air-conditioning and heating units, it operates at 1050 RPM with multiple horsepower options.

• Thermally protected
• Interchangeable with most fan coil air-conditioning or heating units
• Includes 4 Mfd 370V capacitor

Product Highlights

Ideal for HVAC-R applications, this motor is thermally protected with automatic reset and features a flat double shaft. It includes a capacitor and is designed with ball bearings for smooth operation.

Product Information

Standard Information

• Brand: Fasco
• MPN: D277
• Manufacturer: Fasco Motors
• Item Weight: 11.4 pounds
• Package Dimensions: 22.5 x 6.5 x 5.5 inches
• Country of Origin: Mexico

Technical Specifications

• Horsepower: 1/10-1/12-1/20 HP
• Speed: 1050 RPM
• Voltage: 277 V
• Amperage: 0.7/0.5/0.4 A
• Frame Size: 42
• Shaft Diameter: 0.5 inches
• Shaft Length: 8.5 inches
• Insulation Class: B
• Thermal Protection: Automatic
