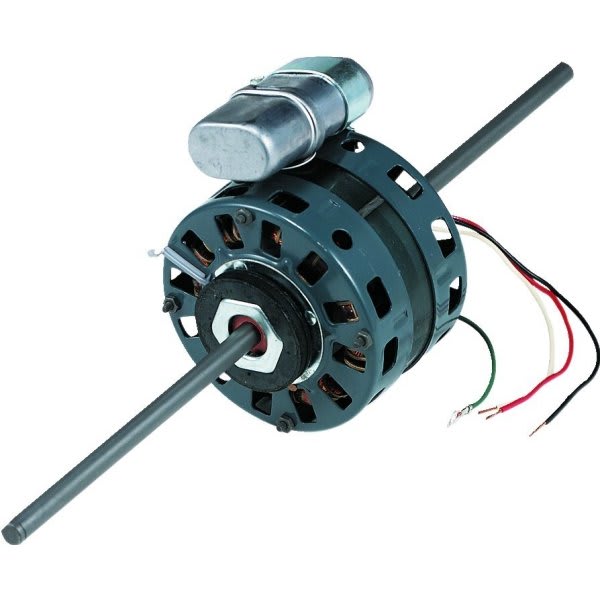

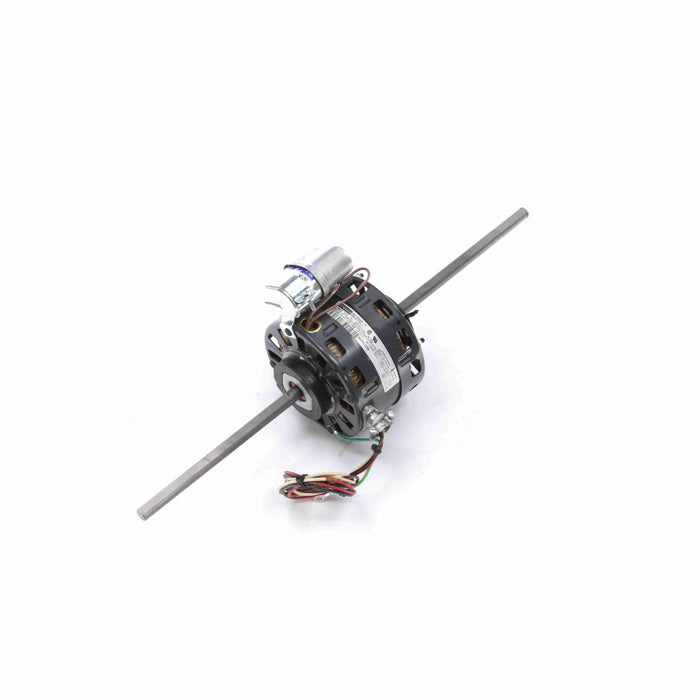

FASCO D258A Fan Coil & Air Conditioner Motor 1/5,1/10 HP

Product Description

The FASCO D258A is a fan coil and air conditioner motor designed for reliability and efficiency. Operating at 208-230 V and 60 Hz, this motor provides power of 1/5 to 1/10 horsepower with speeds reaching 1550 RPM. It includes a thermal protection feature and operates in an open air over enclosure.

• Two speed options for adaptability
• Permanent split capacitor design for efficient energy usage
• Ball bearings ensure durability and smooth operation

Product Highlights

This motor is suitable for various applications in heating and cooling systems.

Product Information

Standard Information

• Brand: FASCO
• MPN: D258A

Technical Specifications

• Phase: 1
• Output HP: 1/5, 1/10 HP
• Voltage: 208-230 V
• Speed: 1550 RPM
• Service Factor: 1.0
• Frame: 42
• Enclosure: Open Air Over
• Thermal Protection: Automatic
• Efficiency: 32%
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 2.8, 1.3 A
• Duty: Continuous
• Insulation Class: B
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 2
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 4
• Rotation: Counterclockwise Lead End
• Mounting: Resilient Rings
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Frame Length: 3.83 inches
• Shaft Diameter: 0.500 inches
• Shaft Length: 8 inches
• Motor Diameter: 5 inches
• Capacitor: 5 MFD/370 VAC (Included)
• Enclosure Type: Open Air Over
• Product Type: Permanent Split Capacitor
• RPM: 1550
• Amperage: 2.8 amp
• Material: Copper
• Number of Phases: 1
• Package Quantity: 1
• Motor Design: Permanent Split Capacitor
• Motor Enclosure Design: Open Air-Over
• Motor Mounting Type: Resilient Ring
• Motor Shaft Rotation: Counterclockwise Lead End
