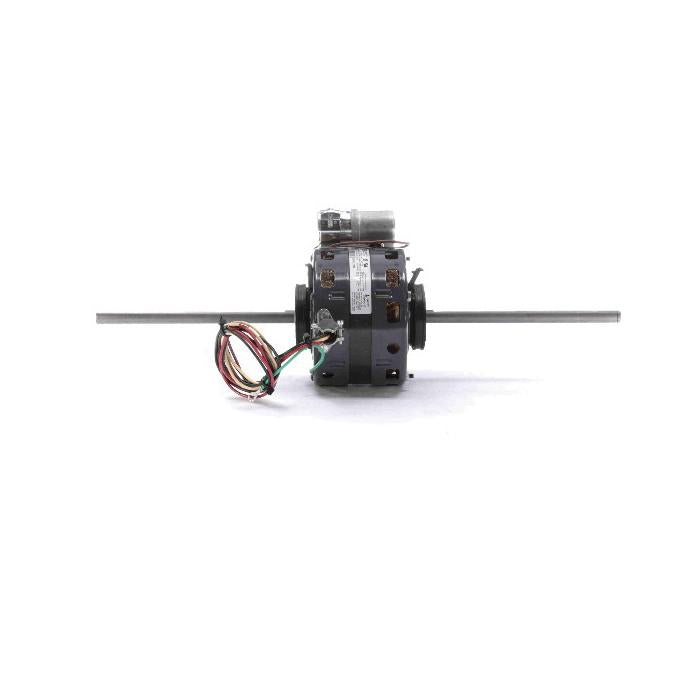

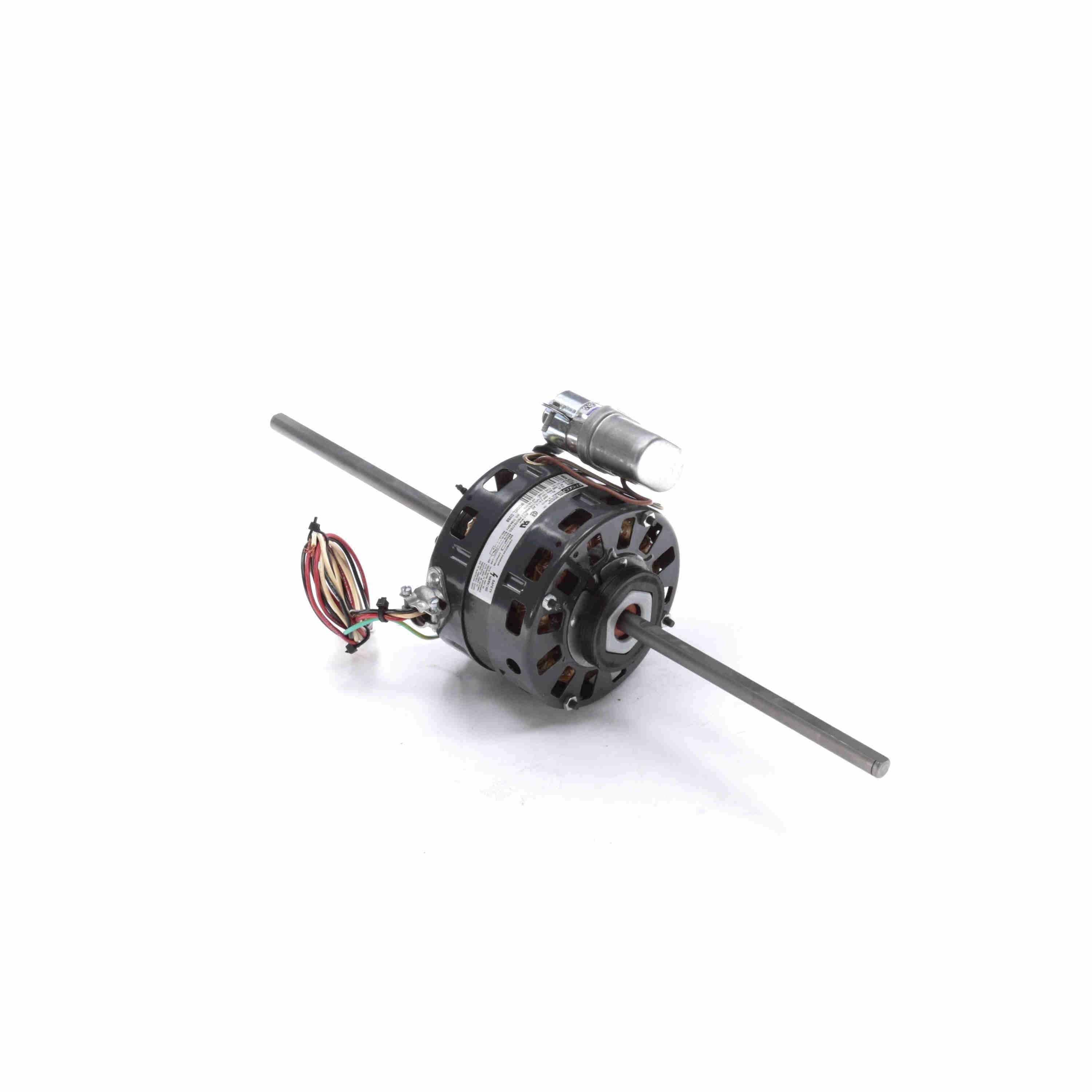

Fasco D258 Fan Coil / Air Conditioner Motor 1/5-1/10 hp 208/230 V

Product Description

The Fasco D258 is a 4-pole continuous duty HVAC/R motor. It is suitable for fan coil and room air conditioner applications. This motor operates at 208/230 volts, has a horsepower range of 1/5 to 1/10 hp, and runs at a speed of 1550 rpm.

• Permanent split capacitor motor for efficient performance
• Totally enclosed design for durability
• Resilient ring mounting for easy installation

Product Highlights

The Fasco D258 is ideal for HVAC systems, offering reliability and consistent operation. With a robust structure, this motor can work in various conditions while maintaining its functionality and efficiency.

Product Information

Standard Information

• Brand: Fasco
• MPN: D258

Technical Specifications

• Frame Size: 42
• Voltage Rating: 208/230 V
• Amperage Rating: 2.8/1.3 A
• Frequency Rating: 60 Hz
• Speed: 1550 rpm
• Horsepower: 1/5 to 1/10 hp
• Shaft Size: 1/2 in Dia x 8 in L
• Mounting Type: Resilient Ring
• Enclosure Type: Totally Enclosed
• Service Factor: 1
• Insulation Class: Class B
• Temperature Rating: 40 deg C
