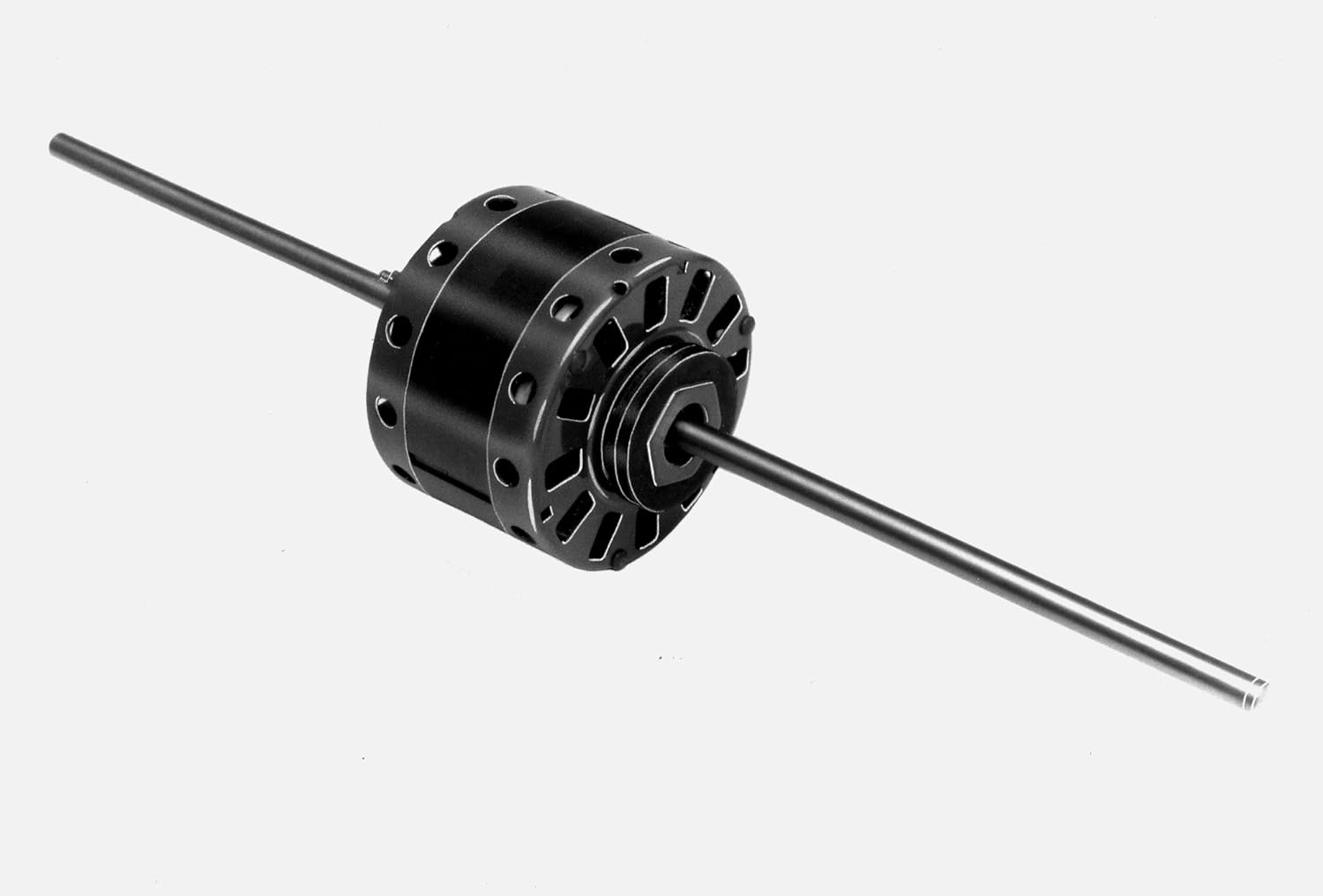

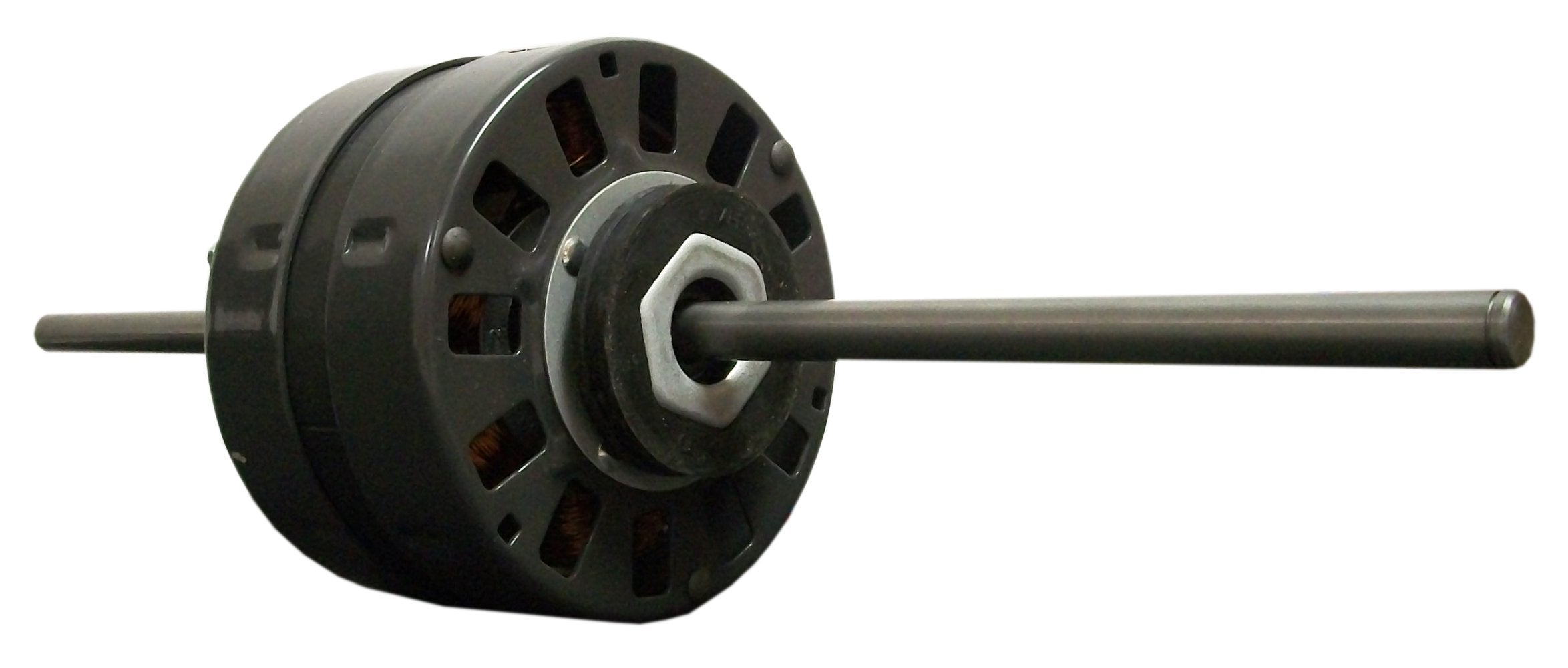

Fasco D247 Fan Coil 1/6 HP 1550 RPM 230 Volts

Product Description

The Fasco D247 is a reliable fan coil and air conditioner motor designed for efficient performance in HVAC systems. This motor operates at one-sixth horsepower and features a speed of one thousand five hundred fifty RPM, making it suitable for various applications in heating and cooling.

• Operating Voltage: 230 Volts
• Frame Diameter: 5.0 inches
• Multi-speed capability with permanent split capacitor design

Product Highlights

The Fasco D247 provides a robust solution for fan coil and air conditioning systems, ensuring proper airflow and temperature control.

Product Information

Standard Information

• Motor Type: Fan Coil / Air Conditioner
• Horsepower: 0.16 hp

Technical Specifications

• Speed: 1550 RPM
• Voltage: 230 Volts
• Frame Size: 42
• Electrical Type: Permanent Split Capacitor
• Rotation: Counterclockwise Lead End
• Amperage: 1.0/0.7/0.5
• Shaft Diameter: 0.5 inches
• Bearings Type: Sleeve
• Ambient Temperature Rating: 40°C
• Insulation Class: B
