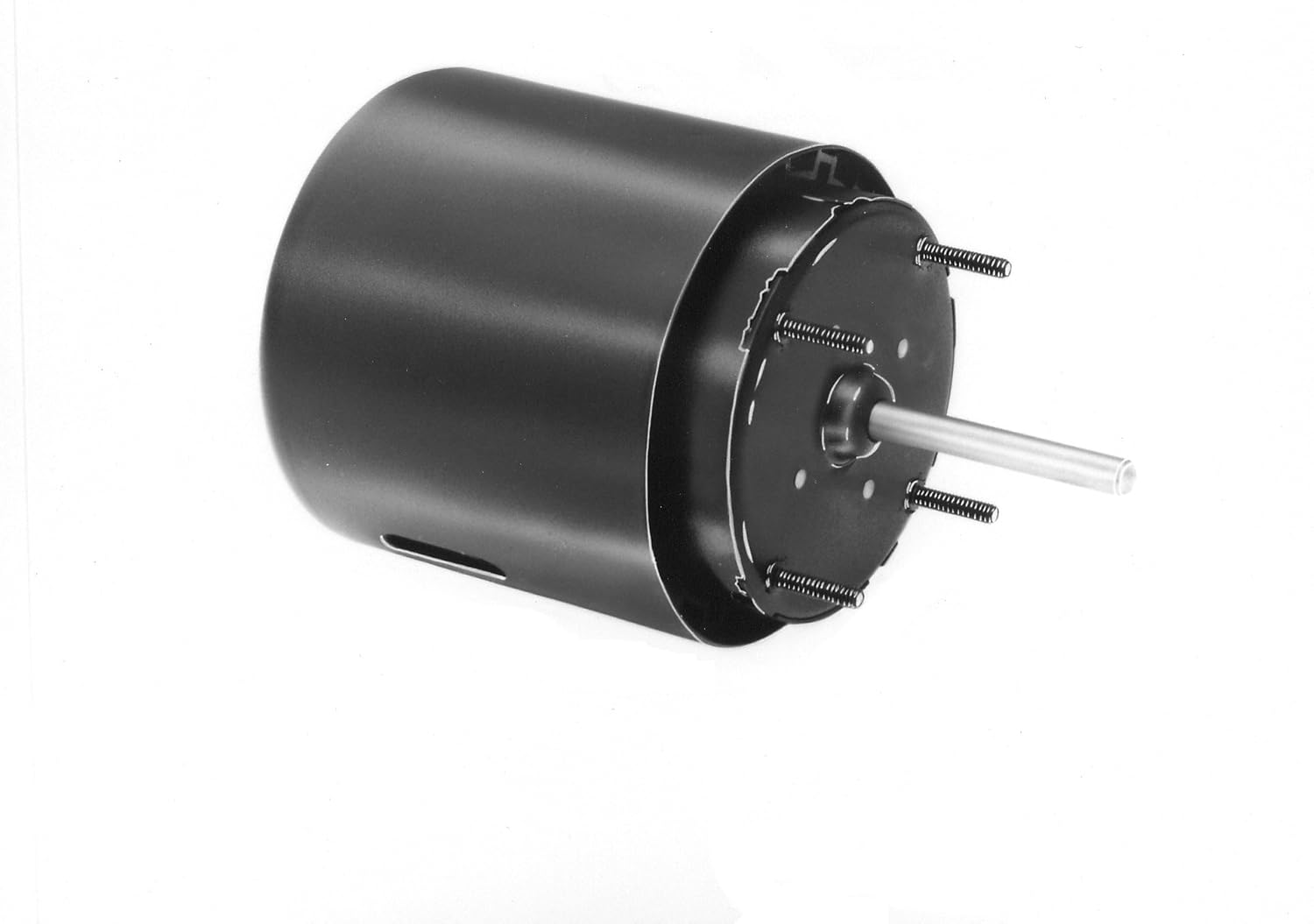

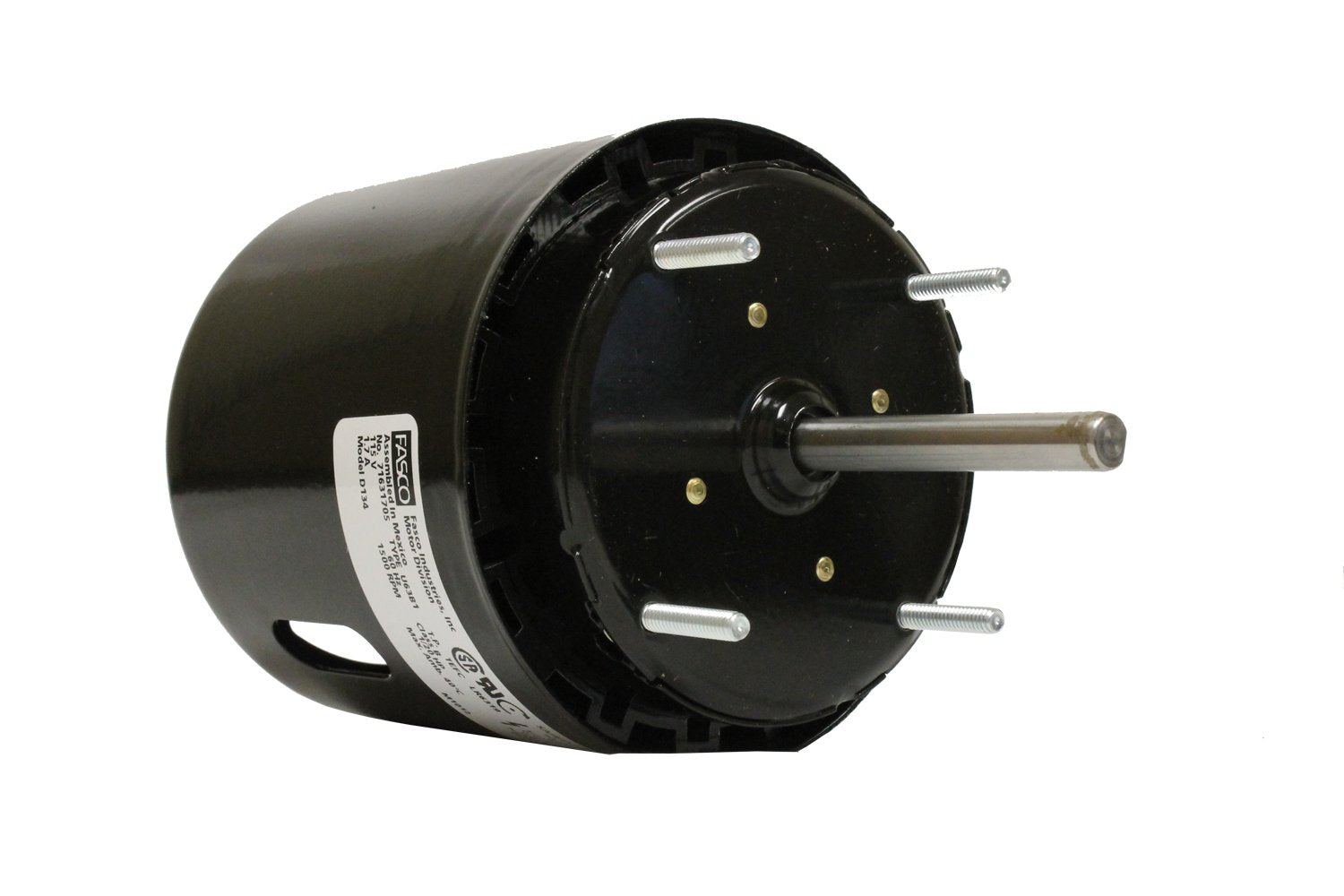

Fasco D227 1/20 HP 1500 RPM 115 Volt Fan Motor

Product Description

The Fasco D227 is a reliable fan and blower motor with a power rating of one-twentieth horsepower and speeds of one thousand five hundred RPM. This model operates on one hundred fifteen volts and has a frame diameter of three point three inches. With counterclockwise rotation, this motor is particularly suited for applications requiring a shaded pole motor with low energy consumption.

• Single-phase construction
• Low voltage operation of one hundred fifteen volts
• Totally enclosed design for improved safety

Product Highlights

The Fasco D227 motor is designed for general purpose use, featuring thermally protected components to ensure reliability in operation. Its sturdy design allows for easy installation in various heating, ventilation, and air conditioning systems.

Product Information

Standard Information

• Brand: Fasco
• MPN: D227

Technical Specifications

• Horsepower: 1/20
• RPM: 1500
• Voltage: 115
• Frame Diameter: 3.3 inches
• Rotation: Counterclockwise
• Amperage: 1.8
• Shaft Type: Flat
• Bearings Type: Ball
• Mounting Type: Extended studs
