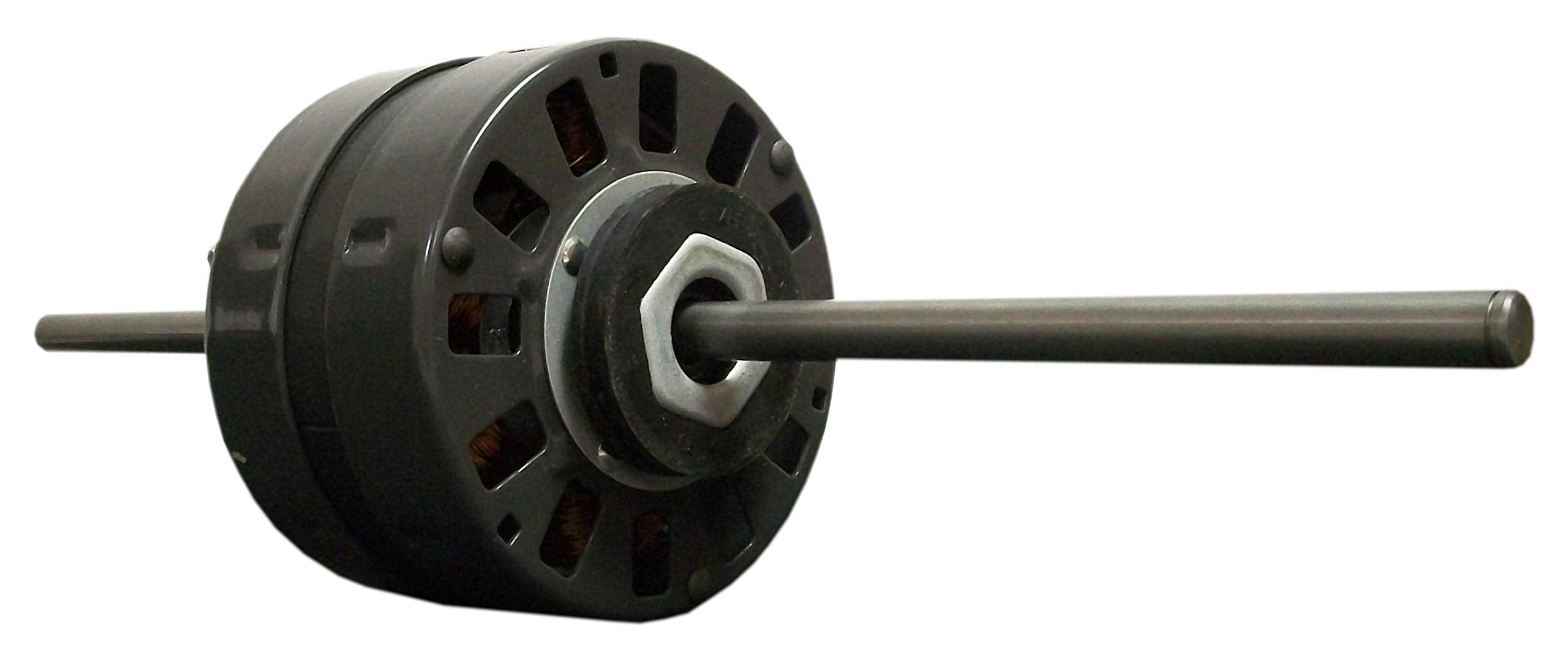

Fasco D224 Motor 1/6 1/8 1/12 HP 230V 1050RPM

Product Description

The Fasco D224 motor is designed to provide reliable performance in HVAC applications. This motor operates at 1/6, 1/8, and 1/12 horsepower, making it versatile for various uses. It runs on a 230V power supply and achieves a rotational speed of 1050 revolutions per minute.

• Suitable for air conditioning units
• Shaded pole motor design
• Automatic thermal protection

Product Highlights

This HVAC motor is perfect for fan coil and room air conditioner applications. It features a resilient ring mounting type, ensuring stable operation in various settings.

Product Information

Standard Information

• Brand: Fasco
• MPN: D224

Technical Specifications

• HP: 1/6, 1/8, 1/12 HP
• Voltage: 230V
• RPM: 1050 rpm
• Phase: 1
• Duty: Air Over
• Standards: UL Recognized, CSA Certified
• Ins. Class: A
• Shaft Diameter: 1/2 inch
• Shaft Length: 10 inches
• Full Load Amps: 3.2/2.3/1.8A
• Overall Length: 23.45 inches
• Max Ambient Temp: 40 Degrees C
• Motor Mounting Type: Resilient Rings
• Motor Shaft Rotation: Clockwise Shaft End
• Manufacturer Warranty Length: 1 year
• Country of Origin: Mexico
