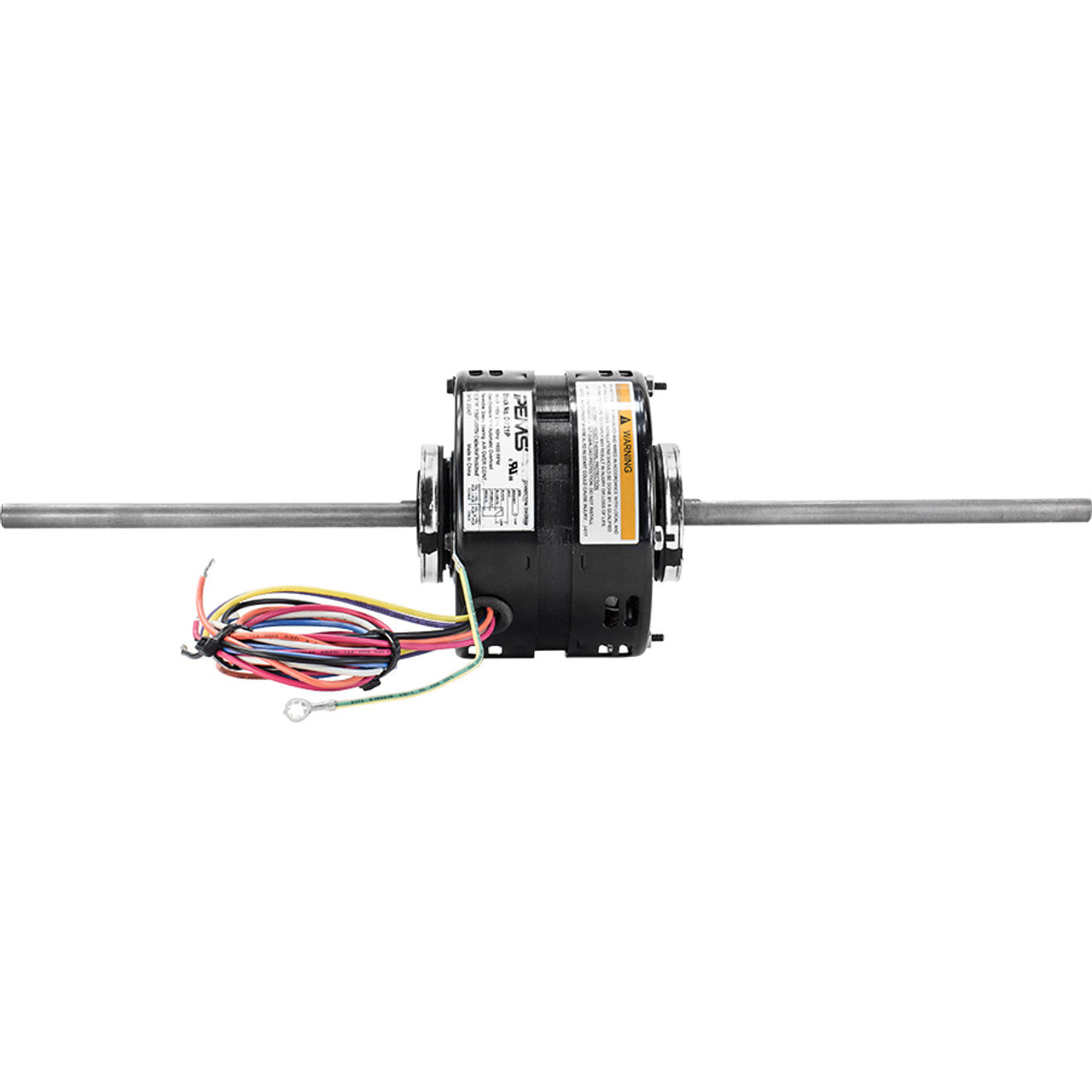

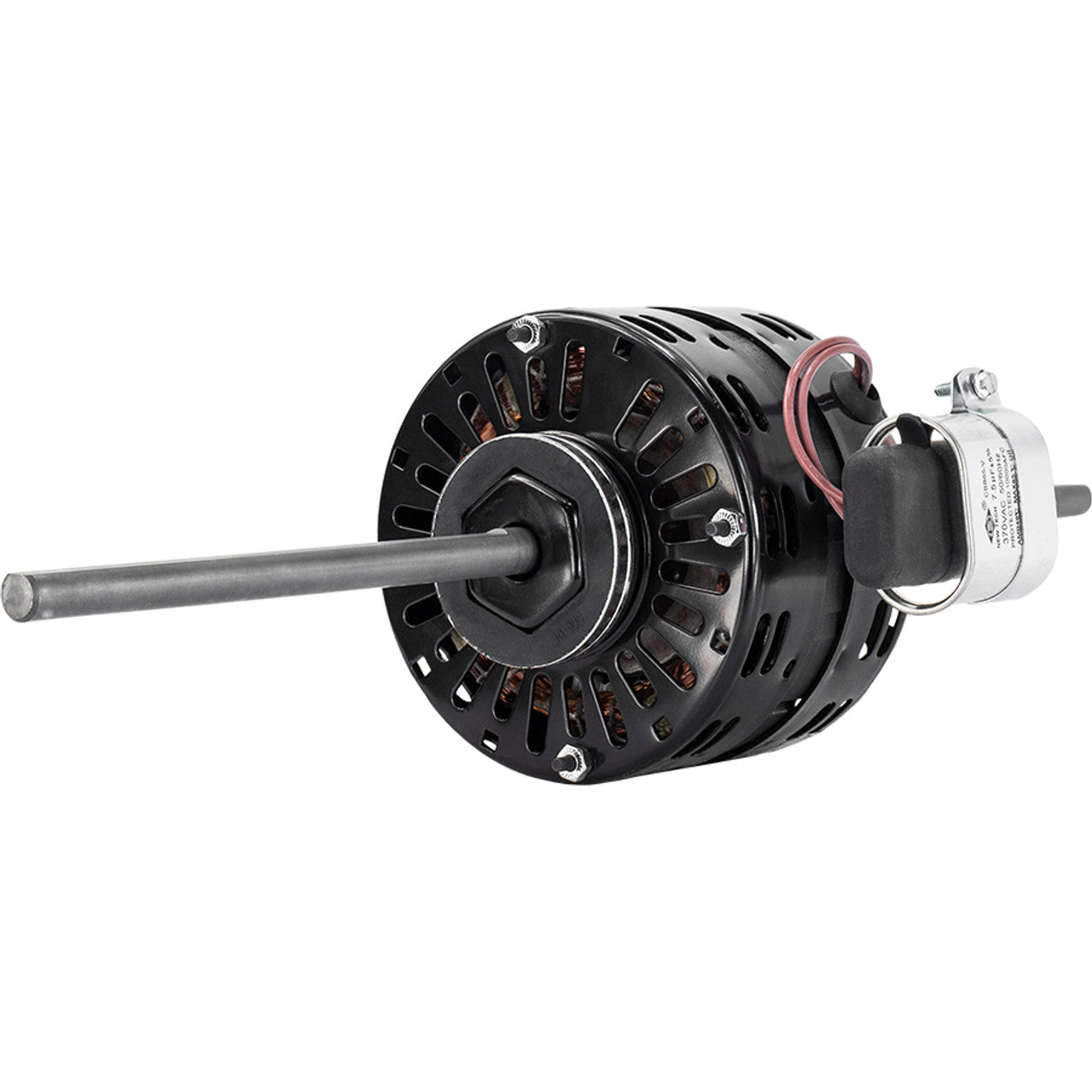

FASCO D221A Fan Coil Air Conditioning/Heating Unit Motor

Product Description

The FASCO D221A is a PSC motor used in fan coil air conditioning and heating units. This motor is suitable for hotels, motels, offices, and hospitals with central systems that pump hot or cold water to console-type room units.

• Multi-speed operation for flexible performance.
• Includes capacitor for easy setup.
• Designed with a double shaft for versatile installation.

Product Highlights

This motor offers reliable and efficient performance in a compact design.

Product Information

Standard Information

• Manufacturer Part Number: D221A
• Country of Origin: Mexico

Technical Specifications

• Horsepower: 1/6-1/12 HP
• Speed: 1550 RPM
• Input Voltage: 115 V
• Frequency: 60 Hz
• Full Load Amps: 3.20 A
• Motor Diameter: 5 inches
• NEMA Frame: 42
• Enclosure: Open
• Mounting Type: Resilient
• Bearings: Sleeve
• Shaft Diameter: 1/2 inches
• Shaft Length: 8.13 inches
• Rotation: Double Shaft
• Motor Type: PSC
• Weight: 8.8 lbs
• Certification: UR/CSA
• Ambient Operating Temperature: 40 °C
• Efficiency: 65%
• Current: 3.44, 1.9, 1.48, 1.3 A
• Electrical Type: Permanent Split Capacitor
• Protection: Thermally Protected
