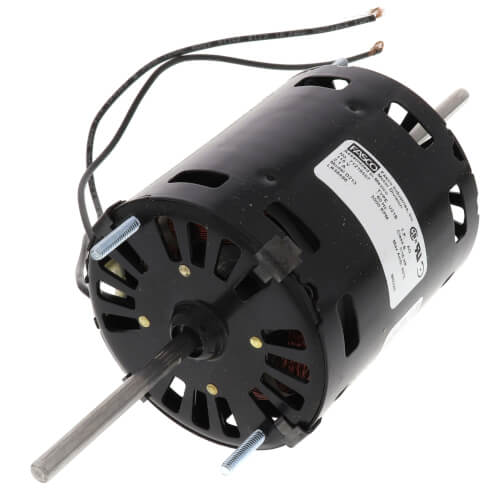

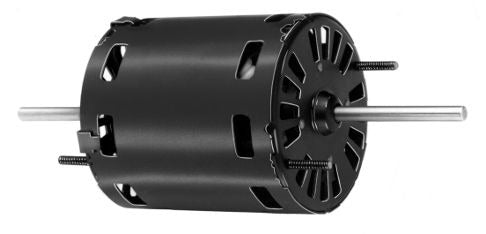

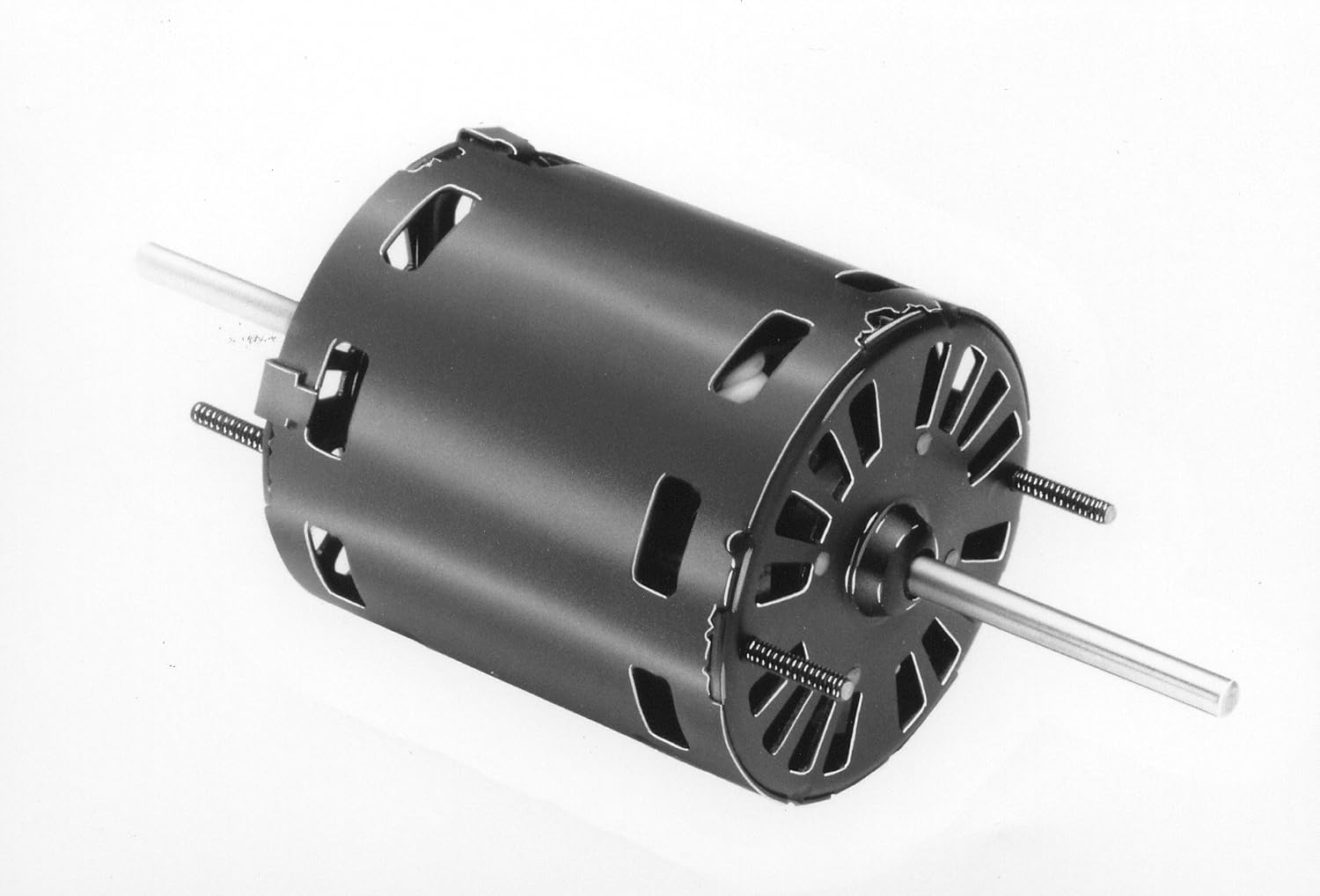

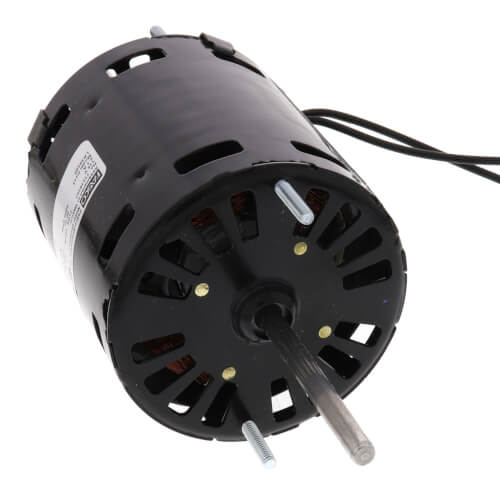

Fasco D213 Motor 1/16 HP 3000 RPM 115V

Product Description

The Fasco D213 Motor offers reliable performance for various fan and blower applications, operating at 3000 RPM. Designed for HVAC systems, this 1/16 HP motor is built to last with its thermally protected mechanism.

• 3.3-inch frame diameter
• 1/16 HP power
• 3000 RPM speed

Product Highlights

This motor features a shaded pole design for efficient thermal protection, making it suitable for continuous-duty applications. Extended studs ensure easy mounting, and its sleeve bearings provide smooth operation.

Product Information

Standard Information

• Brand: Fasco
• Model: D213

Technical Specifications

• Power: 1/16 HP
• Speed: 3000 RPM
• Voltage: 115 Volts
• Current: 2.1 Amps
• Frame Diameter: 3.3 inches
• Enclosure: Open Air Over
• Bearings: Sleeve
• Mounting: Extended Studs
• Shaft Diameter: 0.25 inches
• Rotation: Counterclockwise Shaft End
• Ambient Temperature: 40 Degrees C
• Insulation Class: B
