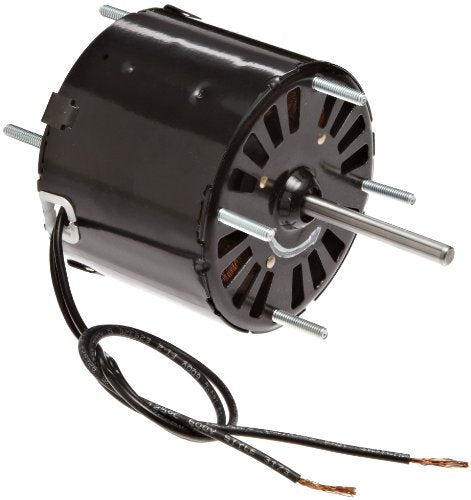

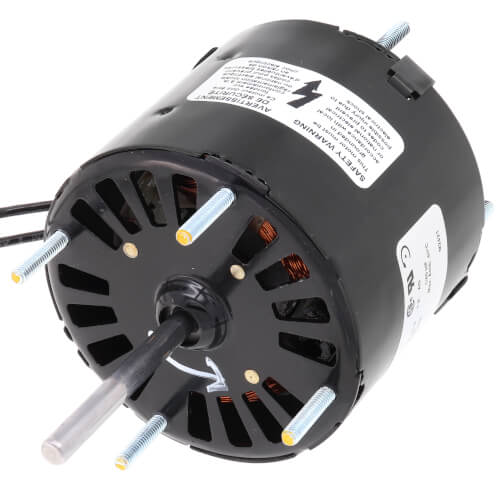

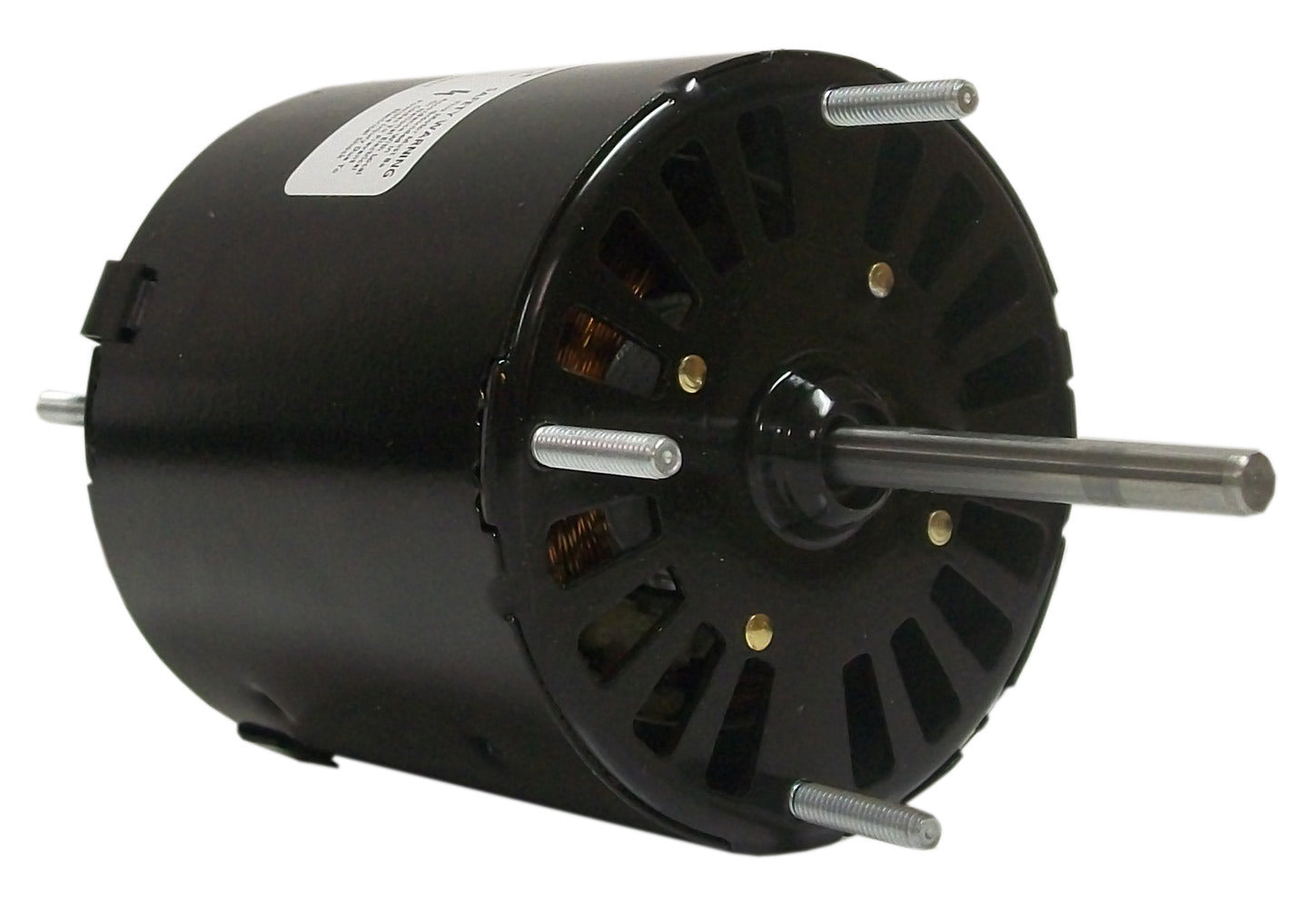

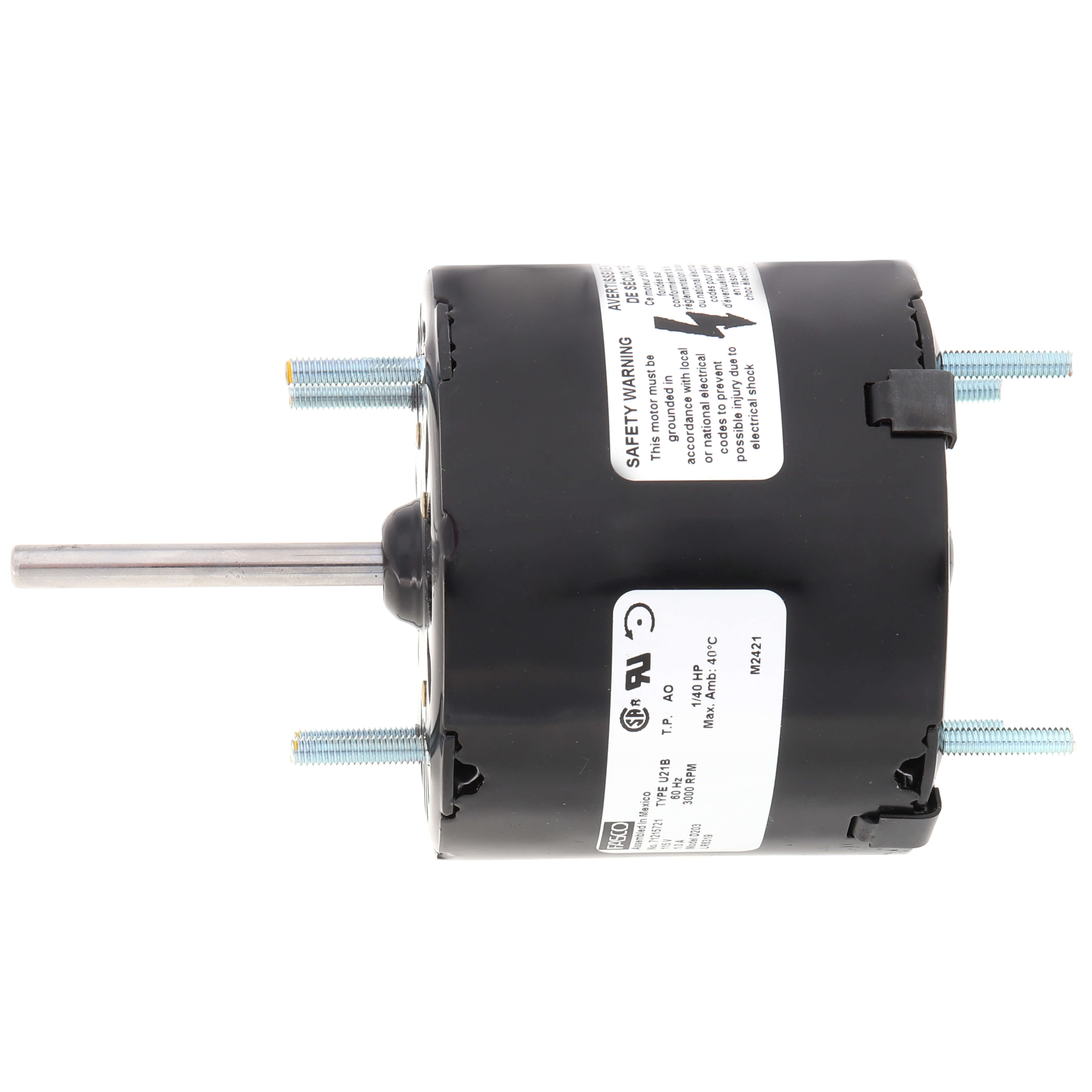

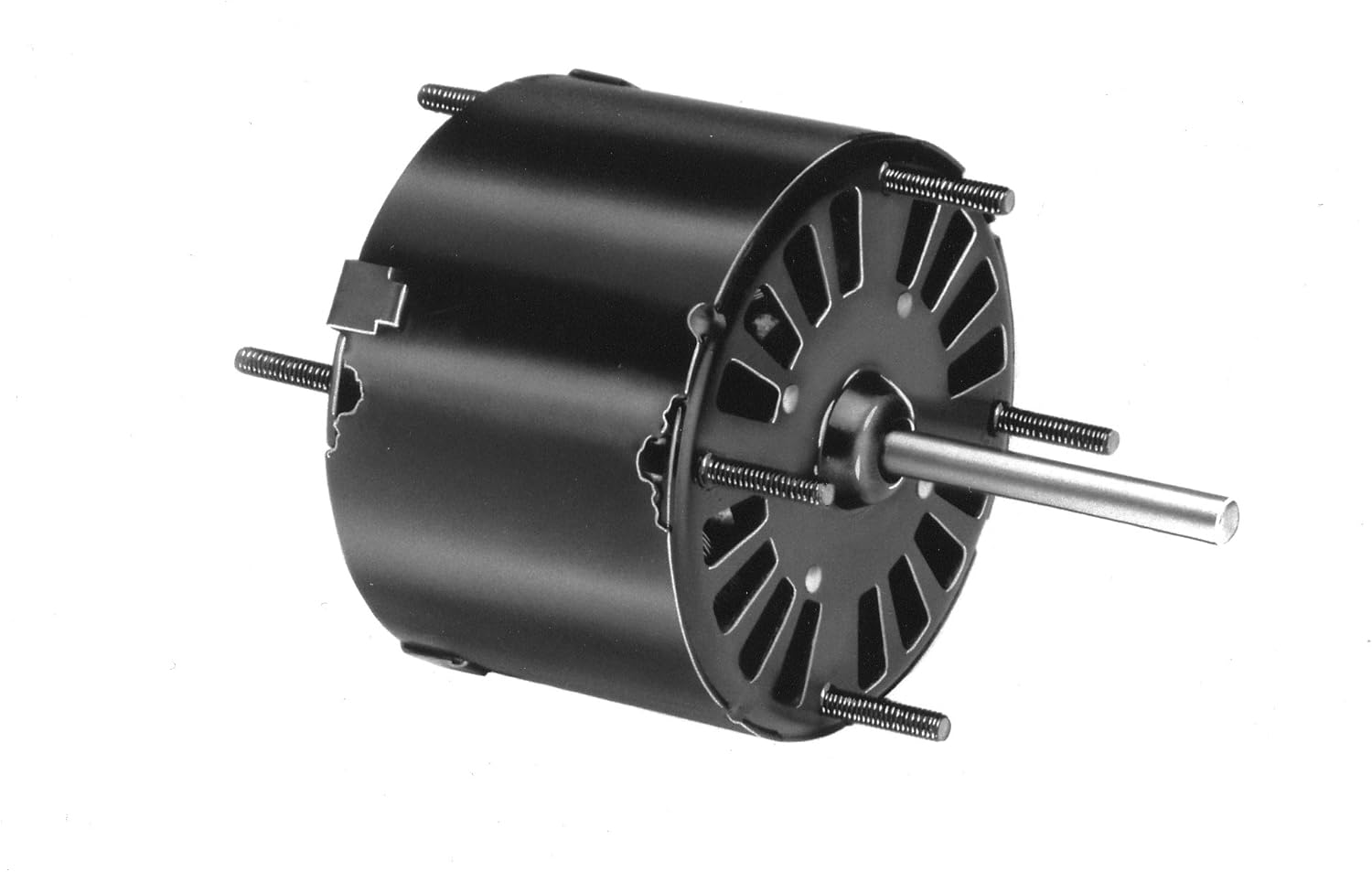

Fasco D203 Fan and Blower Motor 1/40HP 3000 RPM 115 V

Product Description

The Fasco D203 is a shaded pole fan and blower motor with a frame size of 3.3 inches. It runs at 3000 RPM and is powered by 115 volts. The motor is designed with sleeve bearings and features an open ventilated enclosure.

• 1/40 HP shaded pole motor
• Thermally protected
• 2.25 inch shaft length

Product Highlights

Reliable, thermally protected fan motor ideal for various HVAC applications. Suitable for single-phase setups with an automatic overload feature.

Product Information

Standard Information

• Brand: Fasco
• Reference ID: FASCOD203
• MPN: D203
• Category: Fan Motors

Technical Specifications

• Horsepower: 1/40
• RPM: 3000
• Voltage: 115 V
• Bearings: Sleeve
• Amperage: 1.0
• Shaft Diameter: 0.25 inches
• Shaft Extension: 2.25 inches
• Insulation Class: B
• Frequency: 60 Hz
• Phase: Single
• Enclosure: Open Air Over
• Material: Steel
• Rotation: Counterclockwise Shaft End
• Mounting: Extended Studs
• Overload Protection: Thermally Protected
• Ambient Temperature: 40 degrees Celsius
