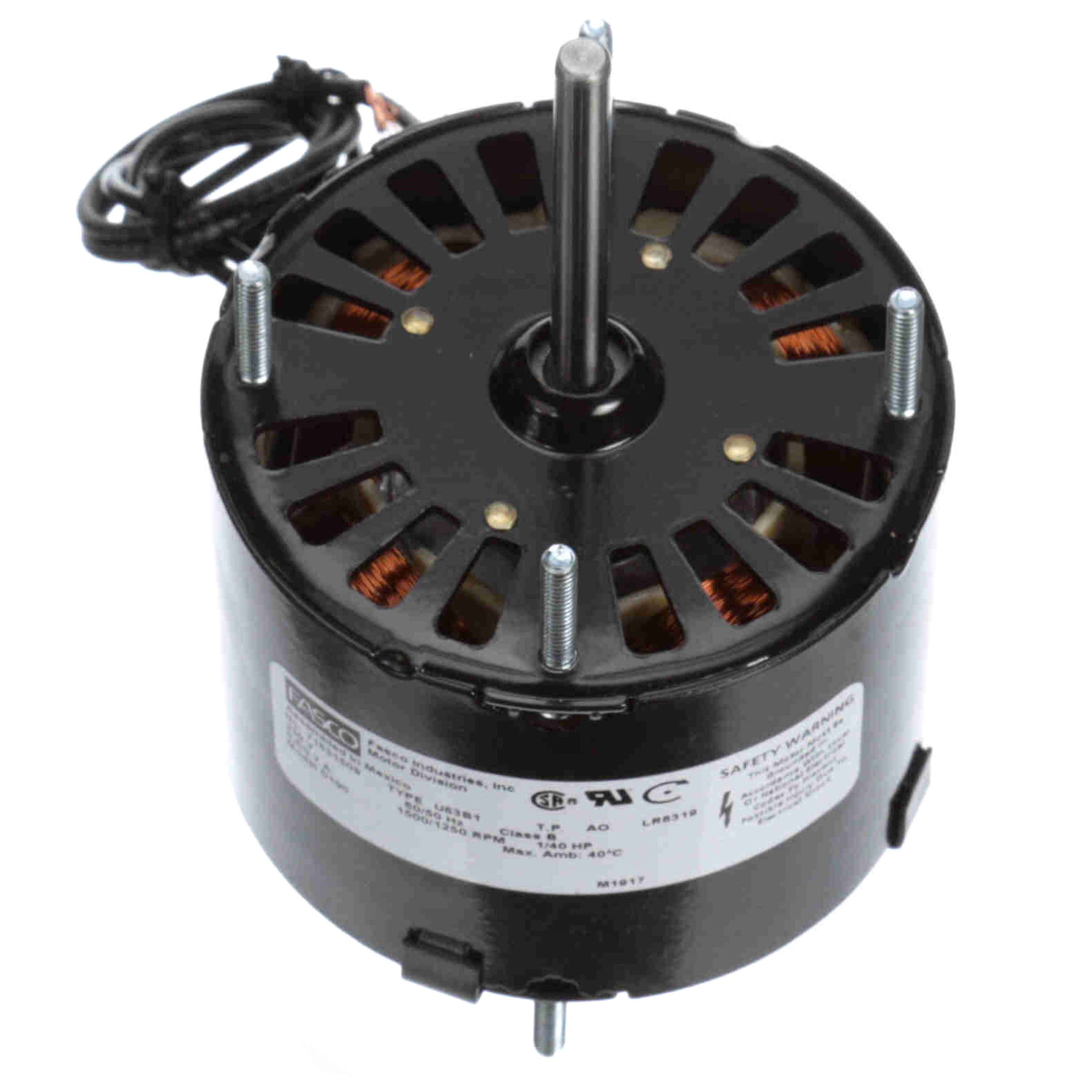

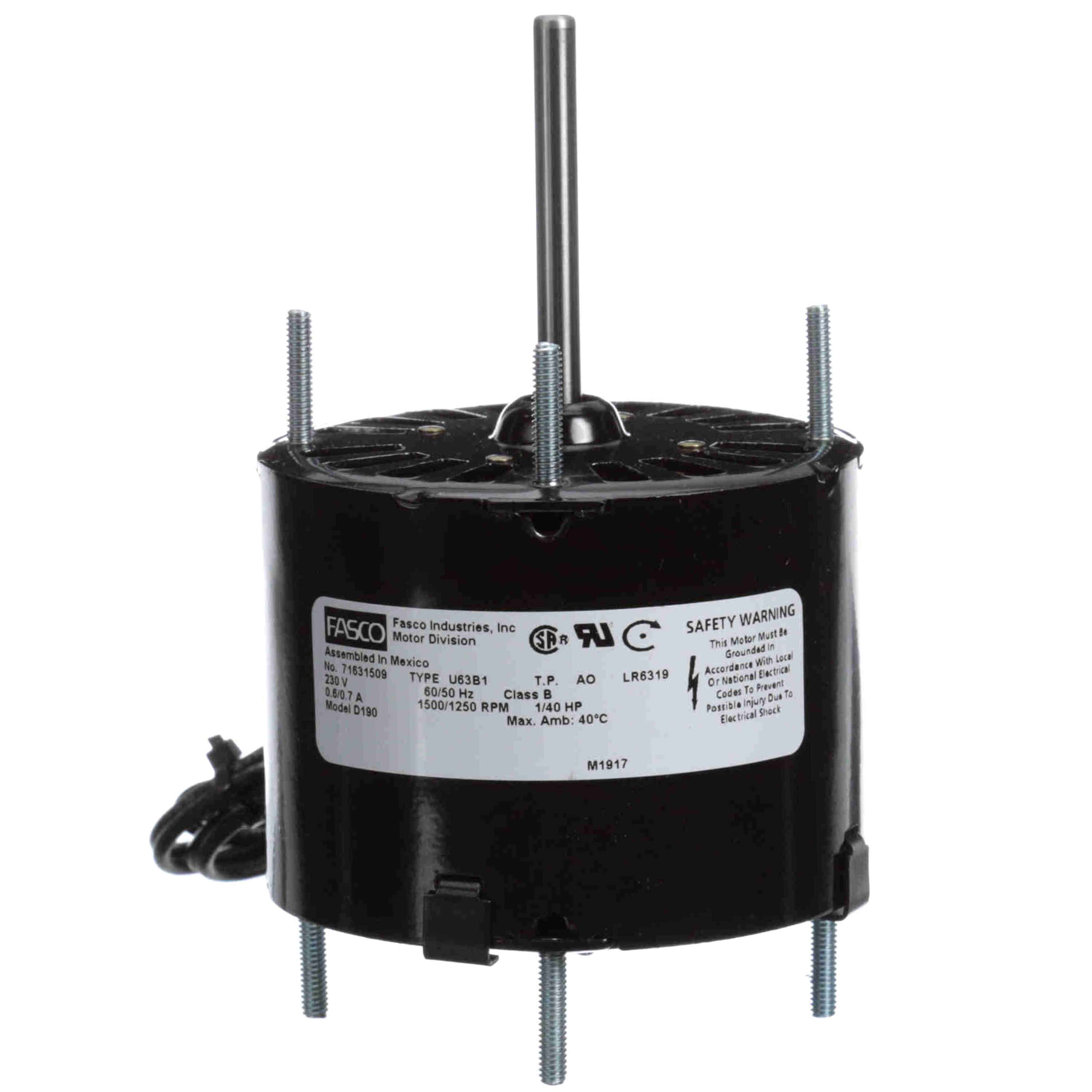

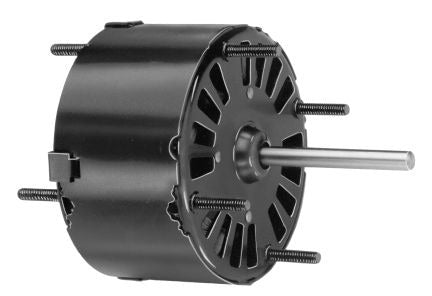

Fasco D190 HVAC 3.3 Inch Motor 1/40 HP 230V CW

Product Description

The Fasco D190 HVAC motor is designed with a 3.3-inch frame diameter and a power rating of 1/40 HP at 230 volts. This motor operates at a speed of 1500 RPM in a clockwise rotation. It features a sleeve bearing, thermally protected design, and is suitable for various HVAC applications.

• 3.3-inch frame diameter
• 230 volts
• 1/40 HP

Product Highlights

This HVAC motor from Fasco is efficient for direct drive blower applications. It offers single-phase operation and is compatible with various HVAC systems requiring a 230-volt motor with 1500 RPM speed.

Product Information

Standard Information

• Brand: Fasco
• MPN: D190

Technical Specifications

• Frame Diameter: 3.3 inches
• Horsepower: 1/40 HP
• Speed: 1500 RPM
• Voltage: 230 volts
• Amperage: 0.60/0.70
• Bearing Type: Sleeve
• Rotation: Clockwise Shaft End (CWSE)
• Enclosure: Open Air Over
• Insulation Class: B
• Mounting Type: Extended Studs
• Duty: Air Over
• Thermal Protection: Thermally Protected
• Weight: 2.8 pounds
• Dimensions: 7.25 x 2.75 x 2.75 inches
• Ambient Temperature: 40 degrees Celsius
