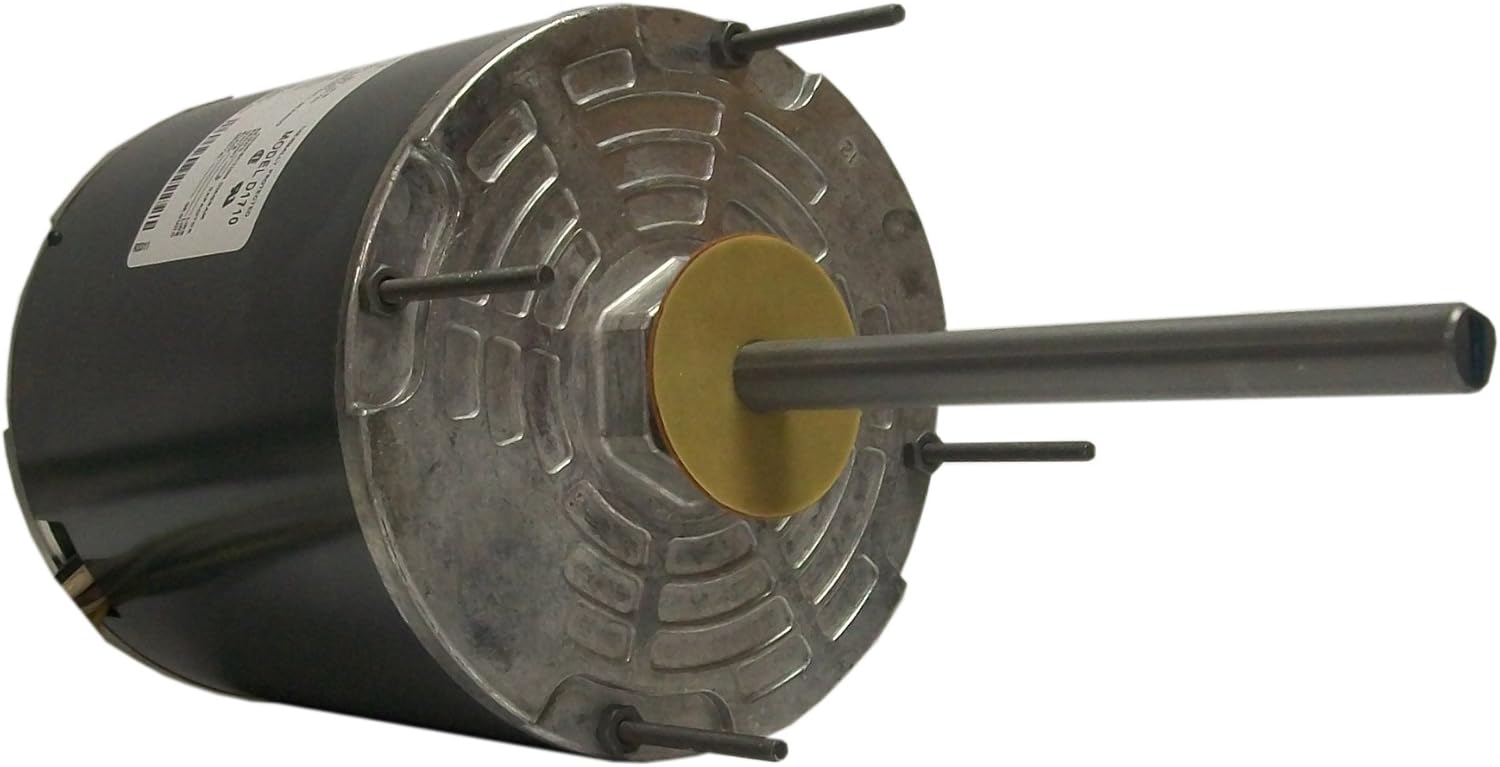

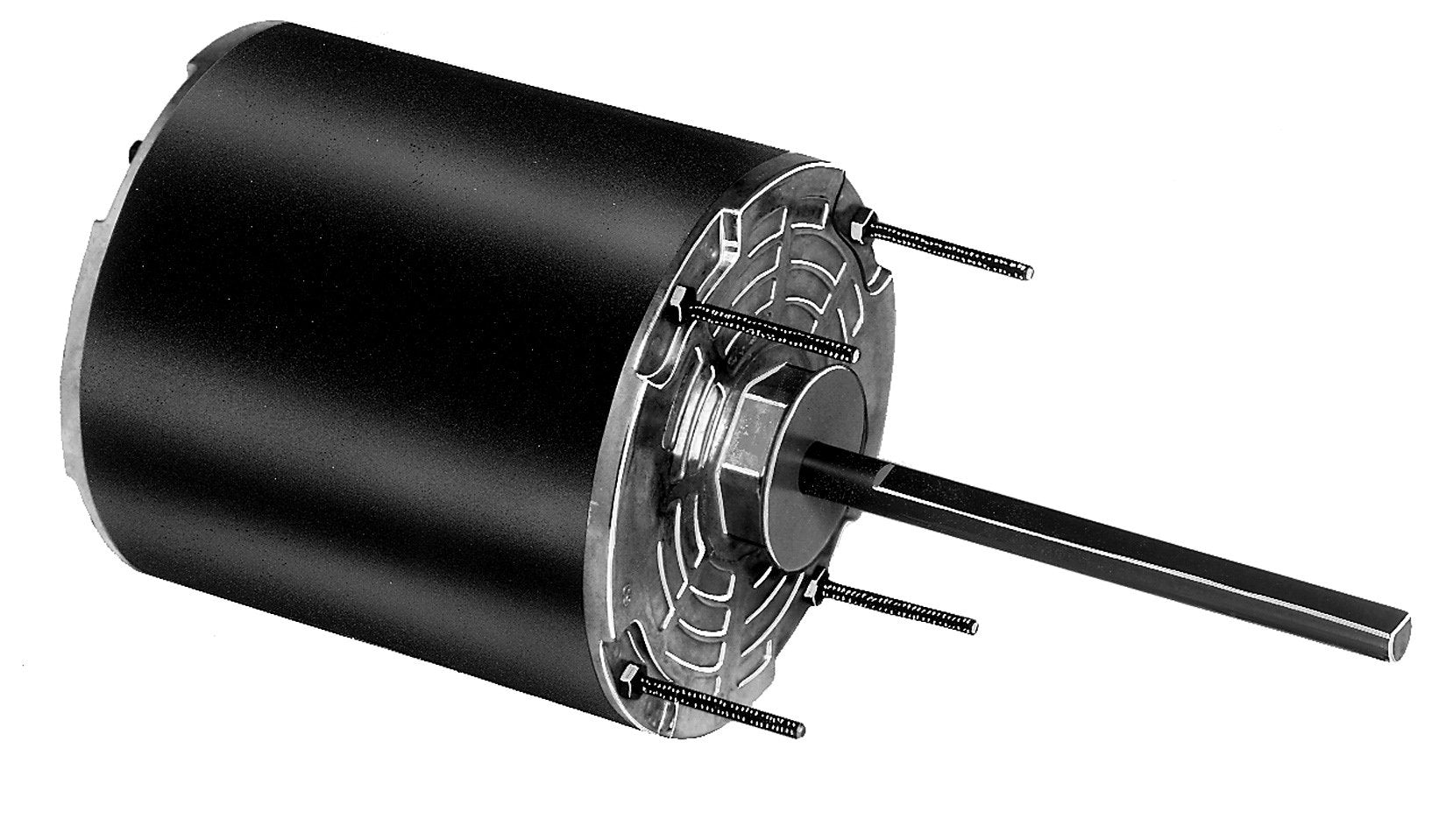

Fasco D1710 Condenser Fan Motor 1 HP 460 Volts 1075 RPM 3 Amps

Product Description

The Fasco D1710 condenser fan motor comes with a 5.6-inch frame. With a power rating of 1 HP and operating at 460 volts, this motor provides 1075 RPM with an electrically reversible rotation. It has a ball bearing construction and thermally protected overload. Ideal for cooling and heating applications, the motor is built for reliable performance in demanding environments.

• 1 HP motor with 1075 RPM
• Operates at 460 volts
• Thermally protected with ball bearing

Product Highlights

The Fasco D1710 condenser fan motor is designed for efficient and durable operation in HVAC systems. It supports multiple speed settings and ensures optimal air circulation.

Product Information

Standard Information

• Voltage: 460 volts
• Amperage: 3 amps
• Horsepower: 1 HP

Technical Specifications

• Frame Size: 48Z
• Diameter: 5.6 inches
• Speed: 1075 RPM
• Enclosure: Open Air Over
• Material: Rolled Steel
• Rotation: Counterclockwise/Clockwise
• Insulation Class: B
• Shaft Diameter: 0.5 inches
• Shaft Extension: 6 inches
• Frequency: 60 Hz
• Ambient Temperature: 60 degrees Celsius
• Mounting Type: Extended Studs
