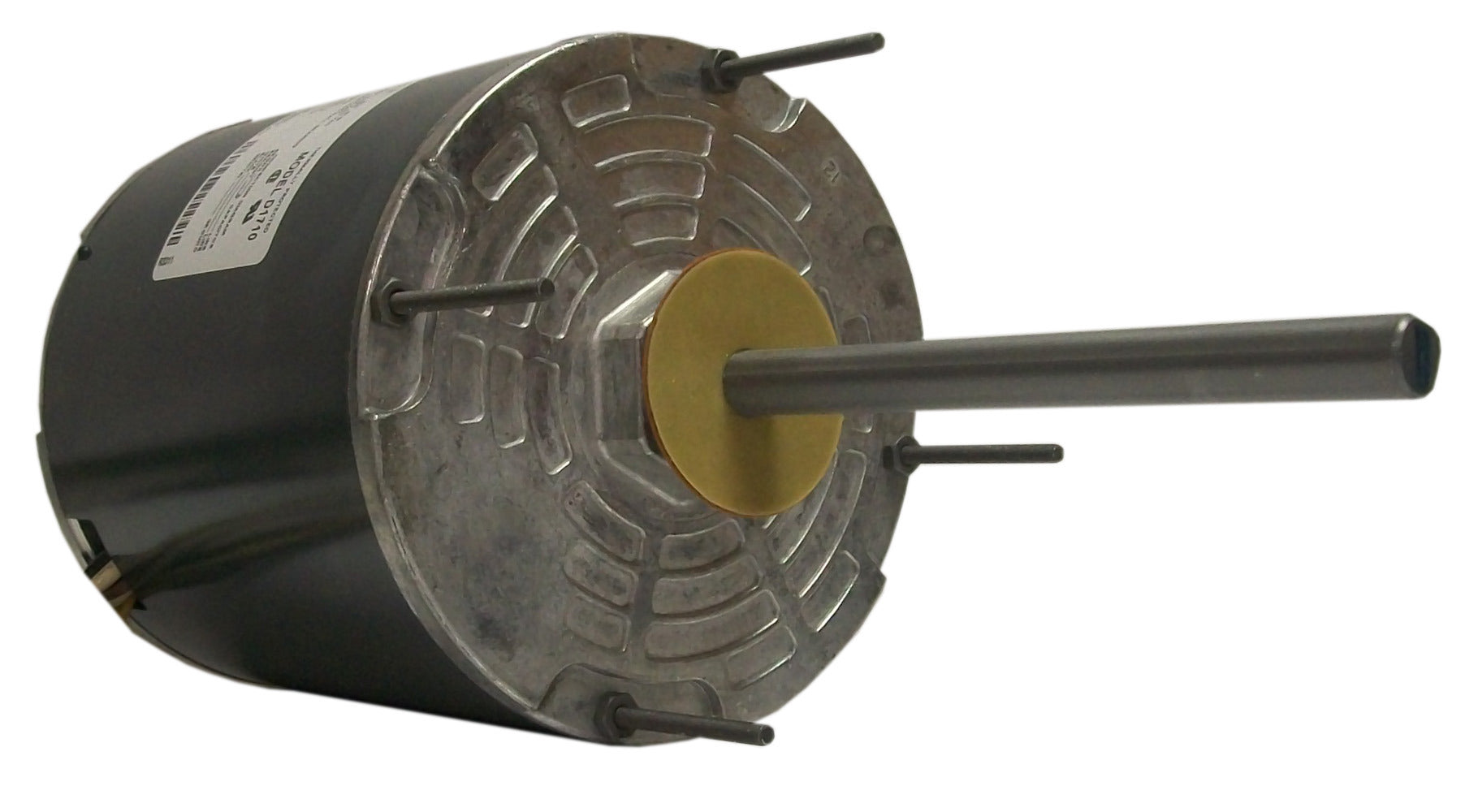

Fasco D1710 Condenser Fan Motor 1HP 48 Frame

Product Description

The Fasco D1710 is a condenser fan motor designed for HVAC applications. This unit has a one horsepower rating and operates at a speed of one thousand seventy-five RPM. The motor features a standard frame size of forty-eight and an overall diameter of five point six inches.

• Electrical Type: Permanent Split Capacitor (Capacitor required, not included)
• Thermally protected for safety and reliability
• Built from rolled steel with an open air over enclosure

Product Highlights

This motor is ideal for replacing existing condenser fan motors in air conditioning systems and refrigeration units. It supports both counterclockwise and clockwise rotation, making it versatile for different installation needs.

Product Information

Standard Information

• Voltage: 460
• Phase: Single

Technical Specifications

• Amperage: 3.00
• Shaft Diameter: 0.500 inches
• Bearings DE Type: Ball
• Bearings ODE Type: Ball
• Shaft Extension: 6.000 inches
