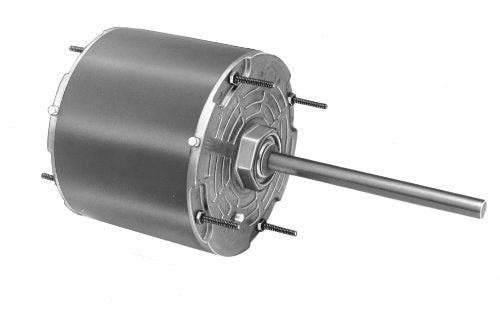

FASCO D1700 Electric Motor 1/2hp 5.6 inches Diameter

Product Description

The FASCO D1700 is an electric motor with a 1/2 horsepower rating, designed specifically for condenser fan applications. This model features a five point six inches diameter frame and operates at a speed of 1075 RPM. The motor is a permanent split capacitor type, featuring durable ball bearings for improved performance and longevity. With a power requirement of 208-230 volts at 60Hz, it draws between 3.7 to 1.9 amps, making it efficient for various cooling systems.

• 1/2-1/3 horsepower rating
• Speed of 1075 RPM
• Designed for 208-230V power sources

Product Highlights

Suitable for specific cooling applications, the FASCO D1700 motor is reliable and efficient.

Product Information

Standard Information

• Brand: FASCO
• MPN: D1700

Technical Specifications

• Power Rating: 1/2HP
• Frame Size: 5.6 inches
• RPM: 1075
• Voltage: 208-230V
• Frequency: 60Hz
• Amperage: 3.7-1.9A
• Type: Permanent Split Capacitor Motor
• Bearings: Ball Bearings
