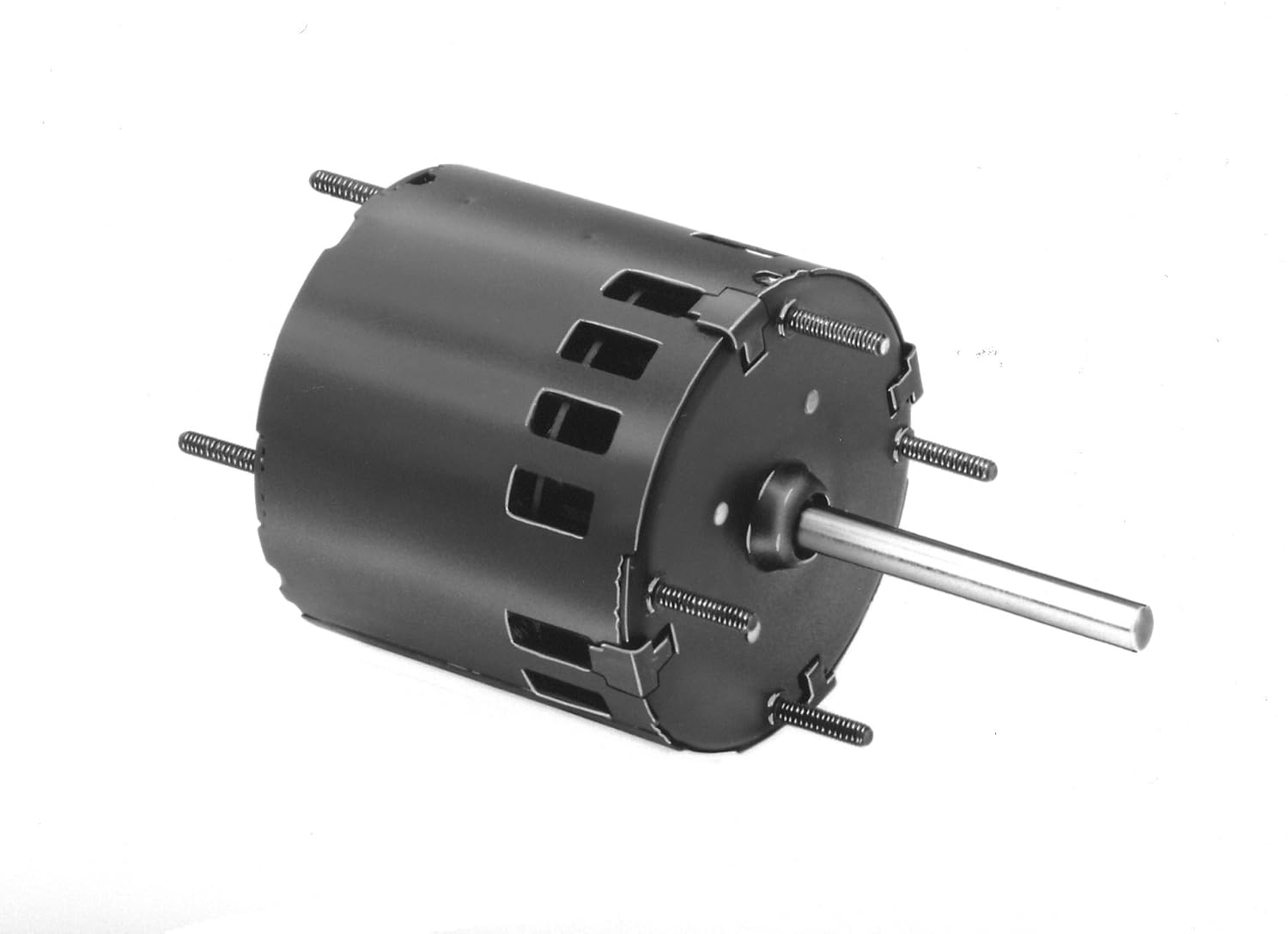

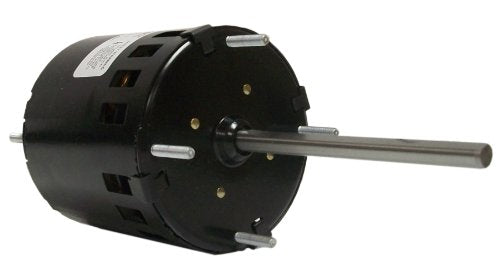

Fasco D169 1/70 HP 1500 RPM Open Vent Fan and Blower Motor

Product Description

The Fasco D169 motor is a reliable fan and blower motor. This motor has an open ventilated design and uses a shaded pole motor type. It is designed with a sleeve bearing system for smooth operation. Ideal for various HVAC applications.

• 1/70 HP motor power
• 1500 RPM speed
• 115 volts operational requirement

Product Highlights

The Fasco D169 motor is notable for its open ventilated construction, which ensures efficient cooling and performance. This motor is counterclockwise rotating and thermally protected for added safety. Its shaded pole design ensures reliable operation, making it an excellent choice for HVAC systems and similar applications.

Product Information

Standard Information

• Electrical Type: Shaded Pole
• HP: 1/70
• RPM: 1500
• Voltage: 115
• Rotation: Counterclockwise Shaft End
• Material: Steel
• Mounting: Extended Studs
• Bearing Type: Sleeve
• Frame Diameter: 3.3 inches
• Open Ventilated: Self Cooled

Technical Specifications

• Amperage: 0.7
• Shaft Diameter: 0.25 inches
• Shaft Extension: 3 inches
• Insulation Class: B
• Ambient Temperature: 40 degrees Celsius
• Frequency: 60 Hz
• Service Factor: 1
• Phase: Single
• Overload Protection: Thermally Protected
