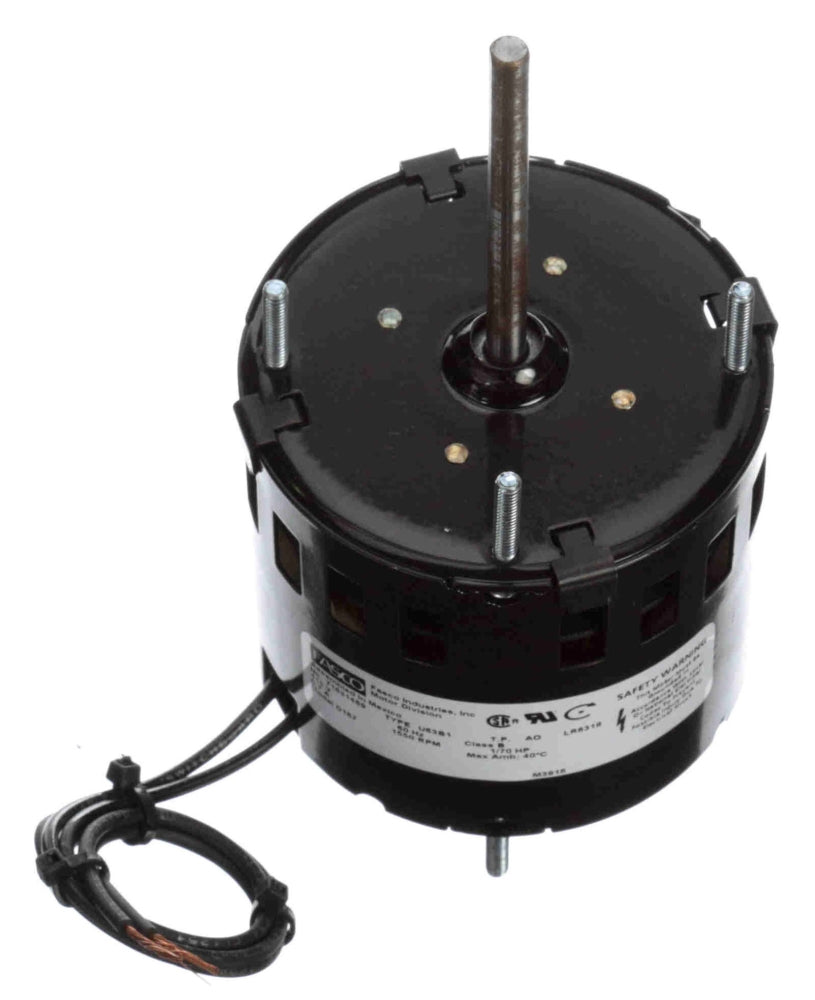

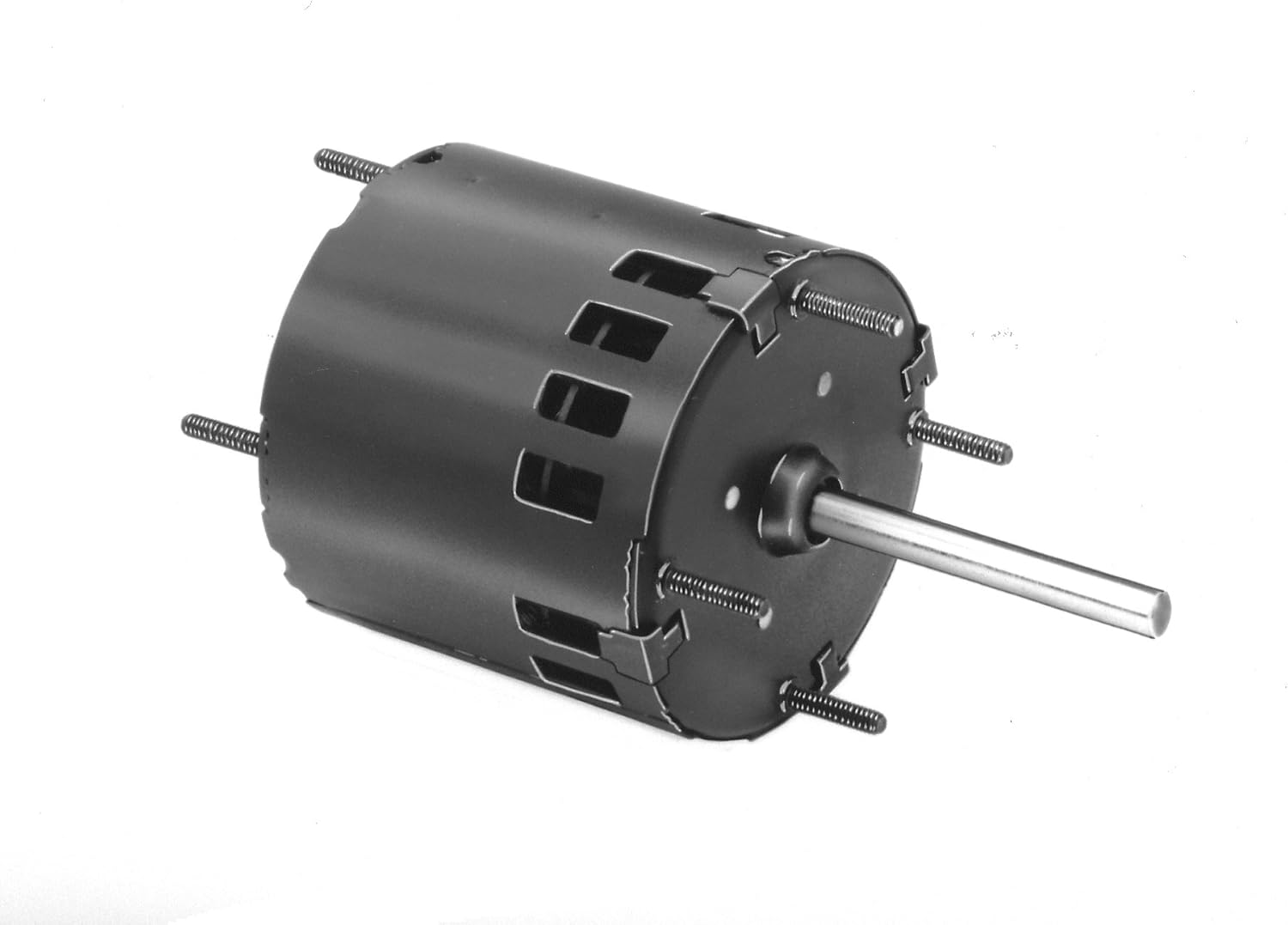

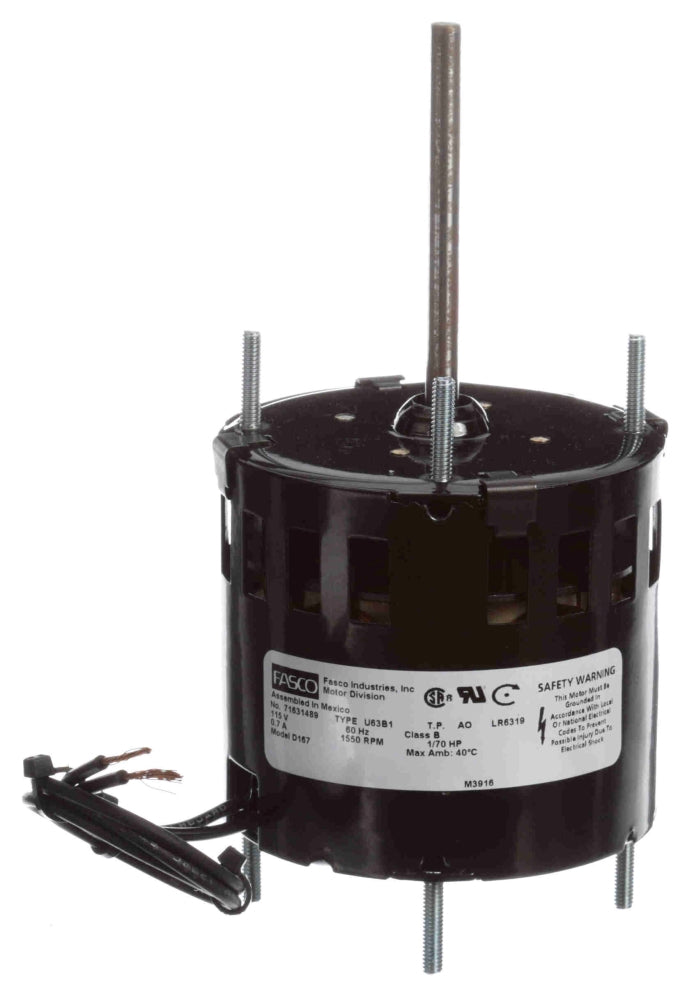

Fasco D167 Self-Cooled Motor 1/70 HP 1500 RPM 115 Volt

Product Description

The Fasco D167 is a self-cooled fan and blower motor with a power rating of one-seventieth horsepower (1/70 HP) and a speed of one thousand five hundred RPM. This single-phase motor operates at one hundred fifteen volts and draws zero point seven amps. It features a shaded pole design and has a frame diameter of three point three inches. The motor includes a sleeve bearing and is mounted using extended studs.

• 115 Volt AC single-phase operation
• Thermally protected with a flat shaft
• Suitable for fan and blower applications

Product Highlights

This motor is designed for general-purpose use and is ideal for applications involving fans and blowers. It operates in a semi-enclosed, open air-over environment, ensuring efficient cooling and performance.

Product Information

Standard Information

• Brand: Fasco
• MPN: D167

Technical Specifications

• Power Rating: 1/70 HP
• Speed Rating: 1500 RPM
• Voltage Rating: 115 Volt AC
• Current Draw: 0.7 Amps
• Frame Diameter: 3.3 inches
• Enclosure Type: Semi-enclosed, Open Air-Over
• Insulation Class: B
• Mounting Type: Extended Stud
• Length: 6.38 inches
• Weight: 2 pounds
