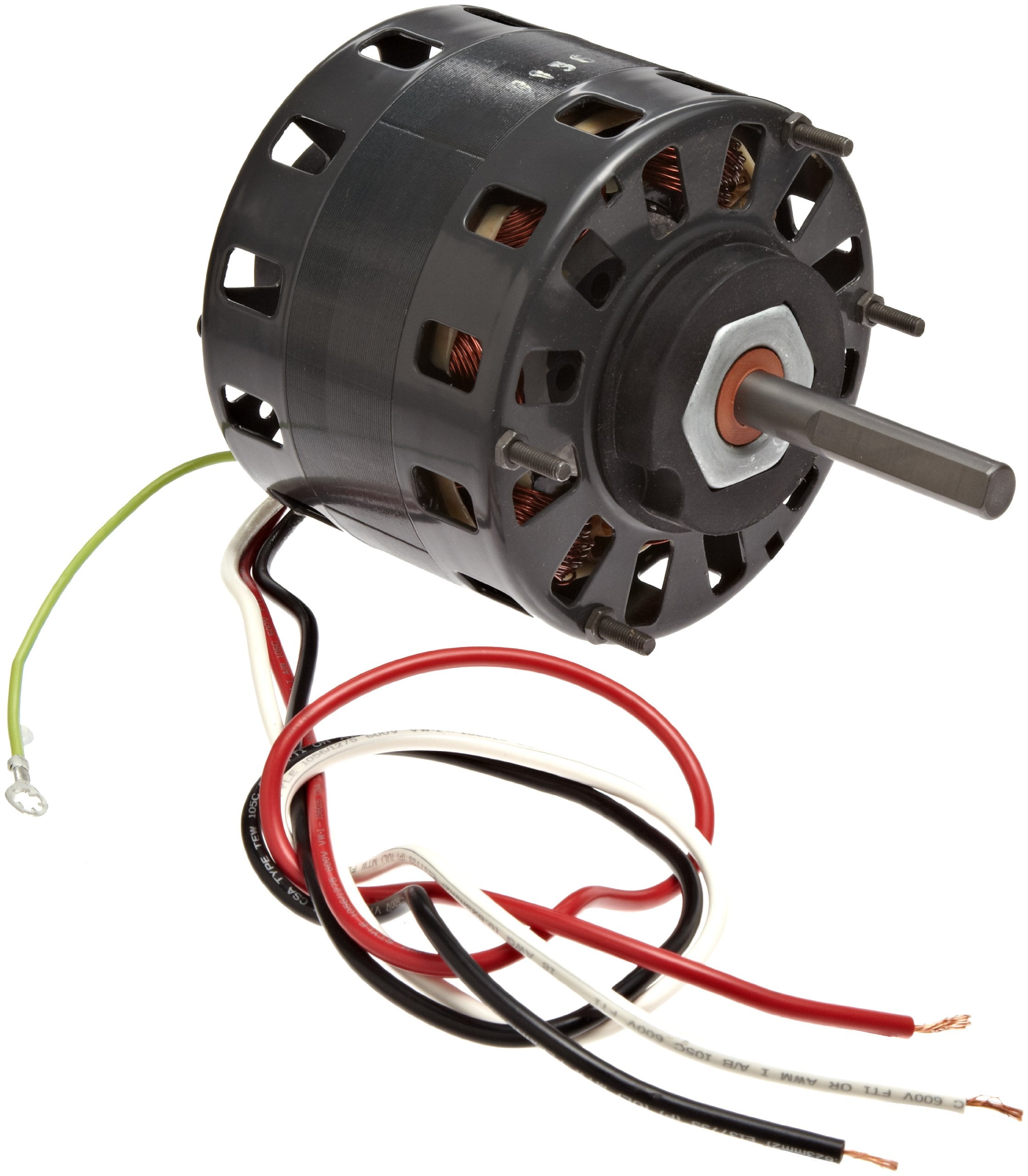

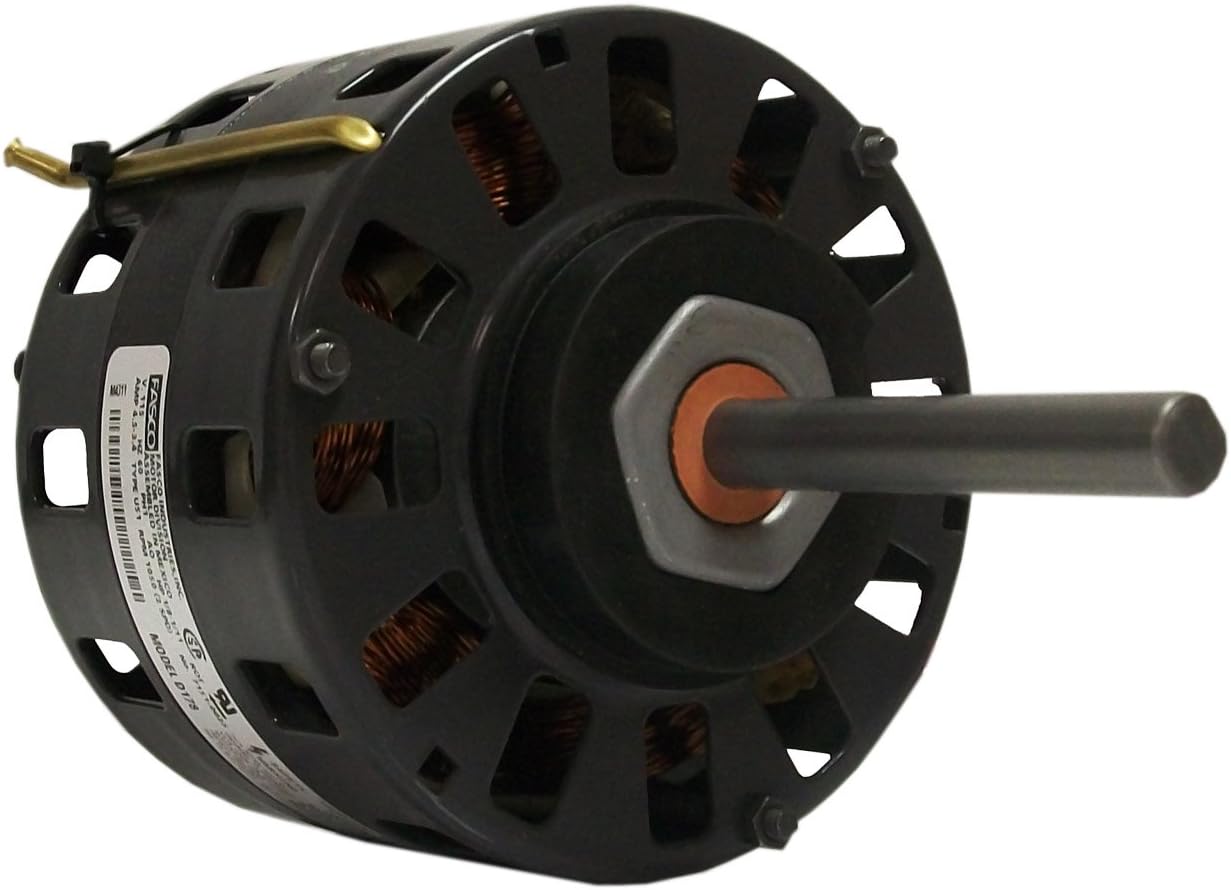

Fasco D166 5.0-Inch Direct Drive Blower Motor 1/6 HP 115 Volts 1050 RPM

Product Description

The Fasco D166 5.0-Inch Direct Drive Blower Motor provides reliable performance with 1/6 HP and 115 volts. This motor operates at 1050 RPM with 2 speeds and 7.2 amps. It includes a Clockwise (CW) Shaft End rotation and an Open Air Over (OAO) enclosure. The motor features a sleeve bearing for smooth operation.

• 1/6 HP, 115 Volts
• 1050 RPM, 2 Speeds
• Shaft Diameter: 1/2 inch, Shaft Length: 3.5 inches

Product Highlights

The Fasco D166 blower motor is suitable for various fan motor applications in HVAC systems. It is thermally protected and UL recognized, ensuring safe and efficient operation in diverse environments.

Product Information

Standard Information

• Brand: Fasco
• Model: D166
• Item Weight: 8.35 pounds
• Package Dimensions: 11.2 x 5.2 x 5.3 inches
• Availability: Contact your Baker Representative for product availability and pricing.

Technical Specifications

• MPN: D166
• Horsepower: 1/6 HP
• Voltage: 115 VAC
• Cycle/Hertz: 60 Hz
• Rotation: Clockwise (CW)
• Amps: 7.2
• RPM: 1050
• Bearing Type: Sleeve
• Number of Speeds: 2
• Motor Type: Shaded Pole
• Insulation Class: Class B
• Motor Enclosure: Open
• Shaft Length: 3.5 inches
• Shaft Diameter: 1/2 inch
• Cubic Measurement: 0.1786
• Dimensional Weight: 2
• Prop 65: Yes
• Country of Origin: USA
