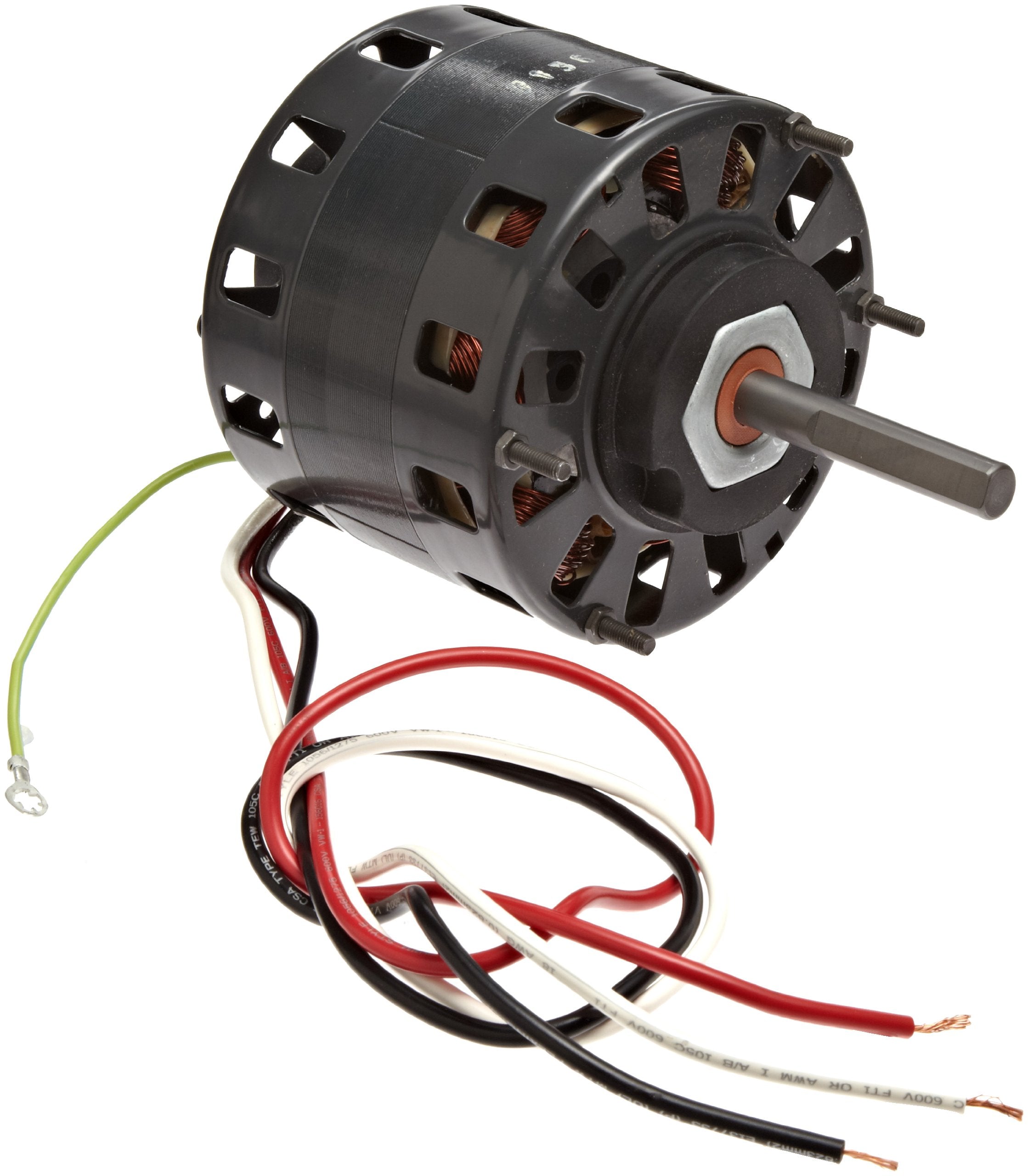

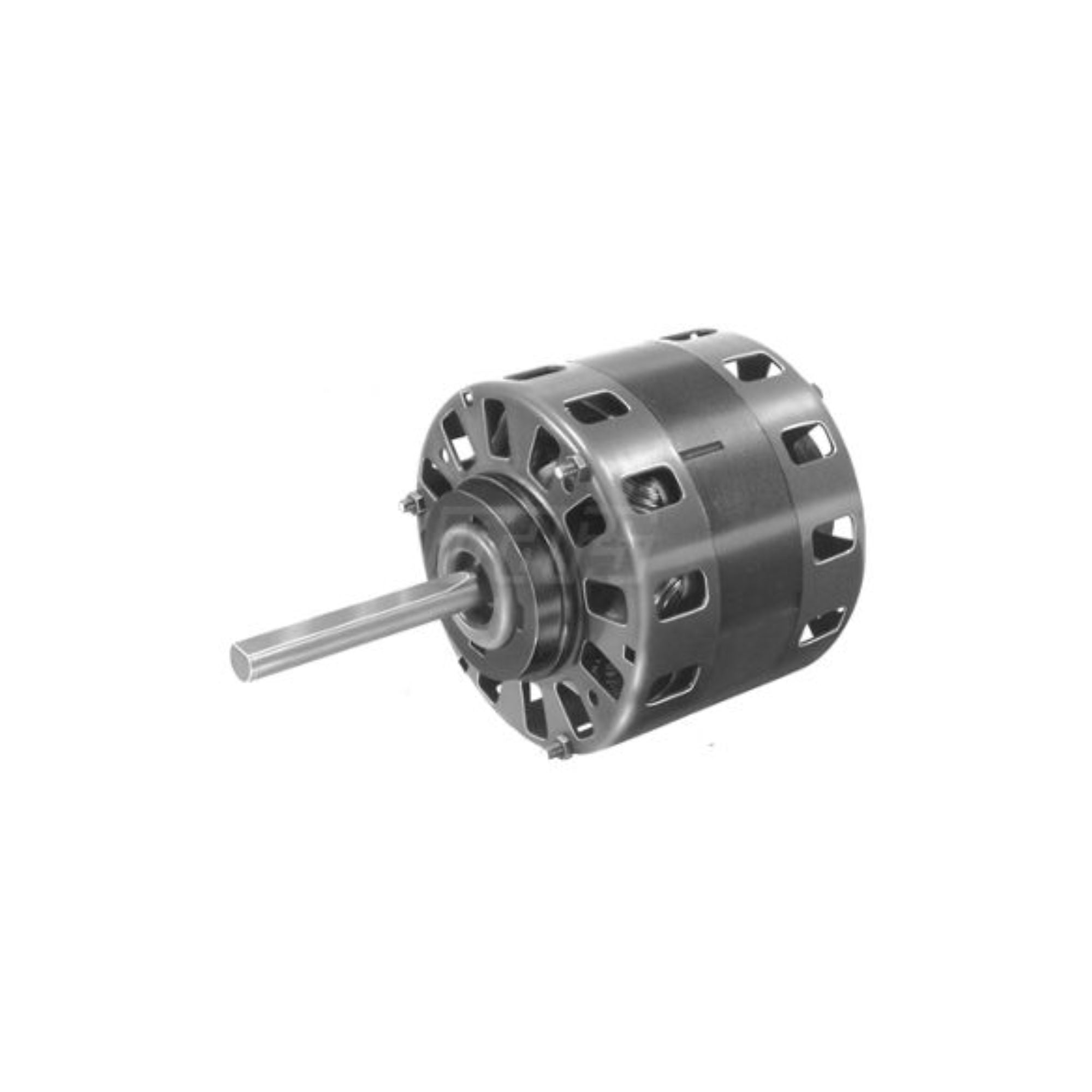

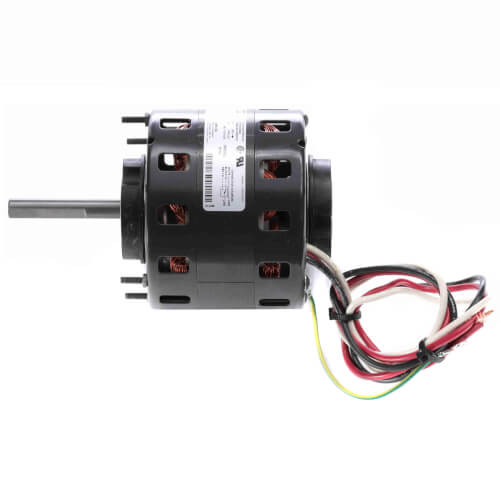

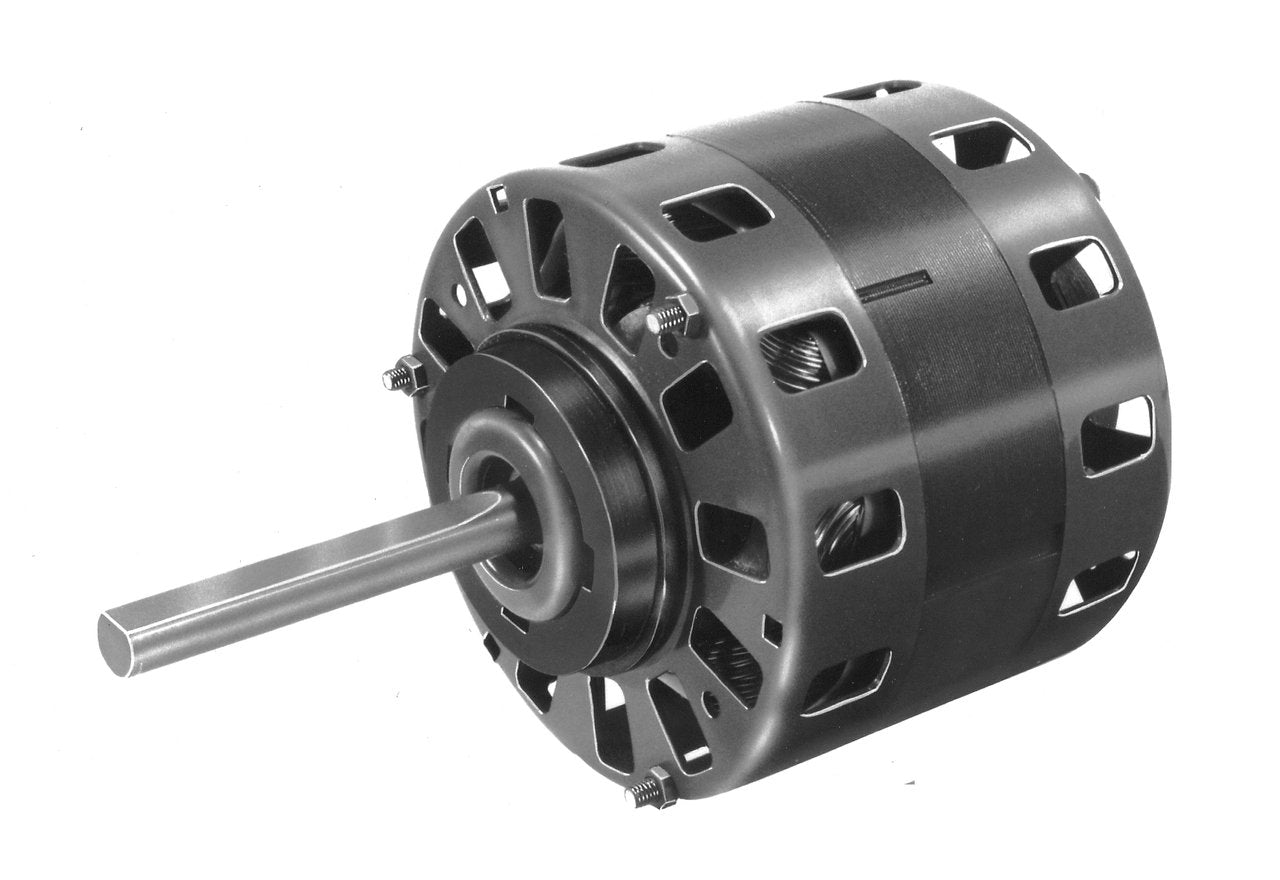

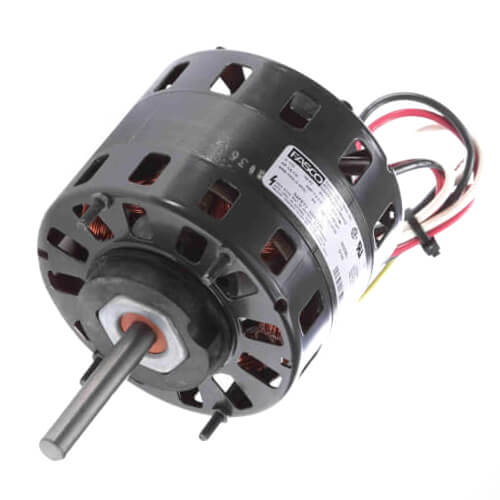

Fasco D166 5.0-Inch Direct Drive Blower Motor, 1/6 HP, 115 Volts, 1050 RPM, 2 Speed

Product Description

The Fasco D166 5.0-Inch Direct Drive Blower Motor is rated at 1/6 HP, 115 Volts, and 1050 RPM. This motor features a 2-speed operation and an OAO enclosure. It has a CWSE rotation and a sleeve bearing. Ideal for direct drive blower applications.

• 1/6 HP power rating
• Operates at 115 Volts and 1050 RPM
• Features 2-speed functionality

Product Highlights

The Fasco D166 is a direct drive blower motor with a 1/6 HP, 115 Volts, and 1050 RPM, suitable for various blower applications.

Product Information

Standard Information

• Brand: FASCO
• Manufacturer Part Number: D166
• Country of Origin: USA

Technical Specifications

• Speed: 1050 RPM
• Voltage: 115 Volts
• Horsepower: 0.16 hp
• Model Name: D166
• Amps: 7.2
• Bearing Type: Sleeve
• Brand: Fasco
• Cycle/Hertz: 60 Hz
• Full Load Amps: 7.2
• Height: 5.3
• Insulation Class: B
• Length: 11.2
• Motor Enclosure: Open
• Motor HP: 1/6 HP
• Motor Type: Shaded Pole Motor
• Number of Speeds: 2 (Two)
• Phase: Single
• Rotation: Clockwise (CW)
• RPM: 1050
• Shaft Diameter: 0.5"
• Shaft Length: 3.5
• Width: 5.2
• Country of Origin: USA
• Enclosure: OAO
• Hertz: 60hz
• Mount: Belly Band or Stud Mount
• Bolt Circle: 4.62"
• Motor Length Less Shaft: 3 7/8"
• Bearings: Sleeve Bearings
• Ventilation: Open Ventilation - Air Over
• Mounting: Resilient Ring Mount
• HP: 1/8, 1/9
• Nameplate RPM: 1050
• Open Vent.: Open Vent.
• Cooling: Ambient
• Frequency: 60 Hz
• Max Ambient Temp (°F): 104°F
• Duty: Air Over
• Poles: 6
• Overload Protection: Thermally
• Approvals: UL
• Amperage: 6.5/4.8/4.3/3.9
• Extended Studs: Extended Studs
• Diameter (Inches): 5"
• Frame Size: 42
