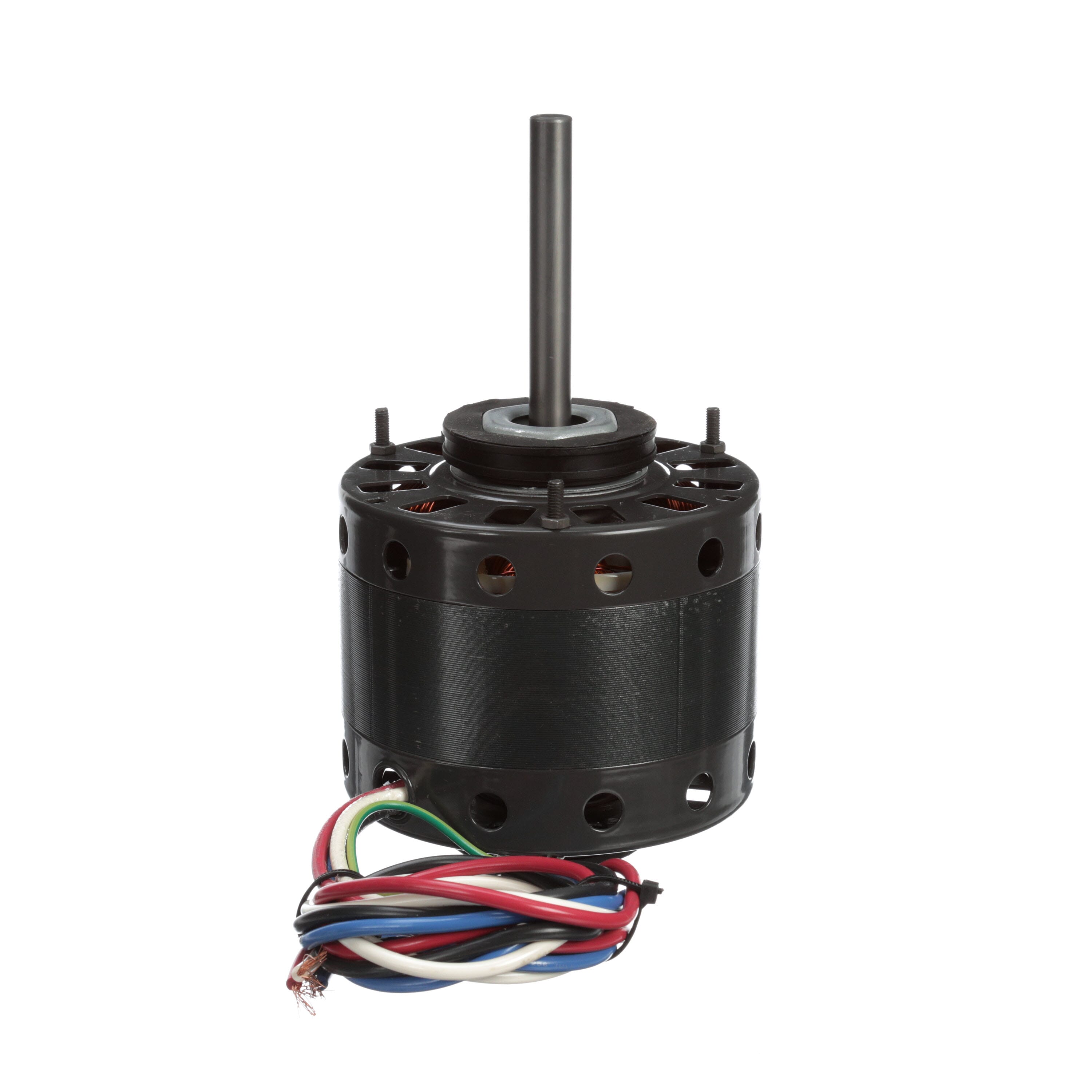

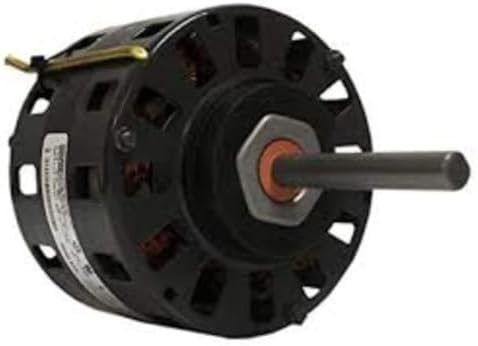

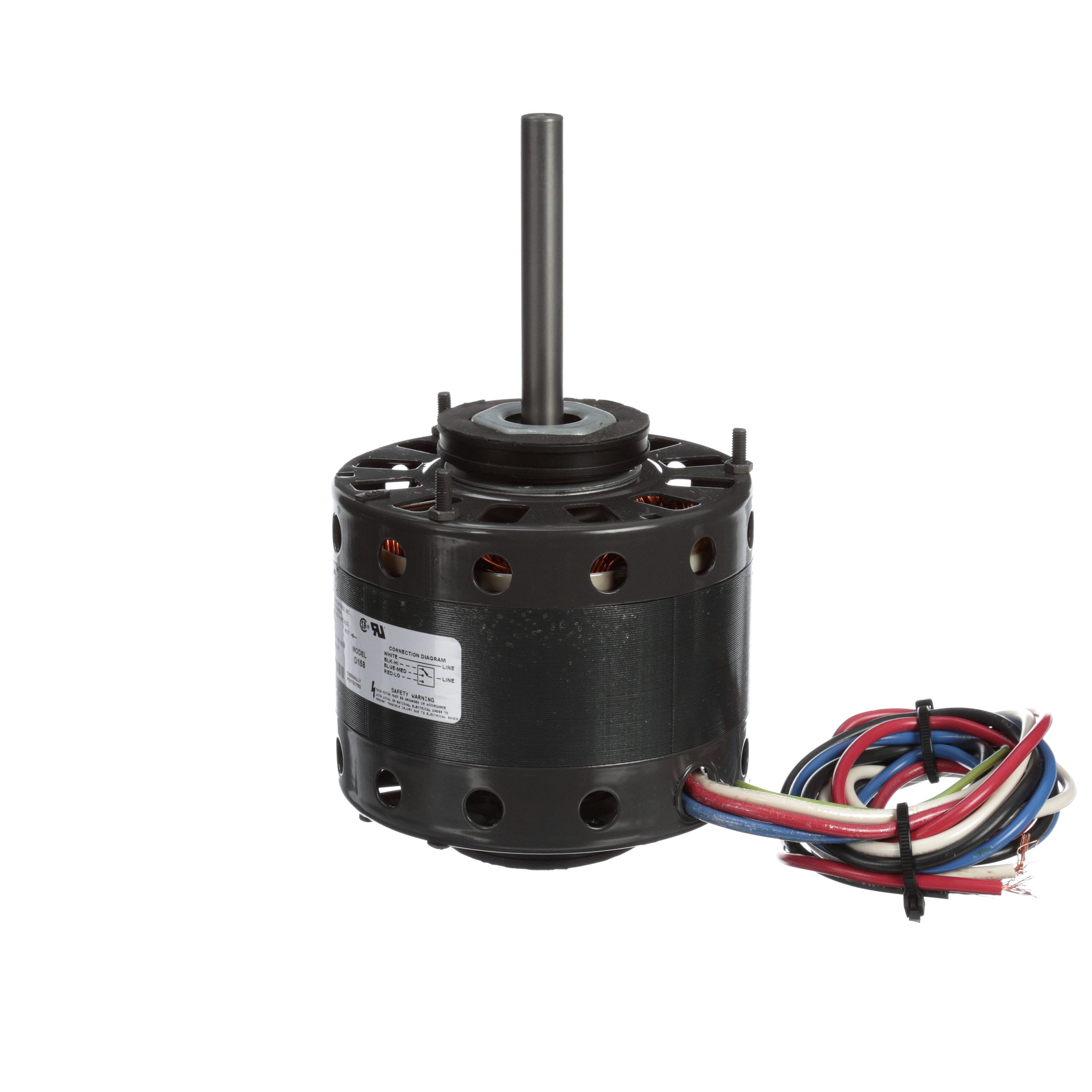

Fasco D158 Direct Drive Blower Motor 1/5-1/7 hp

Product Description

The FASCO D158 direct drive blower motor is an O.E.M. authorized part that fits various Fasco models. Designed as a replacement on central heating and direct drive blower units, it may also be used for ventilators and exhaust fans. It features thermal protection and a sleeve bearing.

• O.E.M. authorized part
• Fits various Fasco models
• Thermally protected

Product Highlights

The FASCO D158 is suitable for heating, ventilation, and exhaust systems.

Product Information

Standard Information

• Brand: FASCO
• Manufacturer Part Number: D158
• Country of Origin: Mexico

Technical Specifications

• Brand: Fasco
• Model Name: d158
• Material: Copper
• Number of Items: 1
• Model: D158
• Agency Certification: UR/CSA
• Ambient Operating Temp. (Celsius): 40
• Bearing Type: Slv
• Diameter: 5"
• Efficiency: 35.0%
• Enclosure: OAO
• F/L Amps: 6.70
• HP: 1/5-1/7
• Hz: 60
• Insulation Class: A
• Mounting: Resilient Rings
• NEMA Frame: 42
• Phase: Single
• RPM: 1050
• Rot.: CWSE
• Service Factor: 1
• Shaft Diam.: 1/2"
• Shaft Length: 3-7/8"
• Speeds: 3
• Thermal Protection: Yes
• Type: Shaded Pole
• Voltage: 115 V
• Power Phase: 1 Phase
• Country of Origin: Mexico
• Output HP: 1/5-1/6-1/7 Hp
• Output KW: 0.15 kW
• Speed: 1050 rpm
• Frequency: 60 Hz
• Current: 6.7/5.3/4.7 A
• Duty: Air Over
• UL: Recognized
• CSA: Y
• CE: N
• A2L Status: A2L Compliant
• Number of Speeds: 3
• Electrical Type: Shaded Pole
• Starting Method: Across The Line
• Poles: 6
• Rotation: Clockwise Shaft End
• Drive End Bearing: Sleeve
• Opp Drive End Bearing: Sleeve
• Frame Material: Na
• Shaft Type: Flat
• Overall Length: 8.79 in
• Shaft Diameter: 0.500 in
• Shaft Extension: 4.16 in
