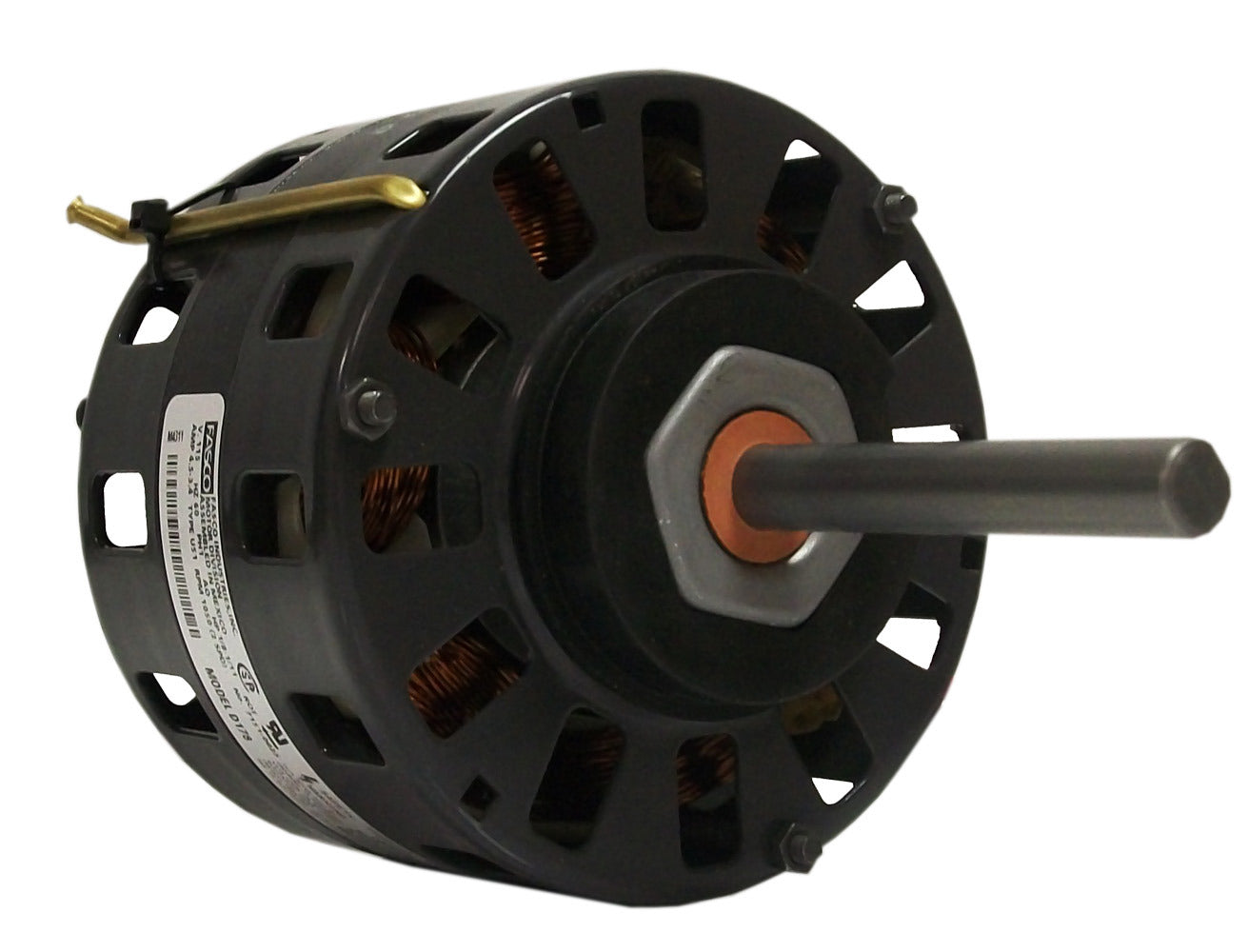

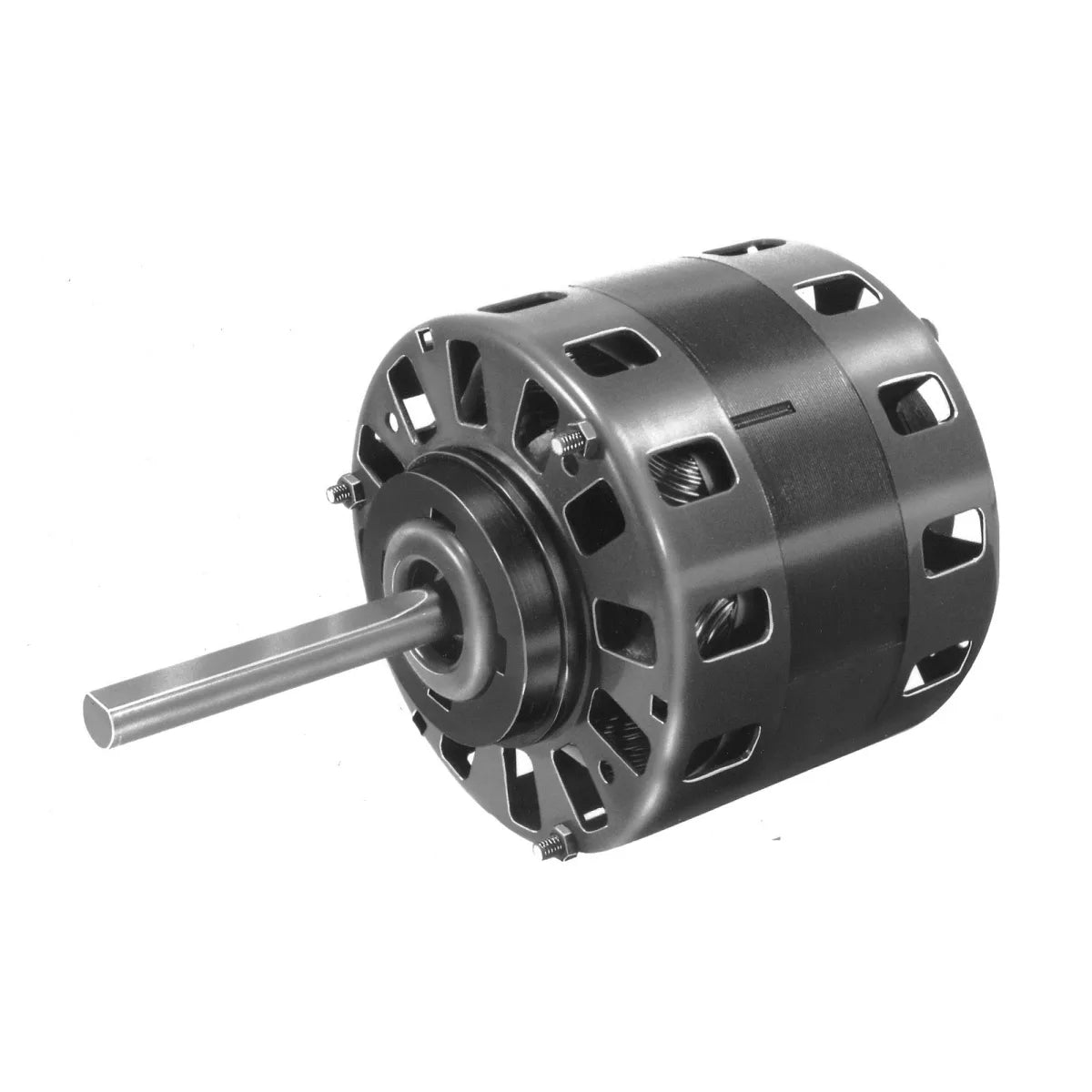

Fasco D158 5 Dia Direct Drive Blower Motor, 1/5 - 1/6 - 1/7 HP, 1050 rpm, Open Ventilated

Product Description

The Fasco D158 is a five-inch diameter direct drive blower motor. This motor operates on 115 volts and includes three-speed settings. It has a horsepower rating of one-fifth, one-sixth, and one-seventh, supporting a speed of 1050 rpm. Designed with an open ventilated enclosure, this motor is suitable for various HVAC applications.

• Voltage Rating: 115 V
• Full Load Amperage: 6.7 A at maximum load
• Durable Sleeve Bearing Type

Product Highlights

This motor is ideal for air moving applications including furnace fans, air handlers, and commercial refrigeration. Its thermally protected design ensures safe operation under typical HVAC conditions.

Product Information

Standard Information

• Brand: Fasco
• Part Number: D158

Technical Specifications

• Horsepower Rating: 1/5 - 1/6 - 1/7 HP
• Speed: 1050 rpm
• Dimensions: 3.875 inches length, 0.5 inches shaft diameter
• Mounting Type: Resilient ring
• Rotation: Clockwise
• Insulation Class: B
• Maximum Ambient Temperature: 104 degrees Fahrenheit (40 degrees Celsius)
• Service Factor: 1
