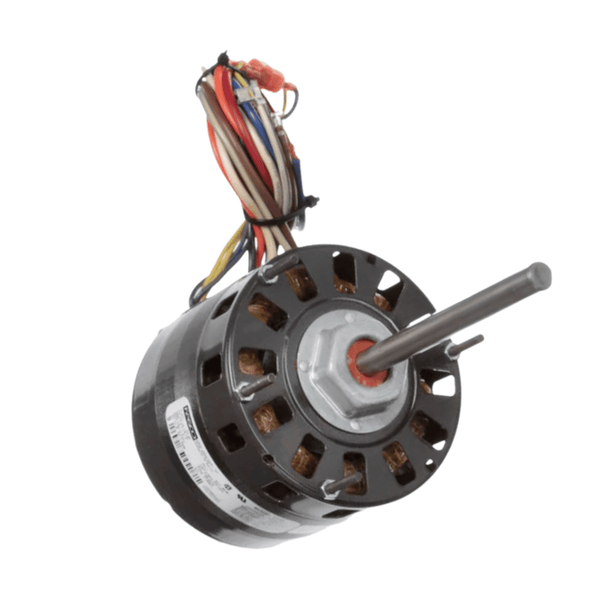

Fasco D152A Fan and Blower Motor 1/4 1/5 1/6 1/8 HP 277 V

Product Description

The Fasco D152A is a blower motor designed for direct drive applications. It operates at one-fourth to one-eighth horsepower. This unit is suitable for use in environments with a maximum temperature of forty degrees Celsius. It is crafted with a four-speed setting for versatile performance.

• Direct Drive Blower Motor
• Permanent Split Capacitor (PSC) with Required Capacitor of 5 Mfd-370 Volts (Not Included)
• Ball Bearing Construction for Durability

Product Highlights

The Fasco D152A is equipped with thermal protection and a standard of class B insulation. Its open air over enclosure enhances heat dissipation.

Product Information

Standard Information

• Brand: Fasco
• Motor Type: Blower Motor

Technical Specifications

• MPN: D152A
• Phase: 1
• Output HP: 1/4, 1/5, 1/6, 1/8 Hp
• Voltage: 277 V
• Speed: 1050 rpm
• Service Factor: 1.0
• Frame: 42
• Enclosure: Open Air Over
• Thermal Protection: Automatic
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 1.4, 1.1, 0.9 A
• Duty: Continuous
• Insulation Class: B
• UL Recognized: Yes
• CSA Certified: Yes
• CE Marked: No
• Number of Speeds: 4
• Electrical Type: Permanent Split Capacitor
• Starting Method: Across The Line
• Poles: 6
• Rotation: Reversible
• Mounting: Extended Studs
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Shaft Type: Flat
• Frame Length: 4.58 in
• Shaft Diameter: 0.500 in
• Shaft Extension: 6 in
