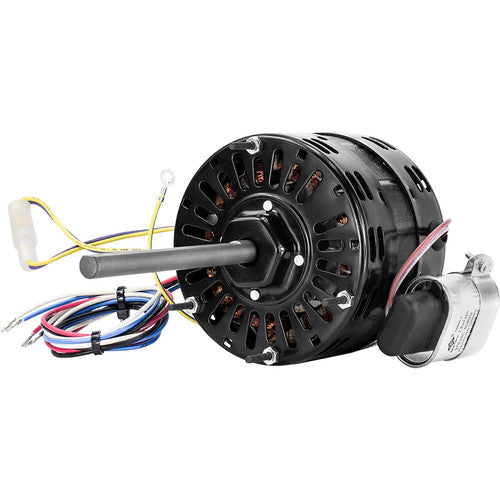

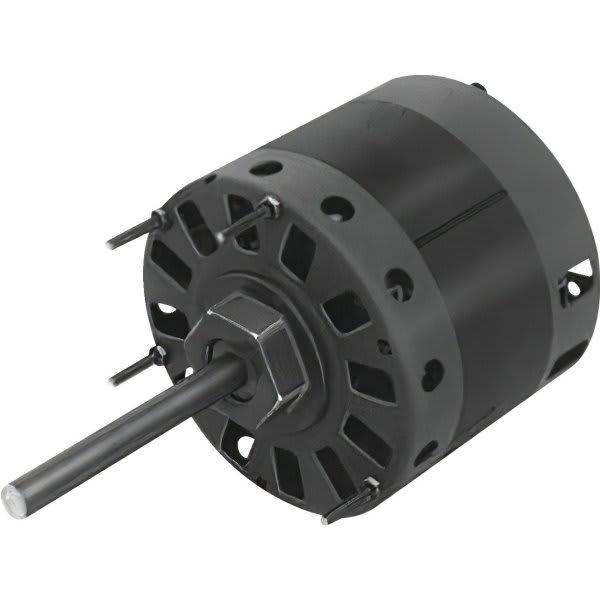

FASCO D151A Blower Motor 230V 3 Speed

Product Description

The FASCO D151A is a blower motor suited for various applications. This motor works at a voltage of two hundred thirty volts and features three-speed options. It has a reversible shaft rotation and is designed with an open air over enclosure. Ideal for direct drive blower setups, it includes extended studs for easy mounting and uses ball bearings for effective operation.

• Operates at two hundred thirty volts with multiple speed settings.
• Features reversible shaft rotation for flexible installation.
• Optimized for direct drive blower applications with extended mounting studs.

Product Highlights

This motor is designed for smooth operation and can handle different speed needs, making it versatile for HVAC applications.

Product Information

Standard Information

• Manufacturer Part Number: D151A
• Country of Origin: Mexico

Technical Specifications

• Horsepower: 1/4, 1/5, 1/6 hp
• Voltage: 230 V
• Speed: 1050 RPM
• Number of Speeds: 3
• Current: 1.7-1.2-1.0 A
• Shaft Diameter: 0.500 inches
• Shaft Extension: 6 inches
• Rotation: Reversible
• Frame Diameter: 5 inches
• Enclosure: Open Air Over
• Phase: 1
• Frequency: 60 Hz
• Shaft Type: Flat
• Mounting Type: Extended Studs
• Motor Style: Permanent Split Capacitor
• Insulation Class: B
• Ambient Temperature: 40 °C
• Motor Length Less Shaft: 3.75 inches
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Material: Rolled Steel
• Thermal Protection: Automatic
