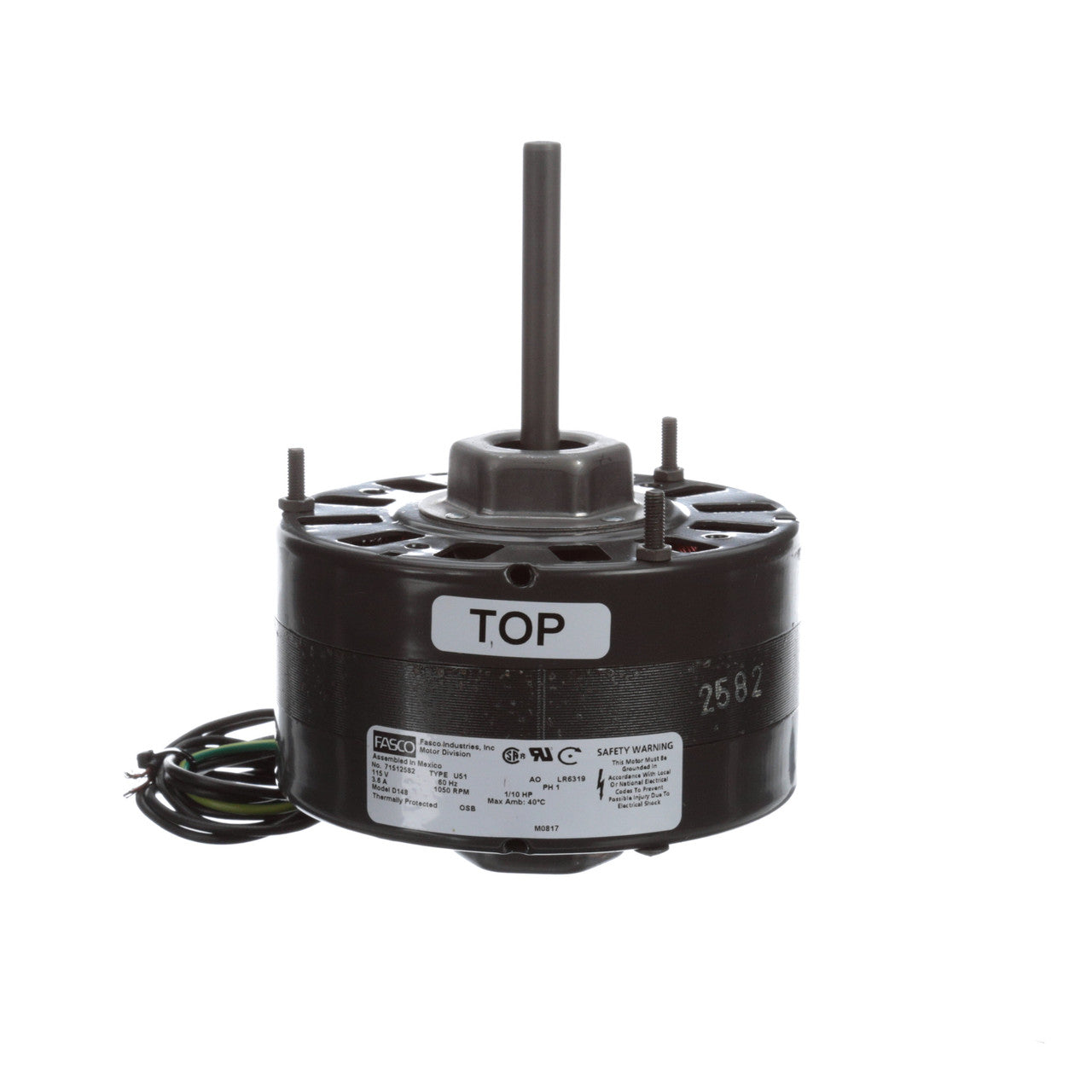

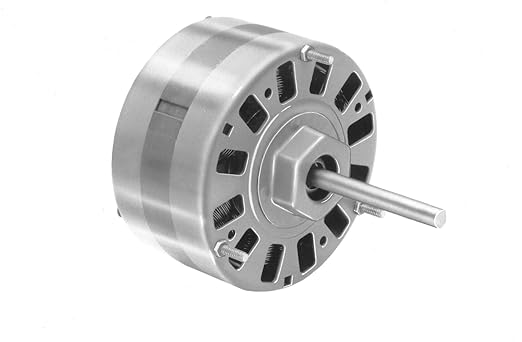

FASCO D148B Ventilation Motor 1/10 HP 1 Phase 60 Hz Replacement D148

Product Description

The FASCO D148B ventilation motor is suitable for HVAC systems, ensuring proper airflow in ventilation applications. It has a rating of 1/10 HP and operates at 115 volts and 60 hertz. The motor runs at a speed of 1050 RPM and features a single-phase design. It comes with a 42 frame size and an Open Air Over (OAO) enclosure, making it ideal for both residential and light commercial use.

• Ideal for ventilation and unit heater setups
• Rated at 1/10 HP and operates at 115 V
• Thermally protected with class B insulation

Product Highlights

This motor is designed for effective operation in various environments and features thermal overload protection to ensure longevity.

Product Information

Standard Information

• Phase: 1
• Duty: Continuous Air Over

Technical Specifications

• Output HP: 1/10 HP
• Voltage: 115 V
• Speed: 1050 RPM
• Frame: 42
• Enclosure: Open Air Over
• Thermal Protection: Automatic
• Insulation Class: B
• Current: 1.61 A
• Shaft Diameter: 0.375 inches
• Pole Count: 6
• Rotation: Clockwise Shaft End
• Shaft Extension: 3.5 inches
• Frame Material: Rolled Steel
