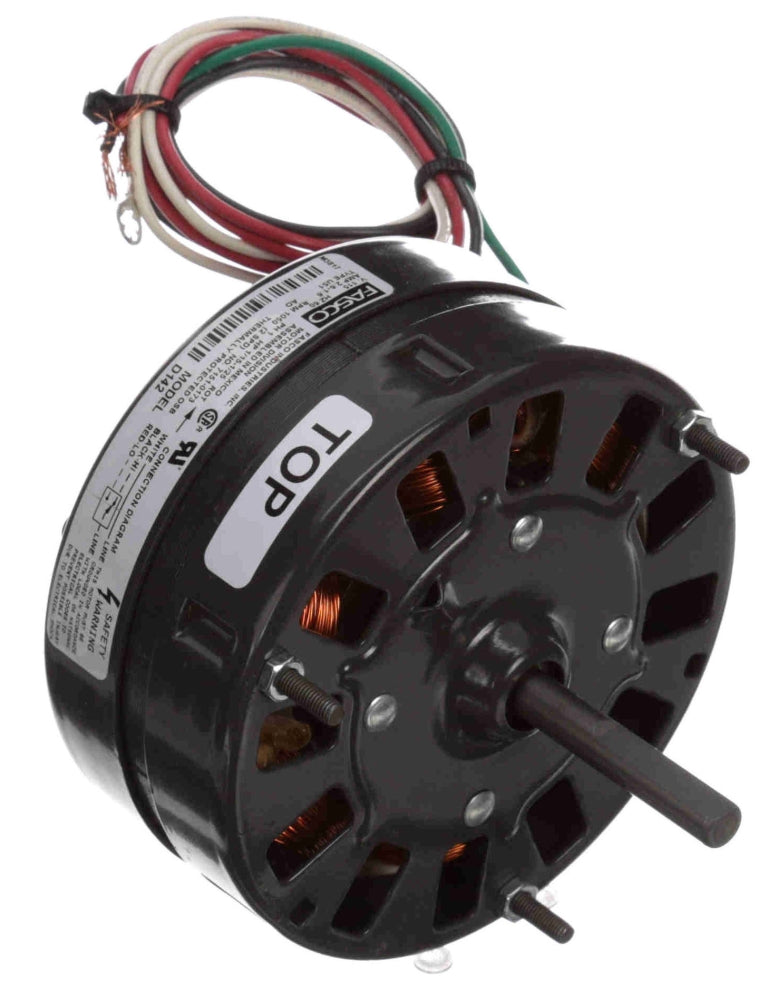

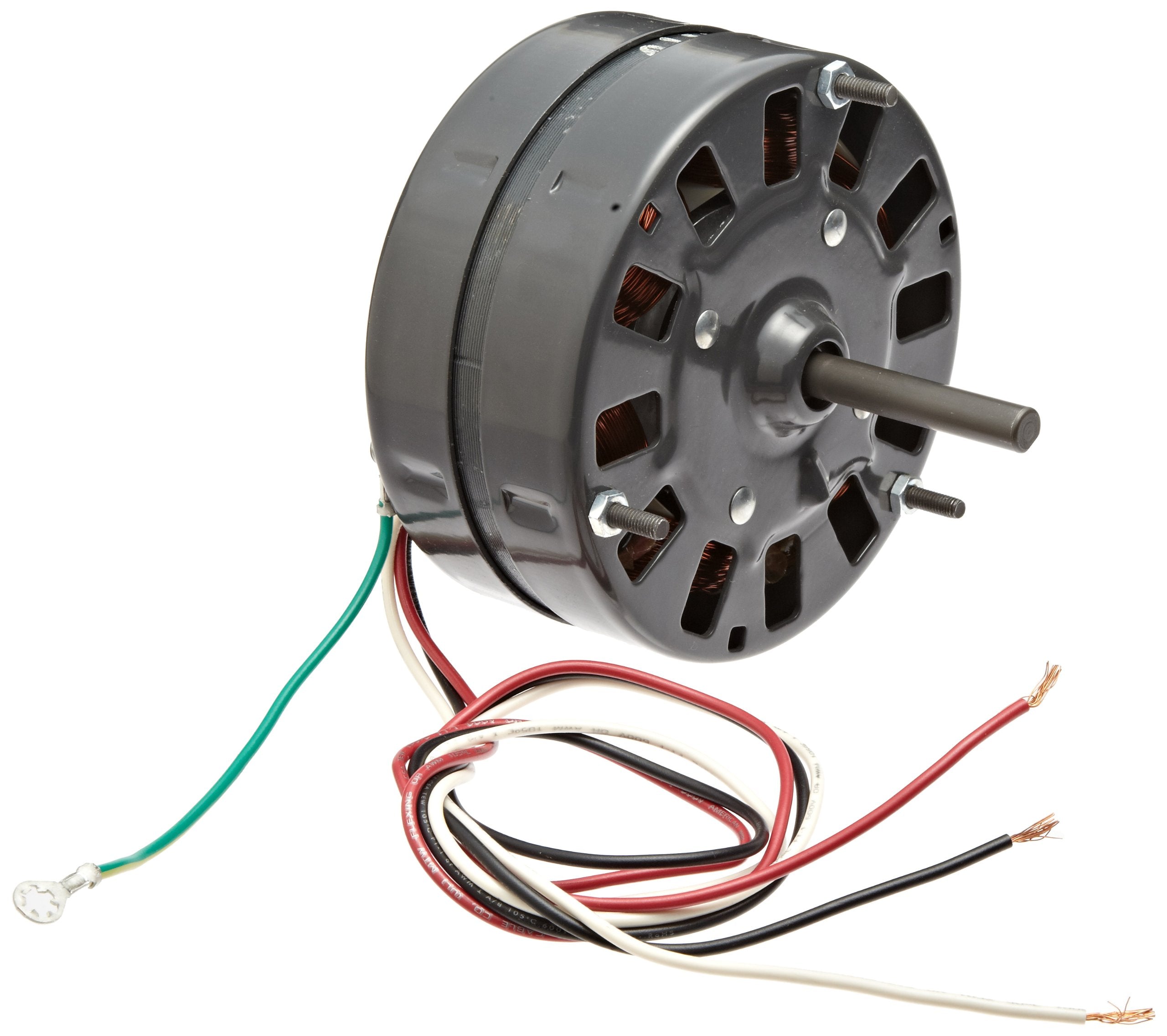

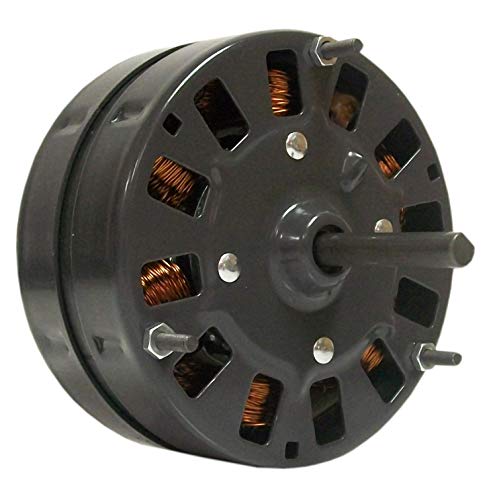

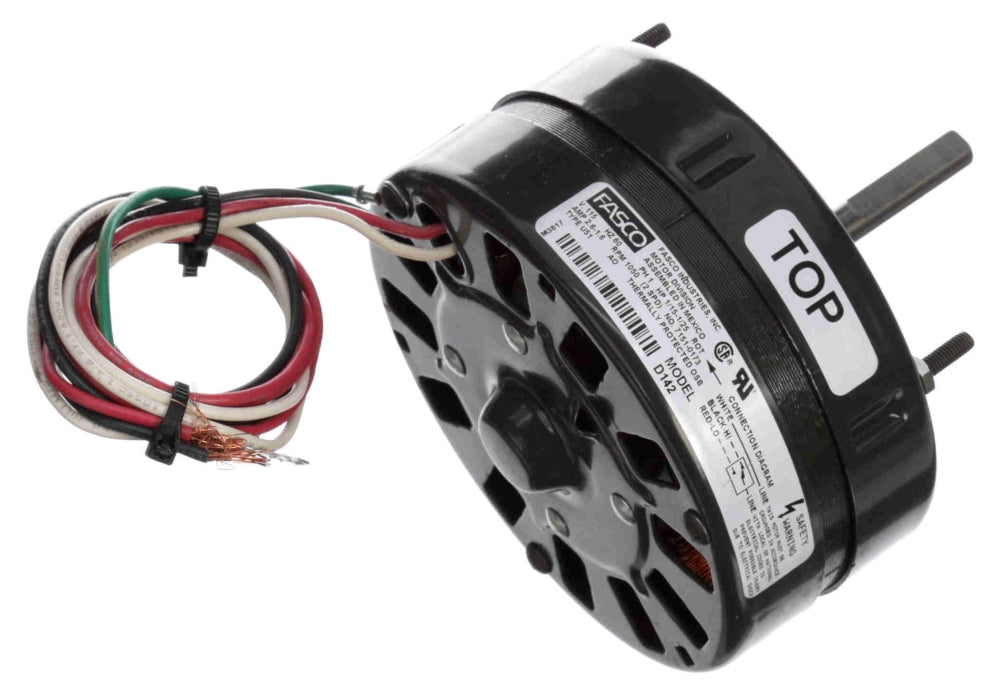

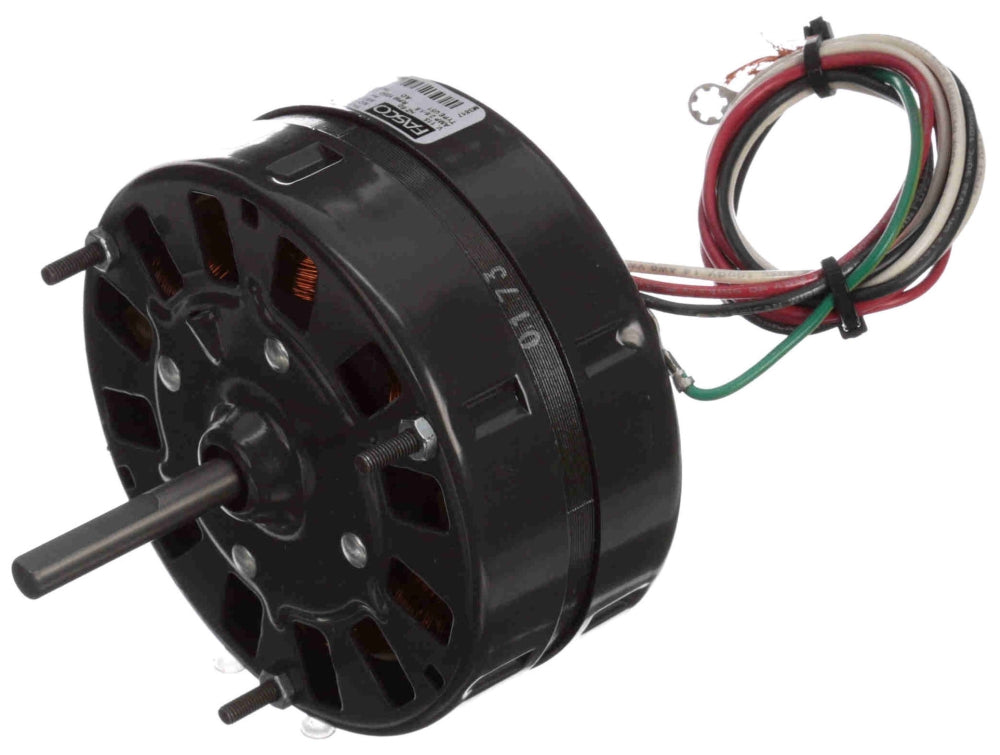

FASCO D142 Unit Heater Motor 1/15 HP 5 Inch Diameter x 5.25 Inch Length

Product Description

The Fasco D142 is a unit heater motor designed for reliable operation. This motor operates on 115 VAC and is suitable for various heater applications. With a power rating of 1/15 horsepower, it is efficient and effective for heating systems.

• Thermally protected motor for enhanced safety
• Two speeds for versatile use
• Clockwise rotation shaft end for easy installation

Product Highlights

This motor is optimized for unit heater systems and features an open air-over enclosure for better airflow.

Product Information

Standard Information

• Application: Unit Heater
• Approval: UL, CSA

Technical Specifications

• Enclosure Type: Open Air-Over
• Frequency Rating: 60 Hertz
• Motor FLA: 2.6 Amp, 1.6 Amp
• Mounting: Extended Stud
• NEMA Frame Size: 42
• Number Of Speeds: 2
• Service Factor: 1
• Speed Rating: 1050 RPM
• Voltage Rating: 115 Volt AC 1-Phase
• Type: Shaded Pole
• Shaft Type: Flat
• Bearing Type: Sleeve
• Number of Poles: 6
• Size: 5 Inch Diameter x 5.25 Inch Length
• Shaft Size: 0.375 Inch Diameter x 2.47 Inch Length (Extension)
• Starting Method: Across the Line
• Ambient Temperature Rating: 40 Deg C
• Includes: 28 Inch Lead
