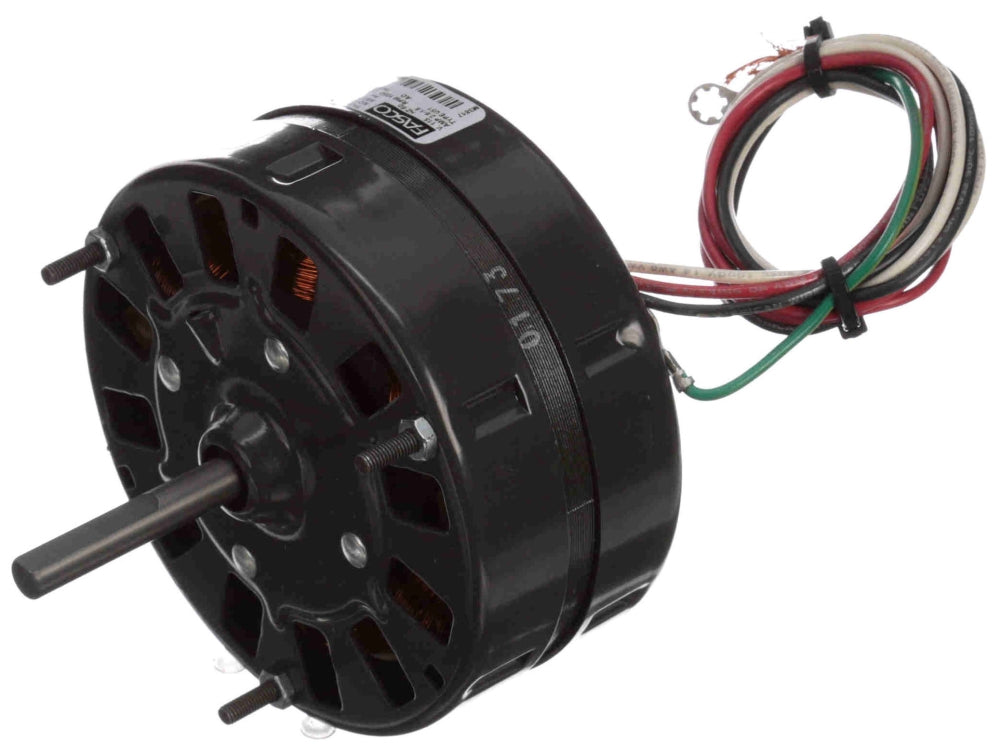

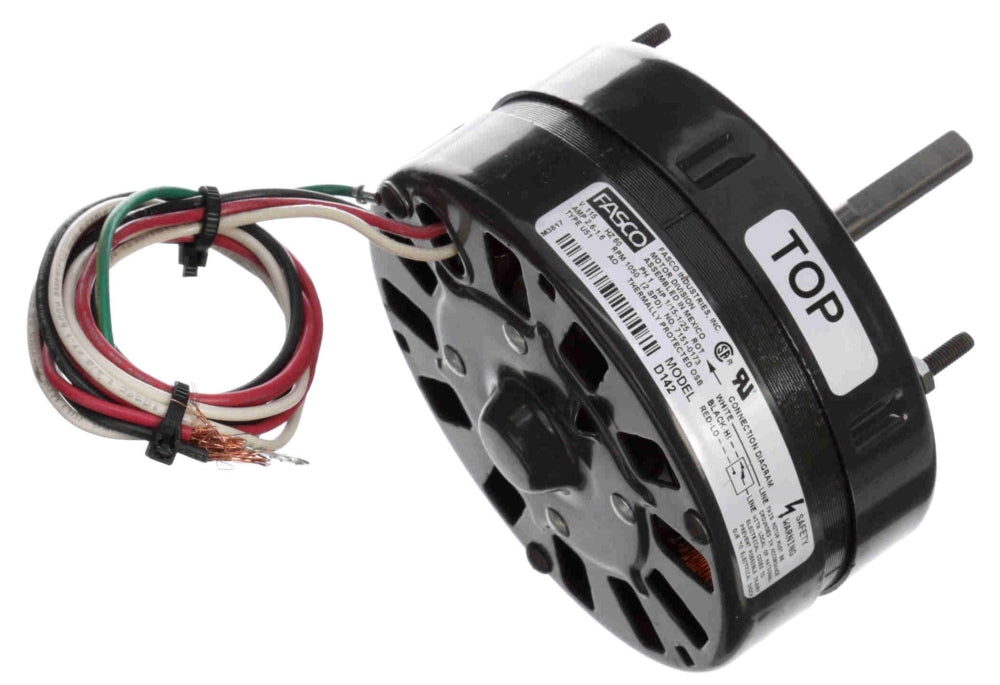

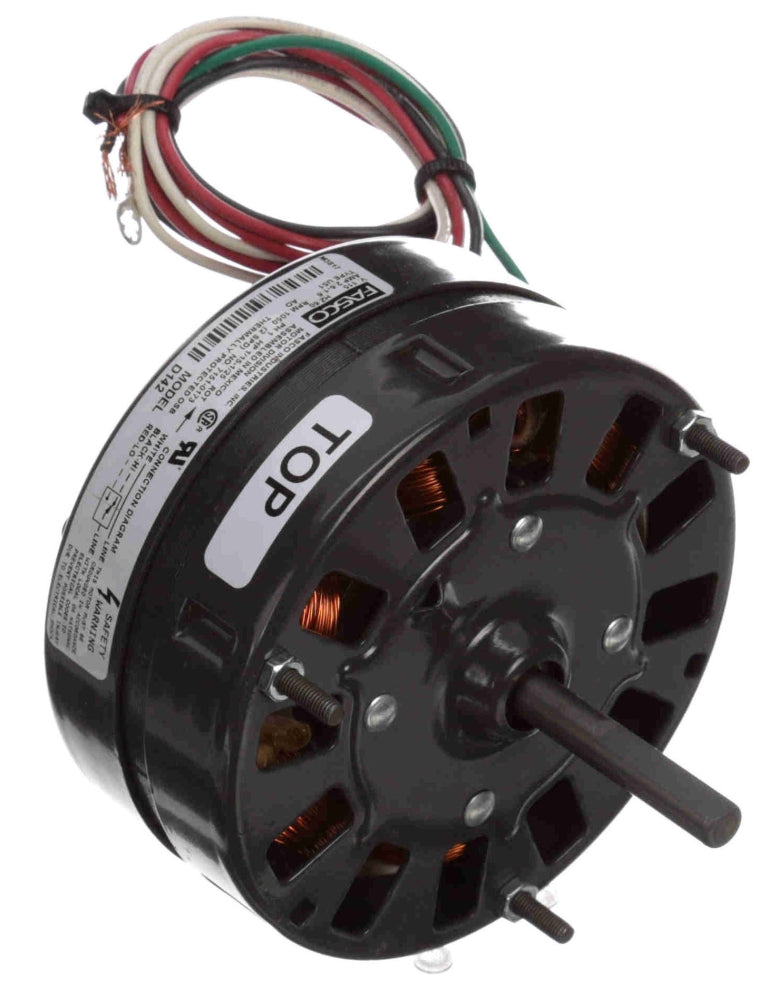

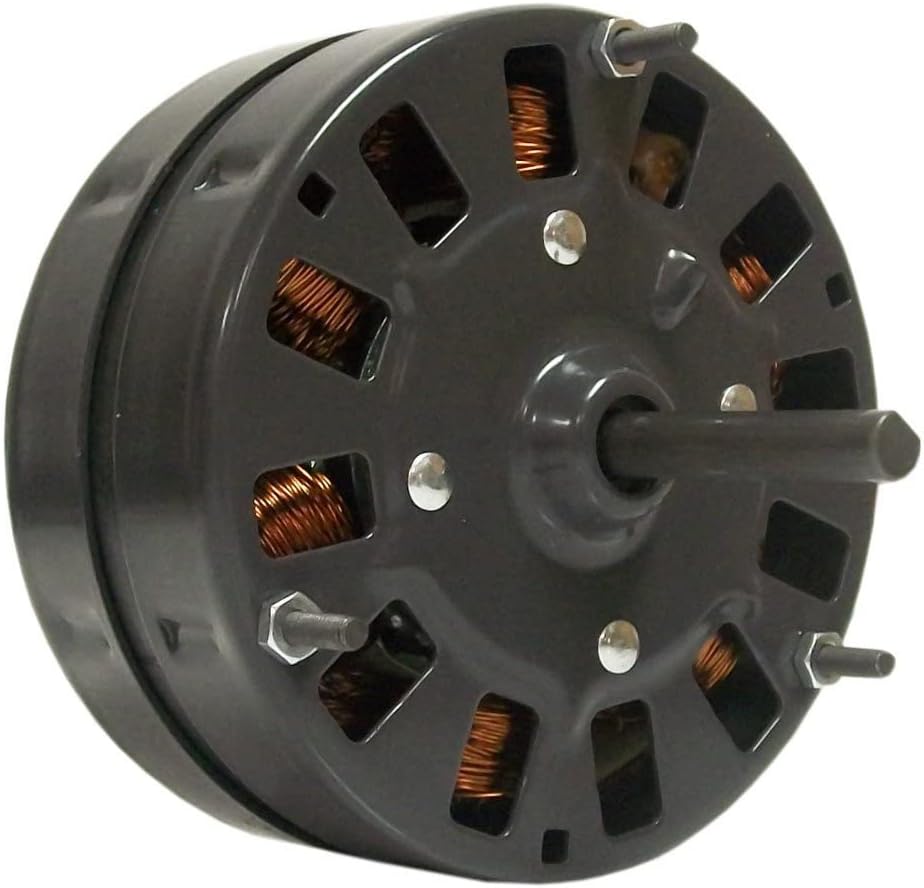

Fasco D142 General Purpose Fan Motor Shaded Pole 1/15 HP 1050 RPM 115 VAC 2-Speed

Product Description

The Fasco D142 is a unit heater motor with a power rating of one-fifteenth horsepower and a speed of one thousand fifty revolutions per minute. This motor operates on one hundred fifteen volts and features a shaded pole design. Suitable for a variety of applications, the D142 is suitable for air-over cooling and is thermally protected for enhanced safety.

• Power Rating: 1/15 HP
• Speed: 1050 RPM
• Voltage: 115 VAC

Product Highlights

The Fasco D142 is designed for durability and efficiency in unit heating systems. It provides effective performance in both ventilation and heating tasks.

Product Information

Standard Information

• Brand: Fasco
• Model Number: D142

Technical Specifications

• Power Rating: 1/15 HP, 1/25 HP
• Speed Rating: 1050 RPM
• Voltage Rating: 115 Volt AC 1-Phase
• Frequency Rating: 60 Hertz
• Motor FLA: 2.6 Amp, 1.6 Amp
• NEMA Frame Size: 42
• Weight: 5 Pounds
• Application: Unit Heater
• Insulation Class: A
• Mounting: Extended Stud
• Bearings: Sleeve (Drive End/Opposite Drive End)
• Shaft Size: 0.375 Inch Diameter x 2.47 Inch Length
• Rotation: Clockwise Shaft End
