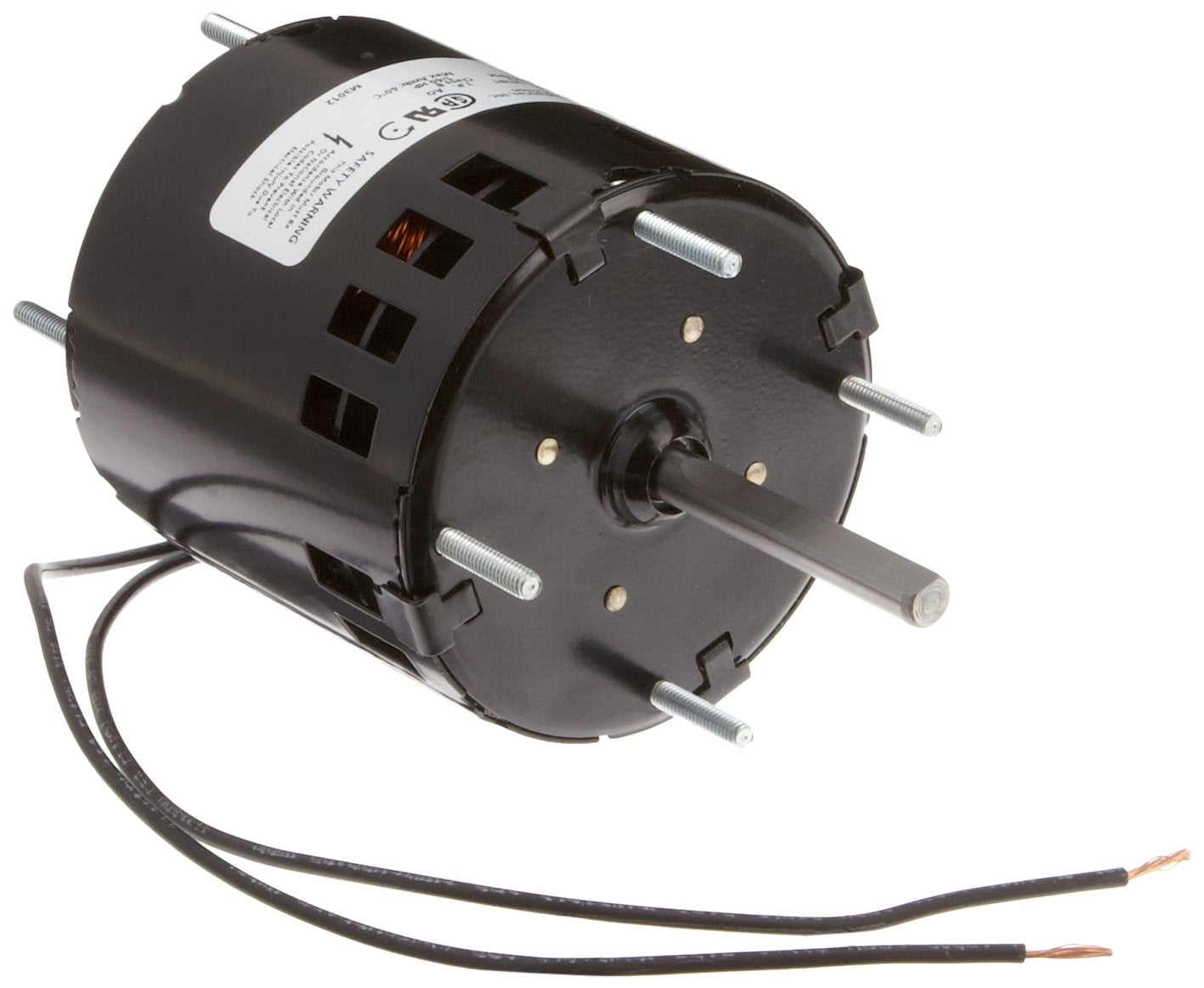

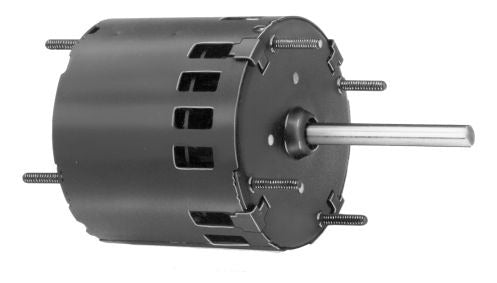

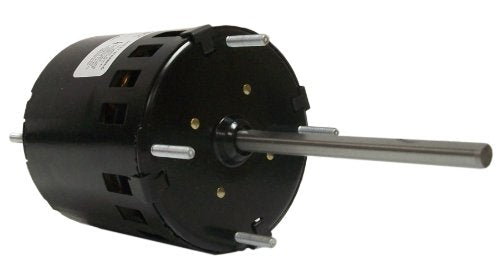

Fasco D131 3.3 Frame Open Ventilated Shaded Pole Motor 1/40HP 1500 RPM 115V 60Hz 1A CCW Rotation

Product Description

The Fasco D131 motor is equipped with a 3.3-inch open ventilated frame and a shaded pole design. It operates at 1/40 horsepower, delivering 1500 RPM with 115 volts at 60Hz and 1 amp. The motor features CCW rotation.

• 3.3-inch diameter open ventilated frame
• Shaded pole design
• Thermally protected

Product Highlights

The Fasco D131 motor is a reliable choice for various HVAC and blower applications. It offers stable performance with its shaded pole design and thermal protection.

Product Information

Standard Information

• Brand: Fasco
• MPN: D131

Technical Specifications

• Horsepower: 1/40
• Speed: 1500 RPM
• Voltage: 115 Volts
• Amperage: 1 Amp
• Phase: Single
• Bearing Type: Sleeve
• Enclosure: Open Air Over
• Mounting: Extended Studs
• Shaft Diameter: 0.313 inches
• Shaft Length: 2.3 inches
• Rotation: CCW Shaft End
• Insulation Class: B
• Ambient Temperature: 40 degrees Celsius
• Thermal Protection: Thermally Protected
• Frequency: 60 Hz
• Diameter: 3.3 inches
