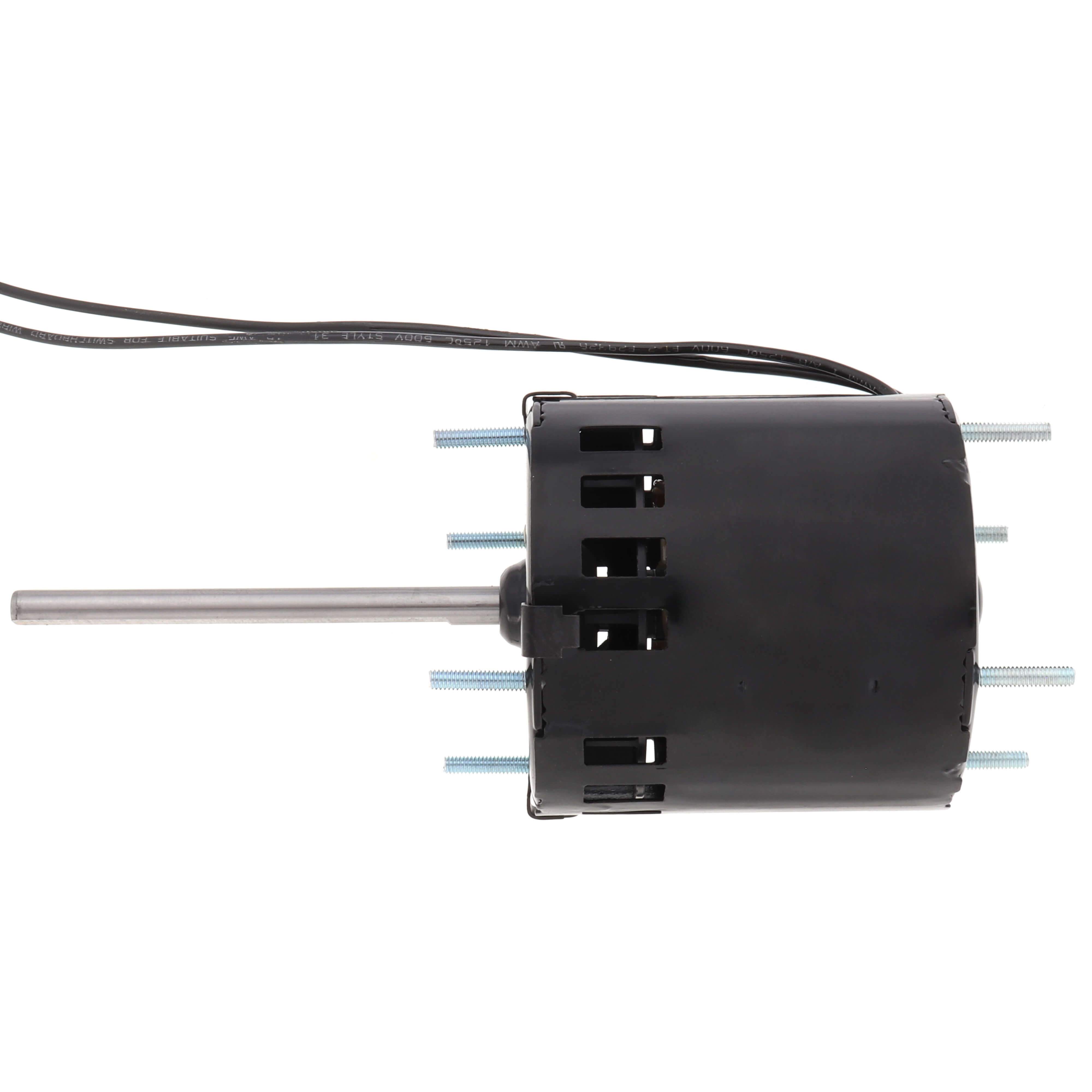

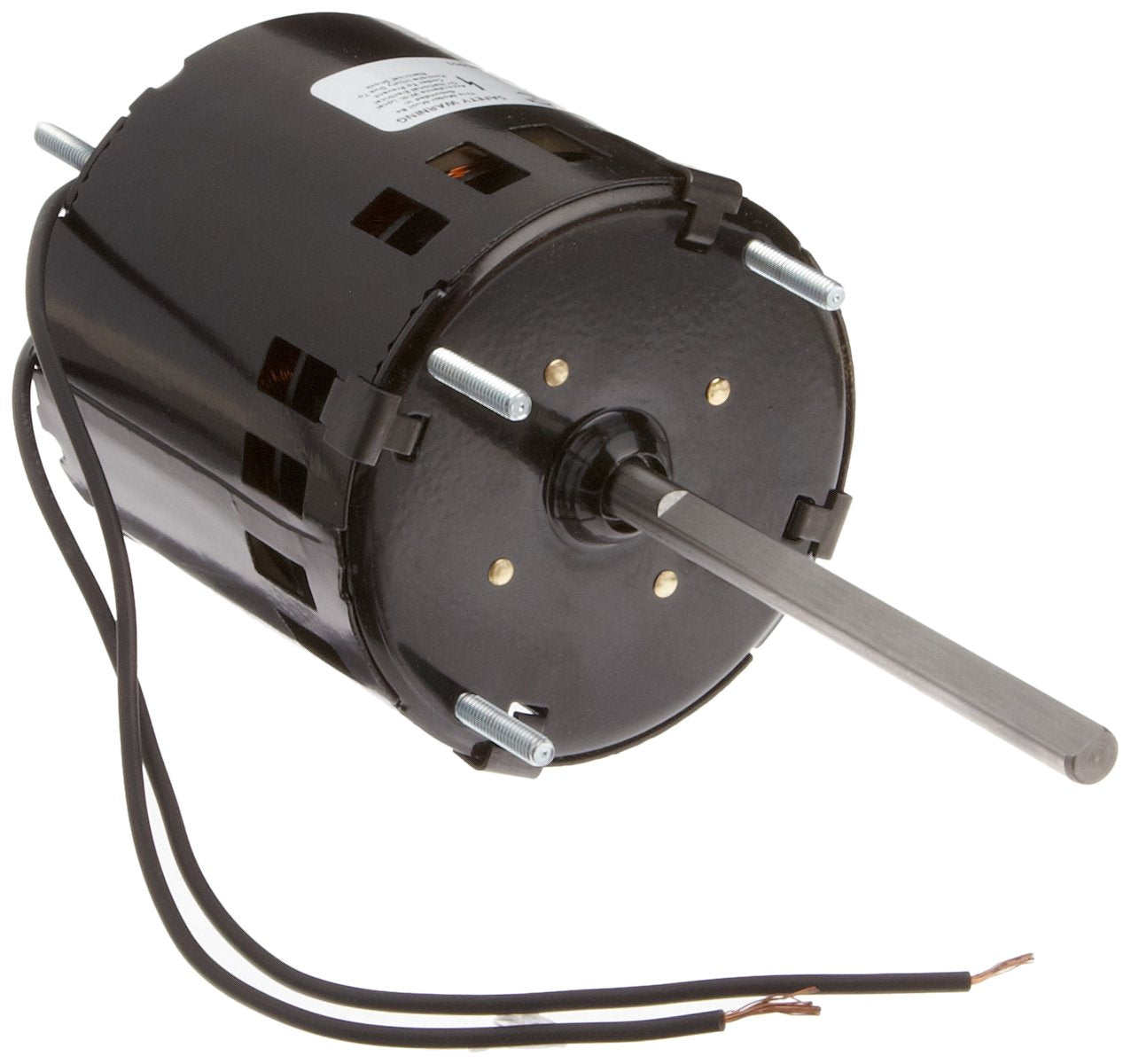

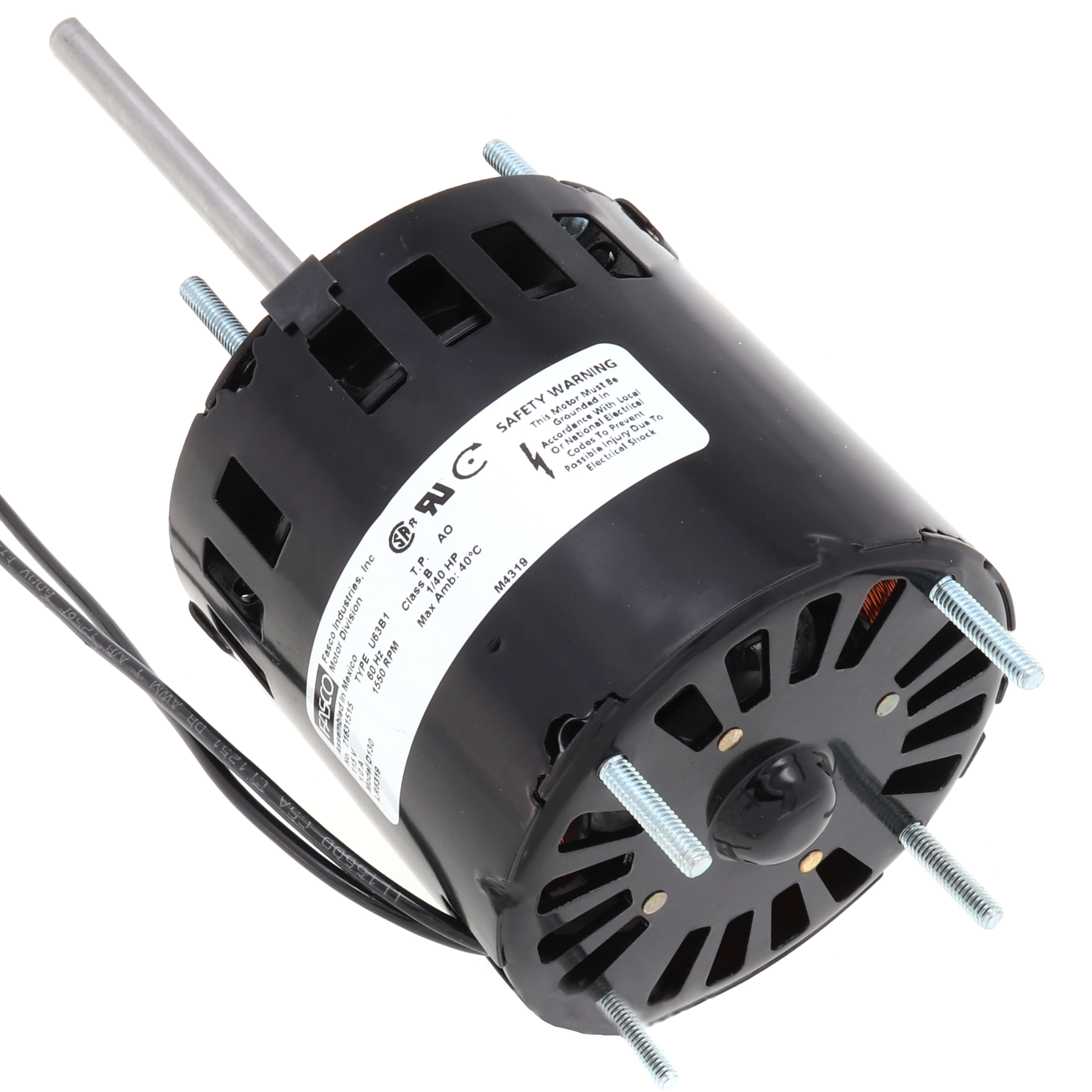

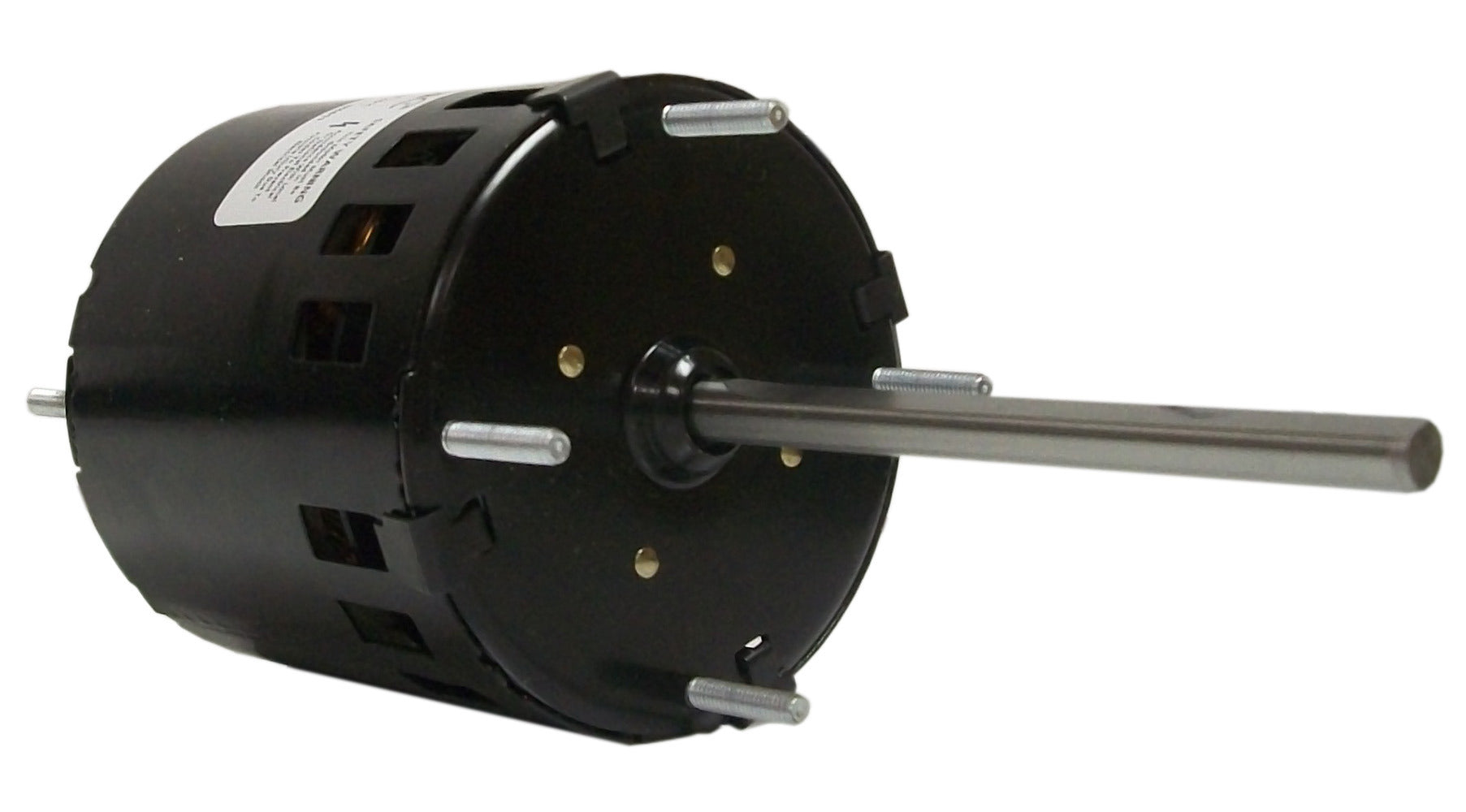

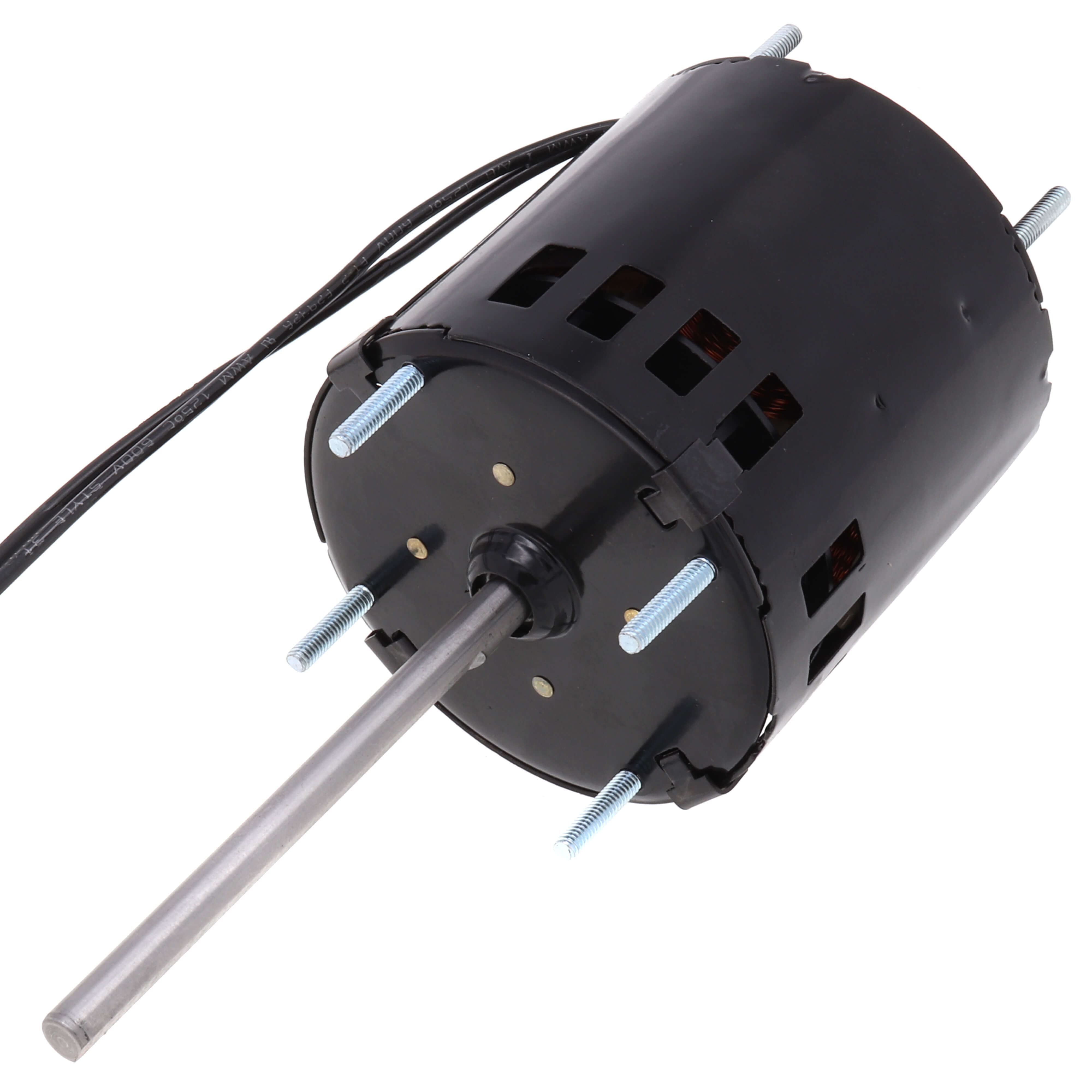

FASCO D130 Motor 1/40 HP 3 3/8 Diameter

Product Description

The FASCO D130 motor features a diameter of three and three-eighths inches and provides one-fortieth horsepower while operating at one hundred fifteen volts. This motor is designed with a shaded pole configuration and includes a sleeve bearing. With a speed of one thousand five hundred fifty RPM, it is suitable for condenser fan applications.

• Three and three-eighths inch diameter
• Operates at one hundred fifteen volts
• Thermally protected motor

Product Highlights

The FASCO D130 is widely used in HVAC systems for its reliable performance in cooling applications.

Product Information

Standard Information

• Motor Application: OEM Replacement
• Enclosure Type: Open Air-Over

Technical Specifications

• Speed: 1550 RPM
• Voltage: 115 Volts
• Horsepower: 1/40 HP
• Amperage: 1.00
• Rotation: Clockwise Shaft End
• Bearing Type: Sleeve
• Mounting: Extended Studs
• Frequency: 60 Hz
• Insulation Class: B
• Poles: 4
• Diameter: 3.3 inches
• Phase: Single
• Overload: Thermally Protected
• Frame Size: 3.3
• Duty: Air Over
• Certifications: UL, CSA
• Overall Length: 7.78 inches
• Shaft Diameter: 0.313 inches
• Shaft Length: 4.1 inches
• Country of Origin: Mexico
