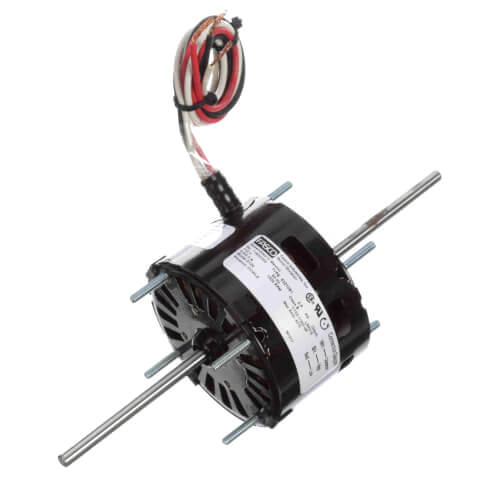

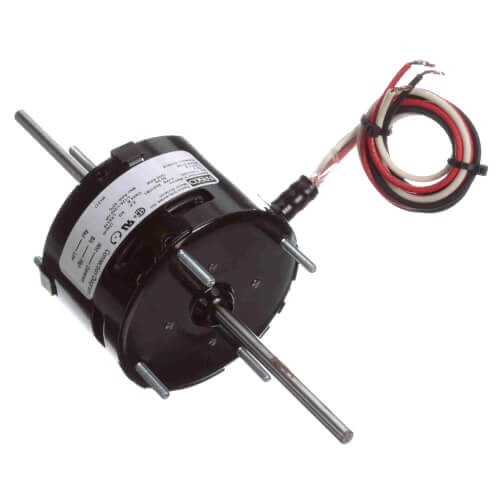

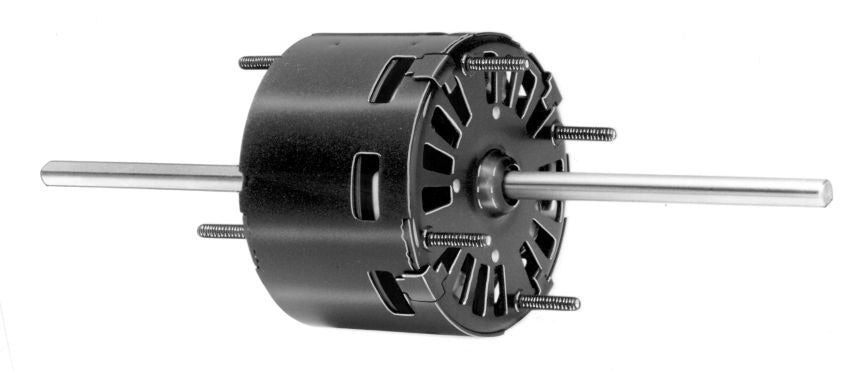

Fasco D129 Fan and Blower Motor 1/125 - 1/200 HP (3.3 inches)

Product Description

The Fasco D129 is a general purpose fan and blower motor designed for various applications. This motor operates at a voltage of one hundred fifteen and features a power rating of one over one hundred twenty-five to one over two hundred horsepower. It is suitable for HVAC systems, providing reliable performance and efficiency.

• Shaded pole design for improved efficiency.
• Compact dimensions of three point three inches in diameter and a length of ten point five inches.
• Equipped with sleeve bearings and extended studs for mounting.

Product Highlights

This motor is built for air over duty service and operates at a speed of fifteen hundred RPM. It is ideal for use in fans and blowers in various systems.

Product Information

Standard Information

• Brand: Fasco
• MPN: D129

Technical Specifications

• Power: 115V
• Horsepower: 1/125 - 1/200
• Diameter: 3.3 inches
• Length: 10.5 inches
• Width: 5.38 inches
• Height: 4.38 inches
• Amperage: 0.50/0.30
• RPM: 1500
• Bearings Type: Sleeve
• Insulation Class: B
• Type: Open Air Over
• Phase: Single
• Rotation: Clockwise Shaft End
• Ambient Temperature: 40°C
