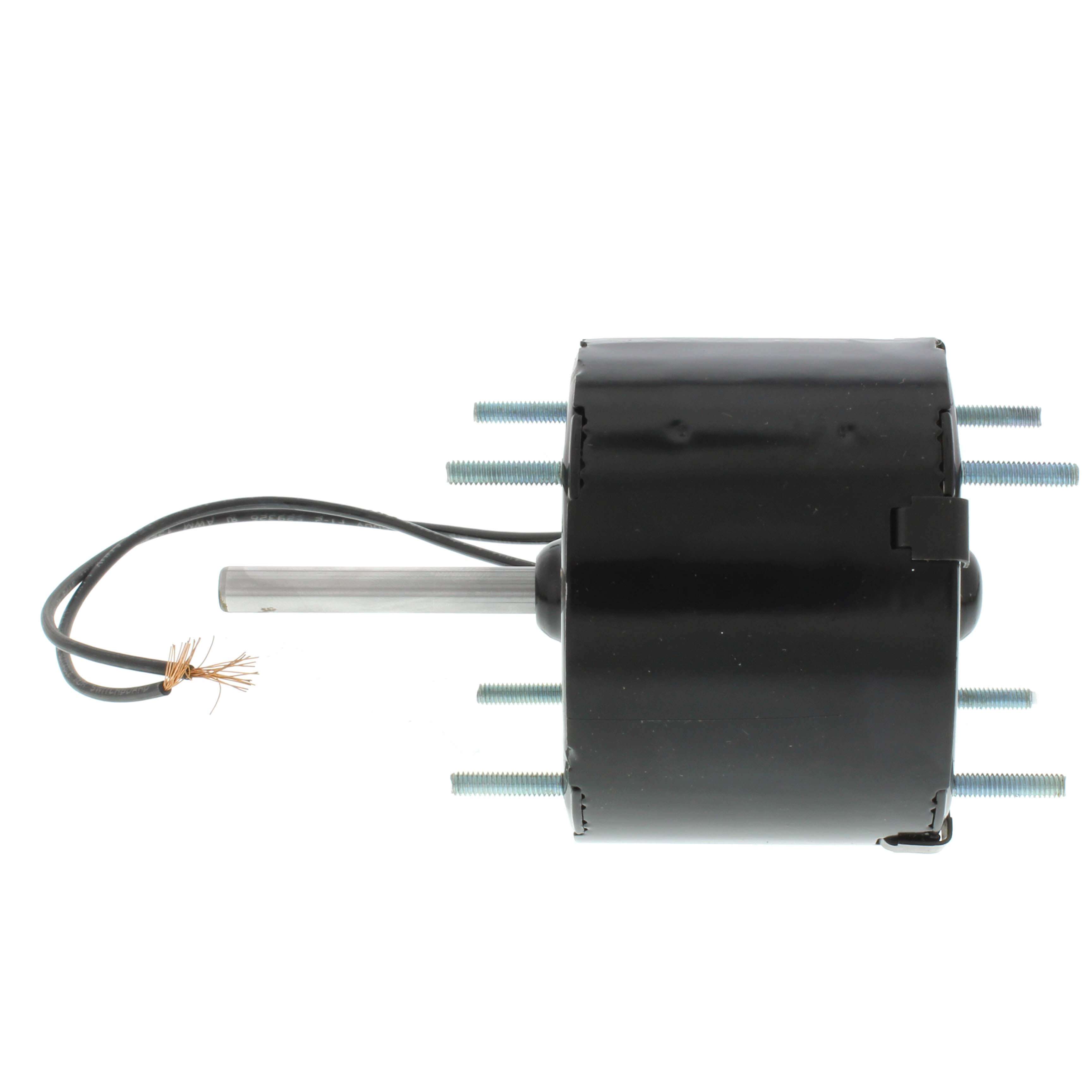

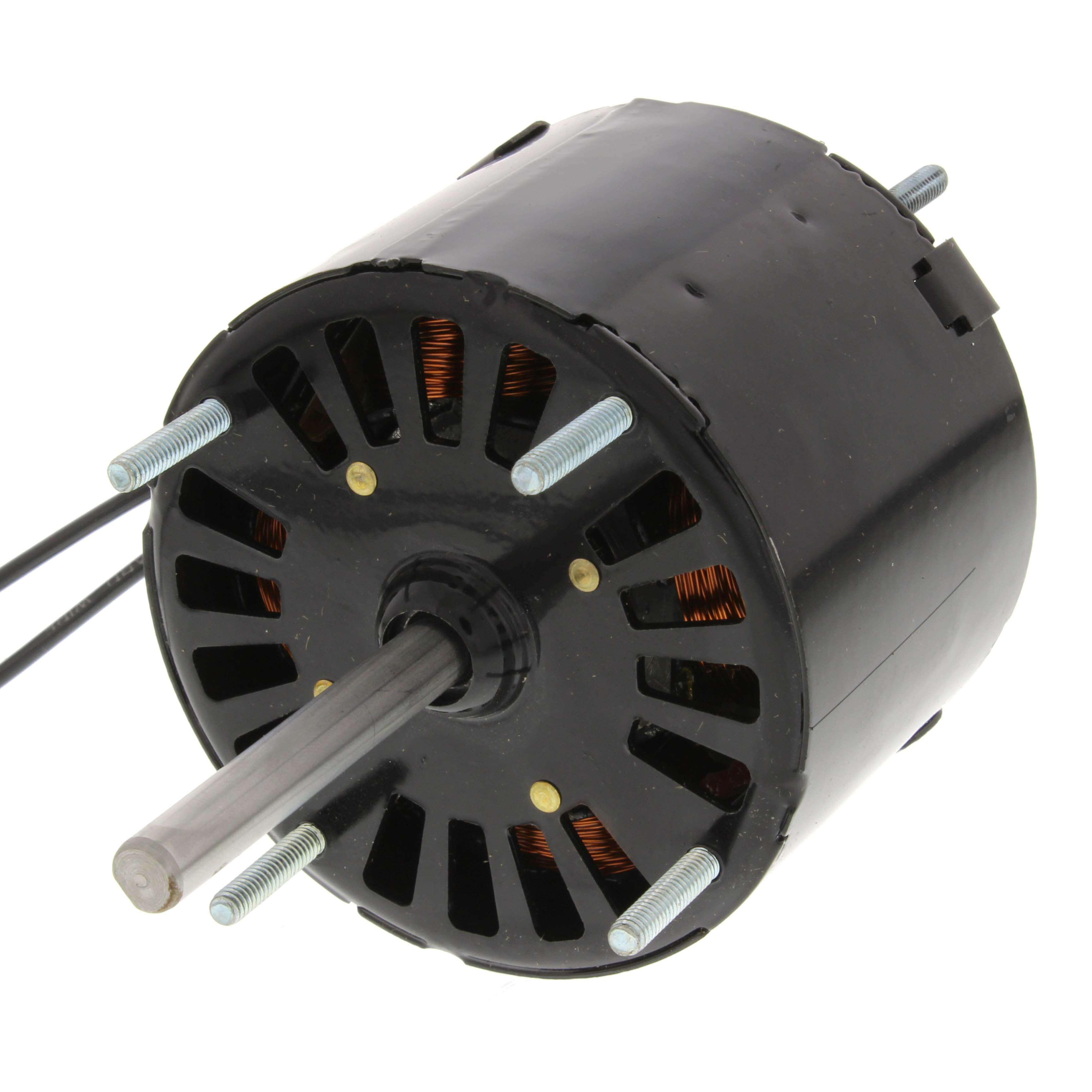

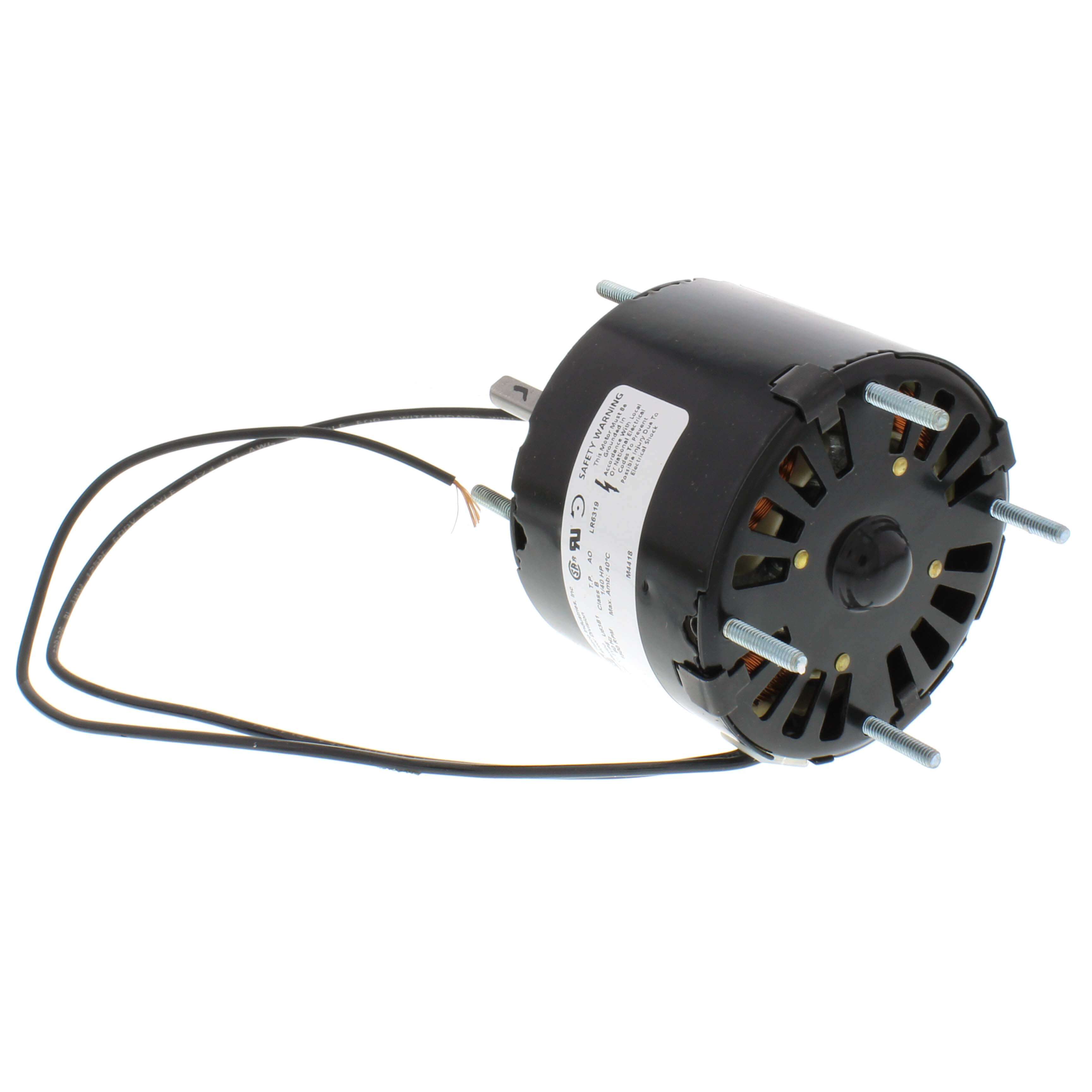

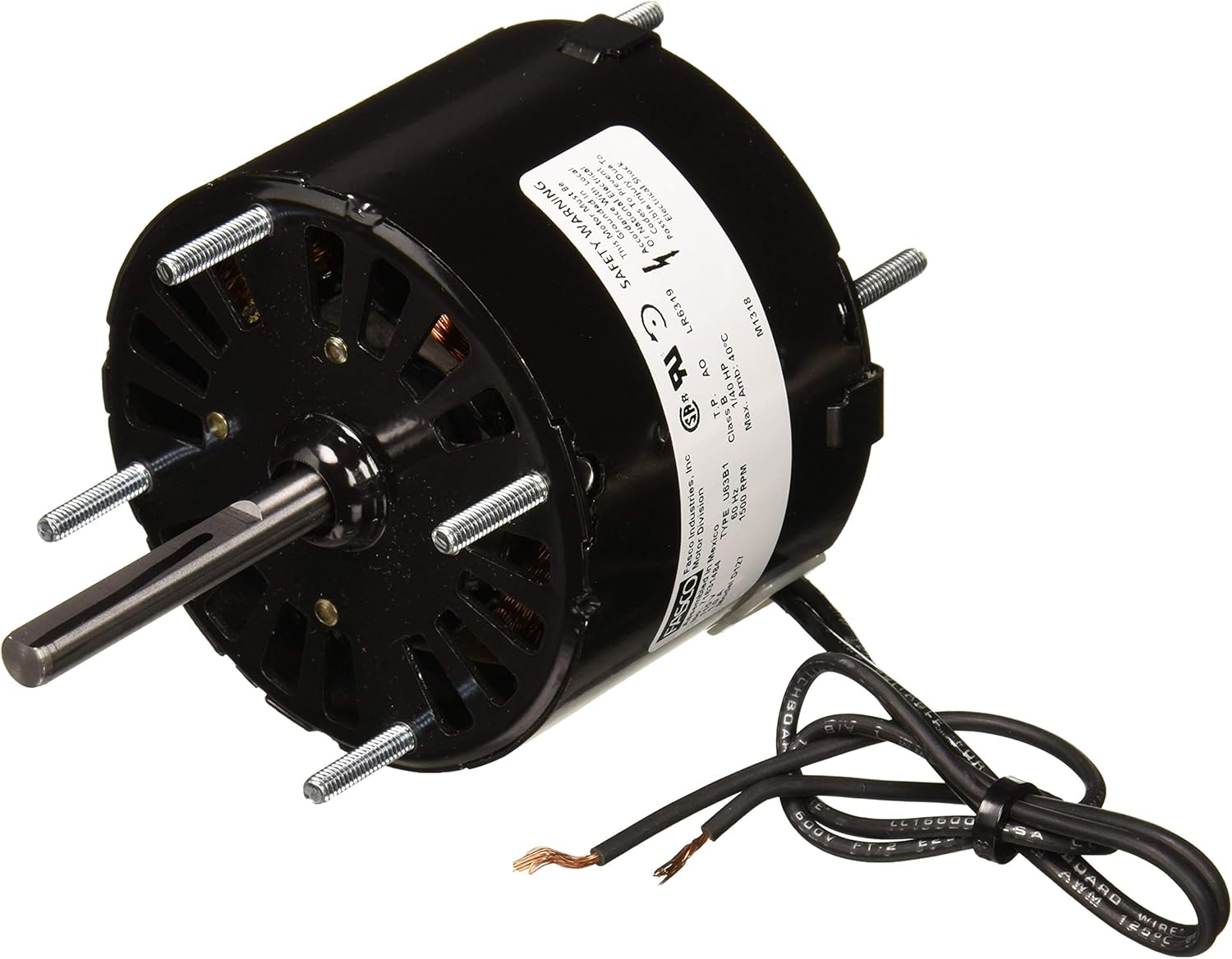

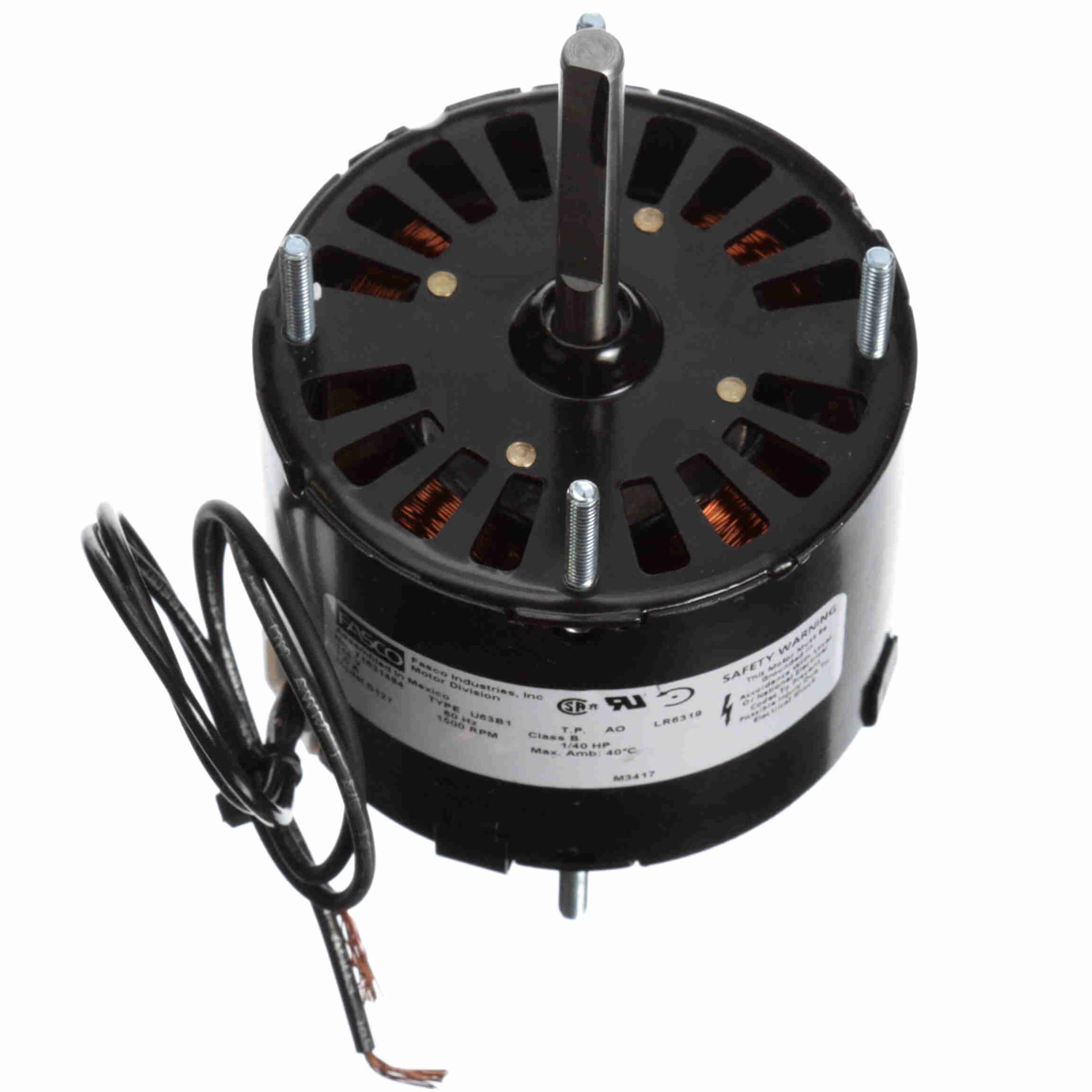

Fasco D127 General Purpose Motor 1/40 HP 3.3 Inches

Product Description

The Fasco D127 is a general-purpose motor designed for HVAC applications. With a diameter of three point three inches, this motor operates at one hundred fifteen volts and delivers one over forty horsepower at fifteen hundred RPM. It features an OAO enclosure, CCWSE rotation, and a sleeve bearing.

• 1/40 HP motor with 1500 RPM
• Operates at 115 Volts and 1 Amp
• Features sleeve bearing and OAO enclosure

Product Highlights

This motor is suitable for air over applications, making it ideal for use in various settings where reliable motor function is required.

Product Information

Standard Information

• Brand: Fasco
• Model Name: D127

Technical Specifications

• Speed: 1500 RPM
• Voltage: 115 VAC
• Amperage: 1.00
• Bearing Type: Sleeve
• Motor Diameter: 3.3 inches
• Height: 4.1 inches
• Width: 3.5 inches
• Length: 8.9 inches
• Rotation: CCWSE
• Enclosure Type: Open Air Over
• Operating Cycle: 60 Hz
• Frame Size: 3.3 inches
• Thermal Protection: Automatic protected
• Country of Origin: United States
