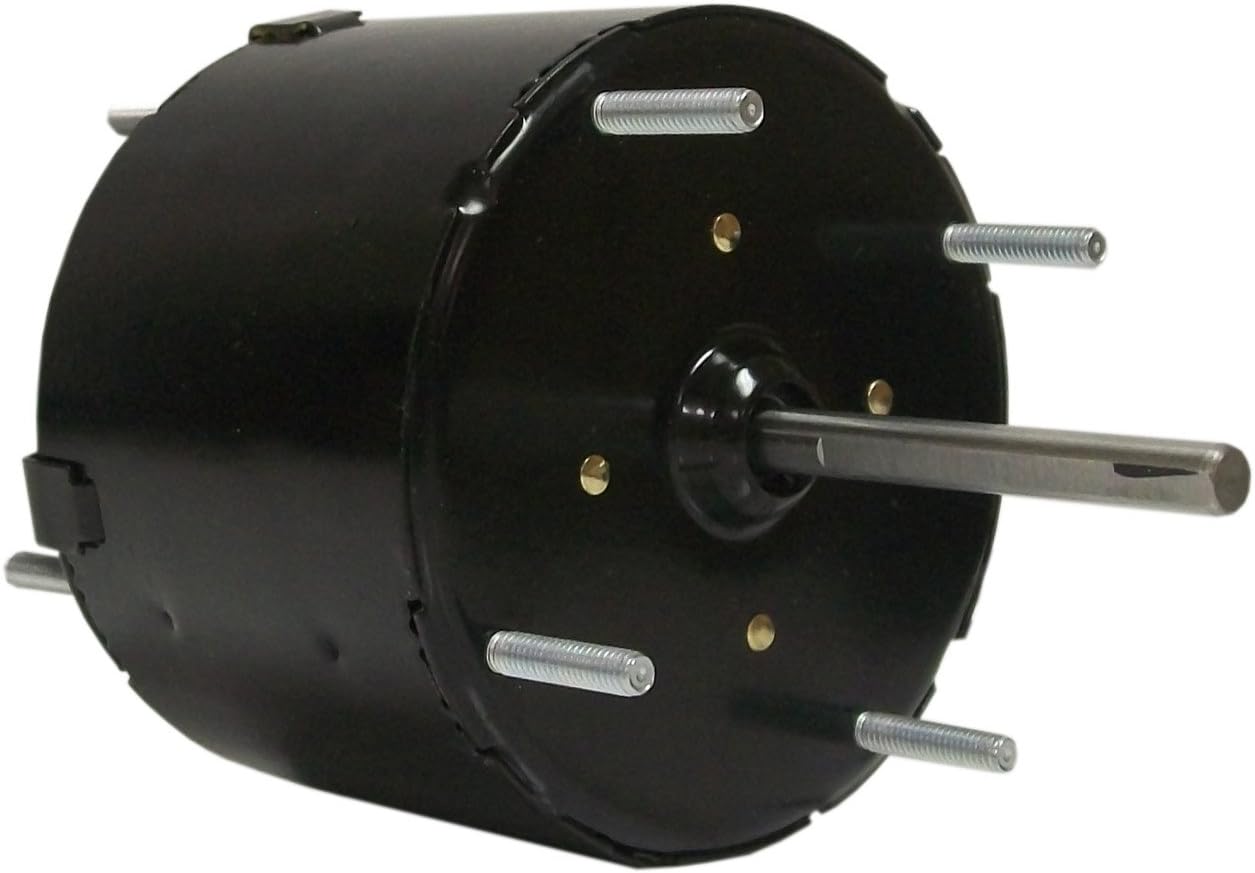

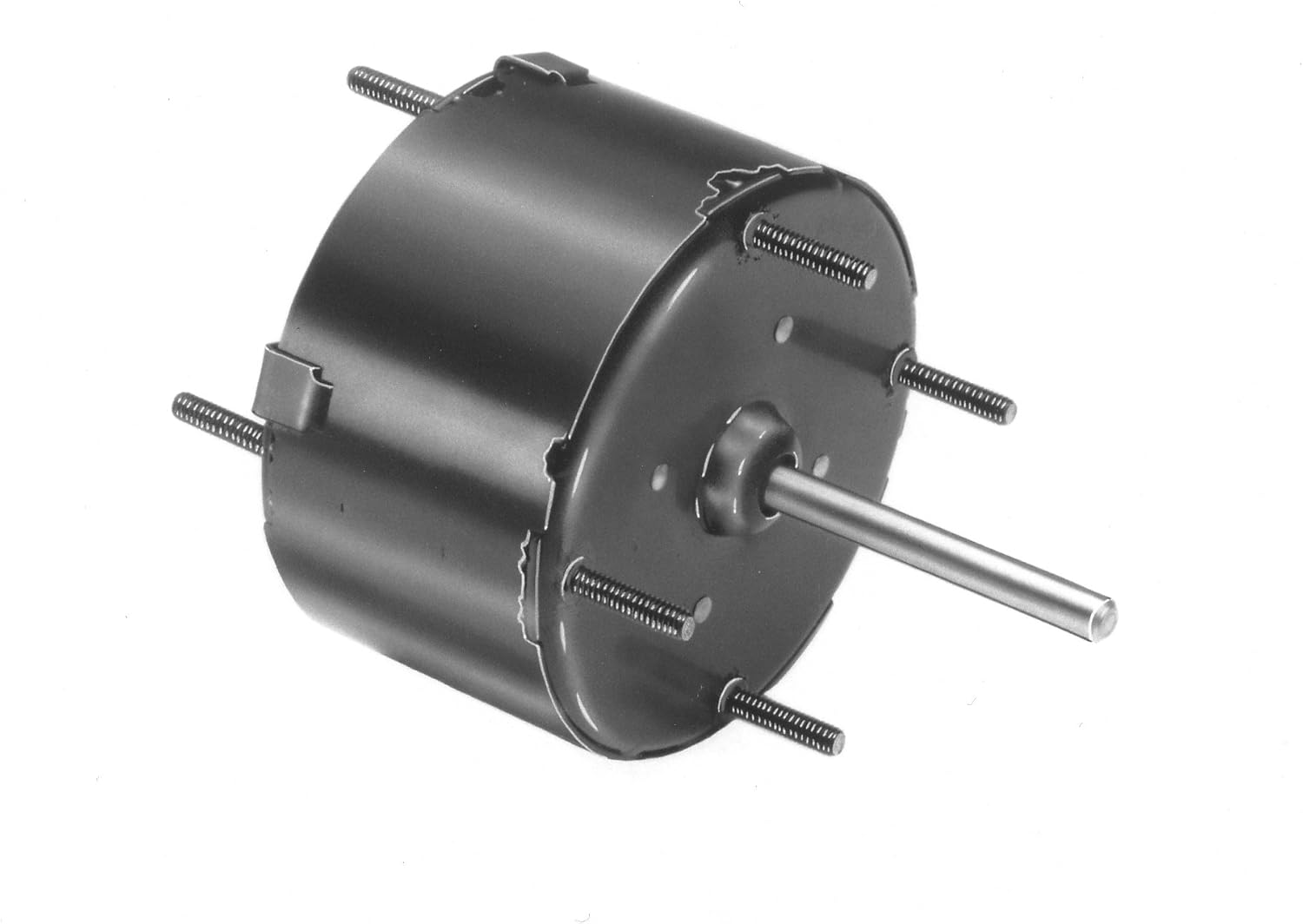

Fasco D125 General Purpose Motor 1/50 HP

Product Description

The Fasco D125 is a 3.3-Inch general purpose motor with 1/50 HP and 115 Volts. Operating at 1500 RPM, it features a totally enclosed design and CCWSE rotation with a sleeve bearing. This shaded pole motor is suitable for HVAC and industrial applications requiring reliable, low-horsepower operation.

• General Purpose Motor
• Sleeve Bearing
• CCW Rotation
• Thermally protected

Product Highlights

The Fasco D125 motor is designed for applications needing a compact and reliable motor.

Product Information

Standard Information

• Brand: FASCO
• Manufacturer Part Number: D125
• Country of Origin: Mexico

Technical Specifications

• Speed: 1500 RPM
• Voltage: 115 Volts
• Horsepower: 0.05 hp
• Model Name: D125
• Batteries Included?: No
• Batteries Required?: No
• Certification: Csa/Ul/Ulc
• Brand: Fasco
• Manufacturer: Fasco
• Product Type: ELECTRIC_MOTOR
• Part ID / MPN: D125
• Enclosure: TEAO
• Hertz: 60 Hz
• Amperage: 75 Amps
• Bearings: Sleeve Bearings
• Mounting: Stud
• Item Weight: 2.85 Pounds
• Material Type: Copper
• Phase: 1
• Output HP: 1/50 Hp
• Output KW: 0.01 kW
• Service Factor: 1
• Frame: 3.3
• Thermal Protection: Thermally Protected
• Ambient Temperature: 40 °C
• Current: 0.80 A
• Duty: Air Over
• Insulation Class: B
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 1
• Electrical Type: Shaded Pole
• Starting Method: Across The Line
• Poles: 4
• Rotation: Counterclockwise Shaft End
• Extended Studs: Extended Studs
• Drive End Bearing: Sleeve
• Opp Drive End Bearing: Sleeve
• Frame Material: Steel
• Shaft Type: Flat
• Overall Length: 5.08 in
• Frame Length: 2.24 in
• Shaft Diameter: 0.250 in
• Shaft Extension: 2.30 in
• Weight: 2.80 LB
• Packaged Length: 8.00 IN
• Packaged Width: 3.38 IN
• Packaged Height: 3.38 IN
• Motor Type: Shaded Pole
• Motor RPM 60 Hertz: 1500 rpm
• Full Load Amps: 4.1/3.2/2.5 FLA
• Rated RPM: 1500
• RPM Range: 1401-1500 rpm
• Certifications: UL and CSA
• Length Less Shaft: 2-1/2 in
• Speeds: 1
• Shaft Dimension (in.): 1/4 x 2 1/4
• Length Less Shaft (in.): 2 3/8
• Enclosure Type: Totally Enclosed
• Overload: Automatic
