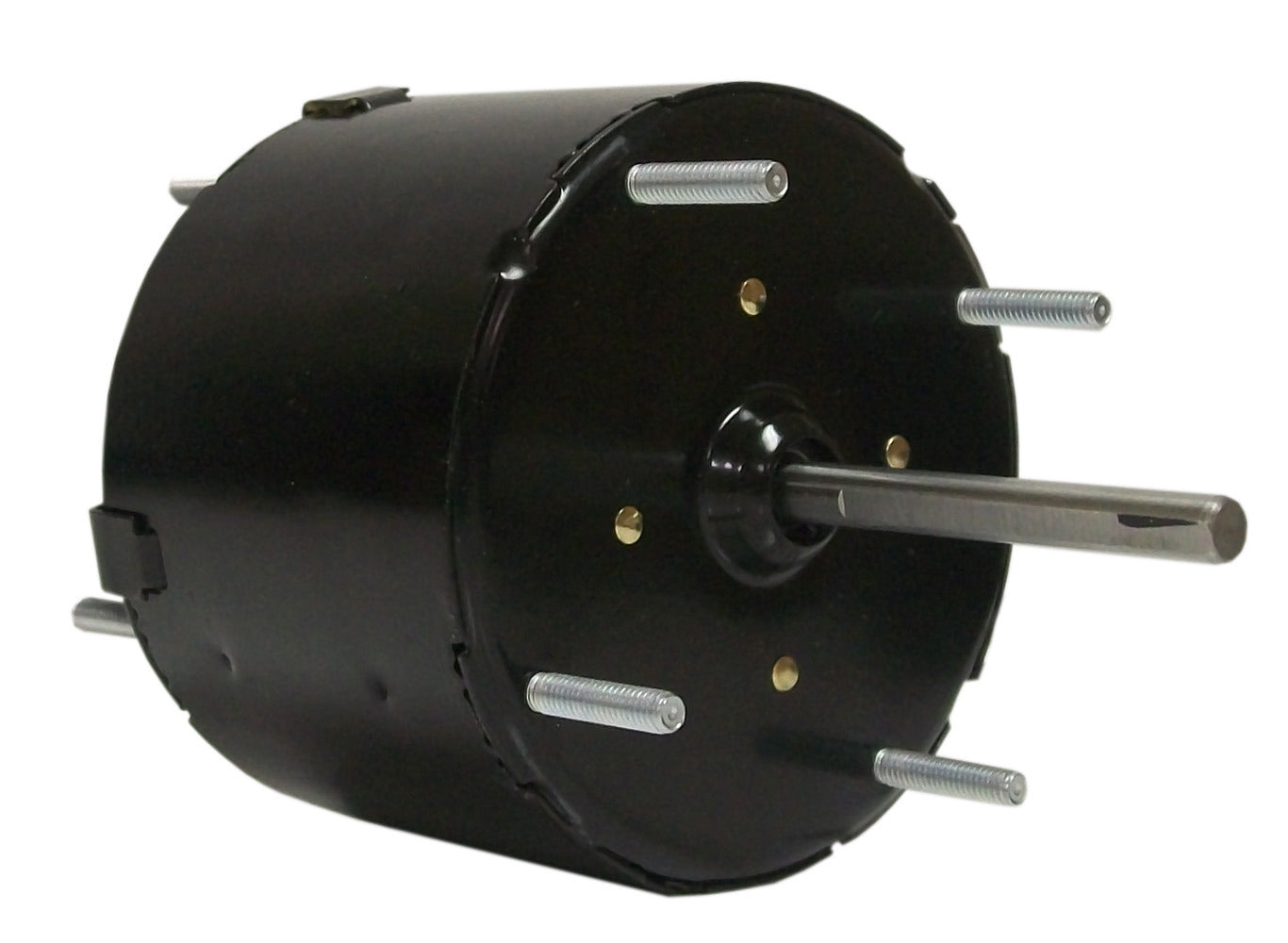

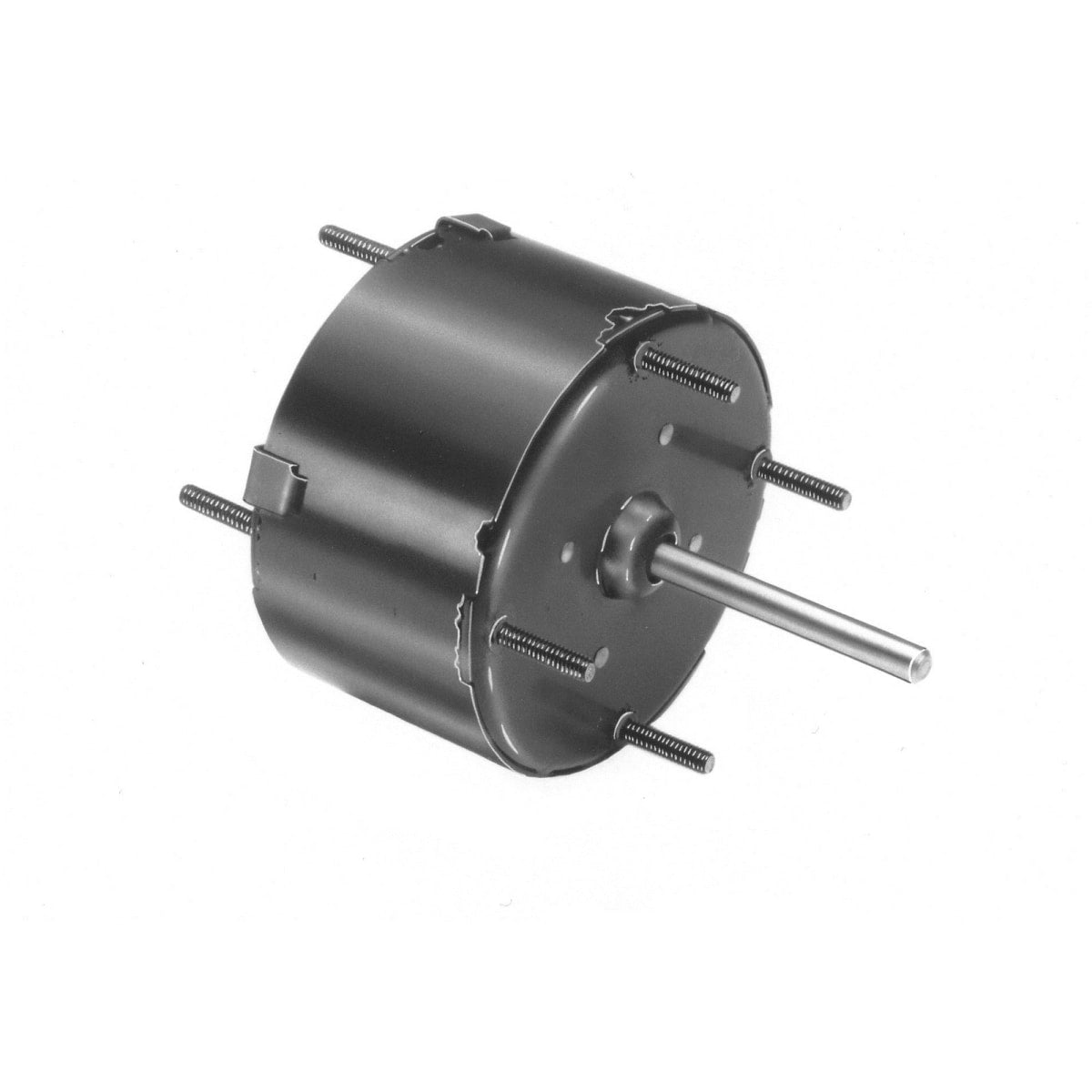

Fasco D125 Fan and Blower Motor 1/50 HP 115 Volts 1500 RPM

Product Description

The Fasco D125 is a general-purpose motor designed for various HVAC applications. This motor operates at 1/50 horsepower and reaches a speed of 1500 RPM. It is a shaded pole motor, ideal for direct drive fan and blower configurations. The unit is rated for 115 volts and has a counterclockwise shaft end rotation.

• Power: 1/50 HP
• Speed: 1500 RPM
• Voltage: 115 V

Product Highlights

This fan and blower motor features a totally enclosed air-over design, ensuring efficient operation in a variety of environments. The thermally protected motor is equipped with sleeve bearings for reliable performance and durability.

Product Information

Standard Information

• Manufacturer: Fasco
• MPN: D125

Technical Specifications

• Power Rating: 0.02 HP
• Frame Size: 3.3 inches
• Amperage: 0.80
• Motor Design: Shaded Pole
• Insulation Class: B
• Max Ambient Temp: 40 °C
• Enclosure Type: Totally Enclosed Air-Over
• Shaft Diameter: 0.25 inches
• Shaft Length: 2.25 inches
• Mounting Type: Extended Studs
