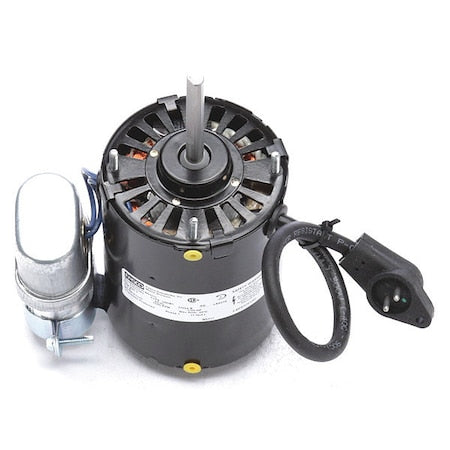

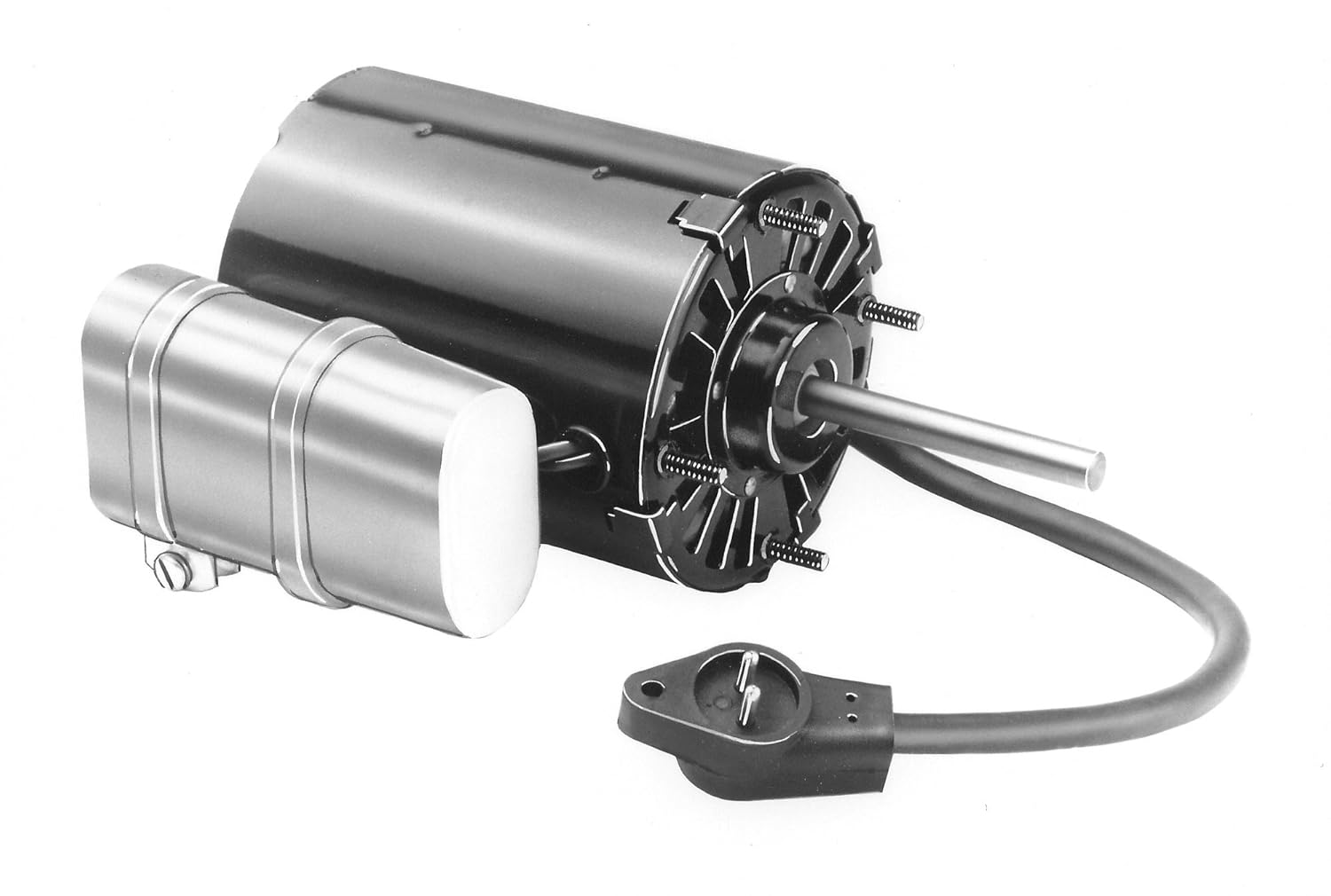

Fasco D1245 3.3 Frame Open Ventilated Permanent Split Capacitor Evaporator Coil and Refrigeration Fan Motor with Sleeve Bearing 1/20HP 1550rpm 208-230V 60Hz 0.3 amps

Product Description

The Fasco D1245 is a 3.3 frame open ventilated permanent split capacitor evaporator coil and refrigeration fan motor. This motor comes with a sleeve bearing and operates at 1/20 HP with a speed of 1550 RPM, making it suitable for evaporator coil and refrigeration applications. It operates on a voltage range of 208-230V at 60Hz, drawing 0.3 amps. Automatic thermal protection, counterclockwise shaft end rotation, and an included 4M 370V capacitor enhance its reliability.

• Open ventilated design
• Thermally protected
• Counterclockwise shaft end rotation

Product Highlights

Suitable for evaporator coils and refrigeration systems that require a reliable and efficient motor.

Product Information

Standard Information

• Manufacturer: Fasco Motors
• Brand: Fasco
• Voltage: 208-230V

Technical Specifications

• Speed: 1550 RPM
• Horsepower: 1/20 HP
• Voltage: 208-230V
• Amperage: 0.3 amps
• Bearing Type: Sleeve
• Enclosure: Open Air Over
• Rotation: Counterclockwise Shaft End
• Certification: CSA, UL recognized
• Ambient Temperature: 40 Degrees C
• Shaft Diameter: 5/16 inches
• Shaft Extension: 2.82 inches
• Mounting Type: Extended Studs
• Insulation Class: B
• Weight: 4.8 lbs
• Dimensions: 11 x 5.5 x 4.56 inches
