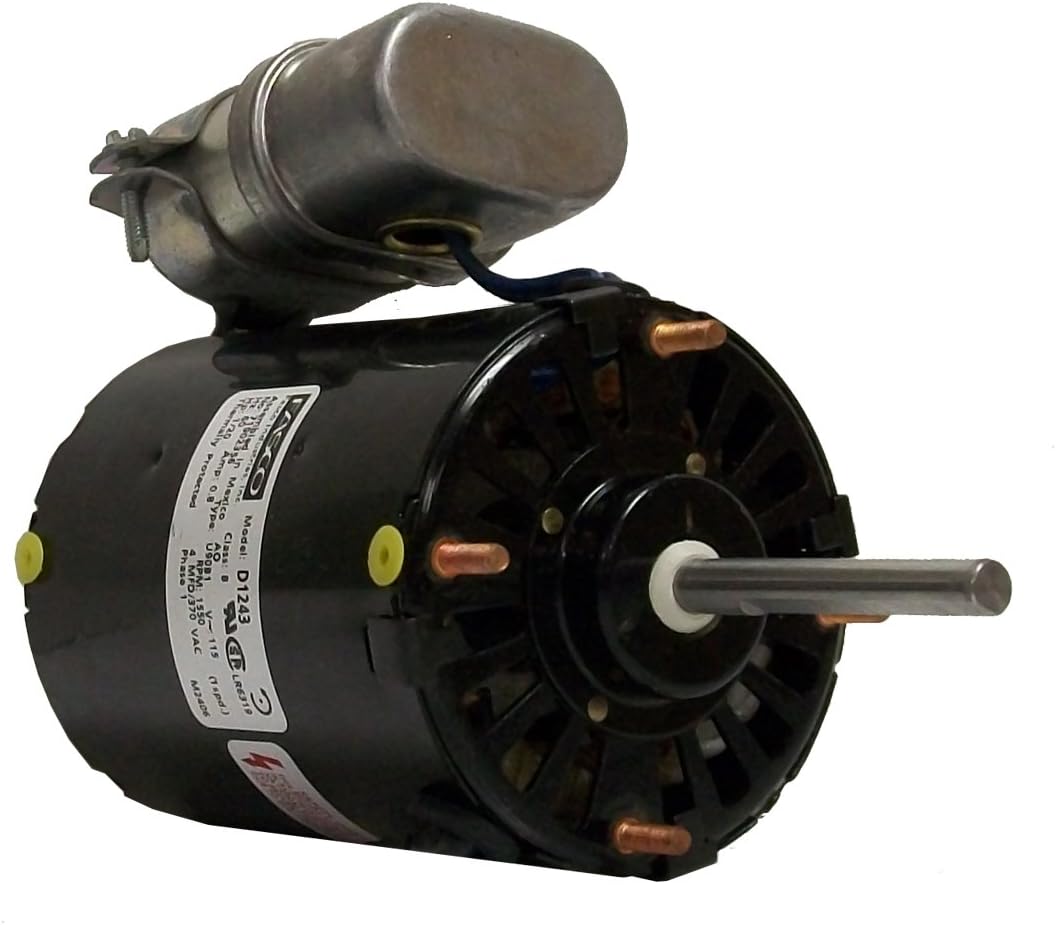

Fasco D1243 3.3 Inch Diameter PSC Motor 1/20 HP 115 Volts 1550 RPM

Product Description

The Fasco D1243 is a PSC motor designed for evaporator coils and refrigeration applications. This motor operates on 115 volts and delivers a speed of one thousand five hundred and fifty RPM. It has a diameter of three point three inches and is suitable for various cooling and heating systems.

• Permanent split capacitor design
• Counterclockwise shaft end rotation
• Automatic thermal protection

Product Highlights

This motor is UL recognized and CSA certified, ensuring high reliability and compliance with applicable safety standards.

Product Information

Standard Information

• Voltage: 115 Volts
• Power: 1/20 HP
• Number of Speeds: 1
• Amperage: 0.8 Amps
• RPM: 1550

Technical Specifications

• Frame Size: 3.3 inches
• Mounting Type: Extended Studs
• Bearings Type: Sleeve
• Shaft Diameter: 0.313 inches
• Motor Design: Air Over
• Insulation Class: B
• Max Ambient Temperature: 40 degrees Celsius
• Capacitor Required: Yes, included
