Fasco D1189 Krack OEM Motor 1/20hp 3.3 inches 115-208-230v SP CW Refrig

Product Description

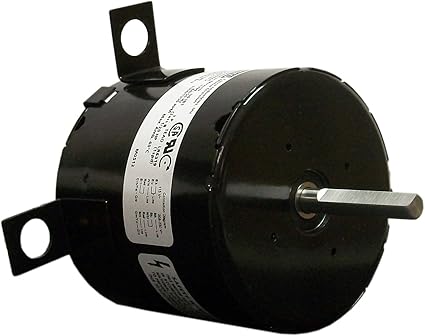

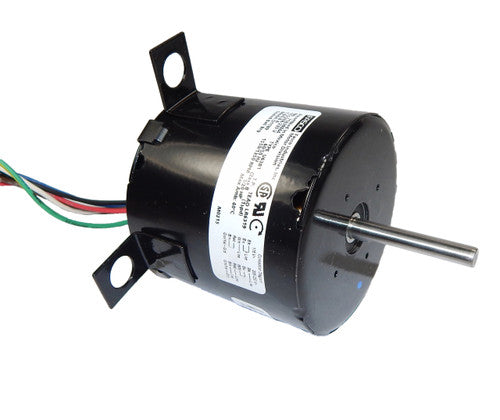

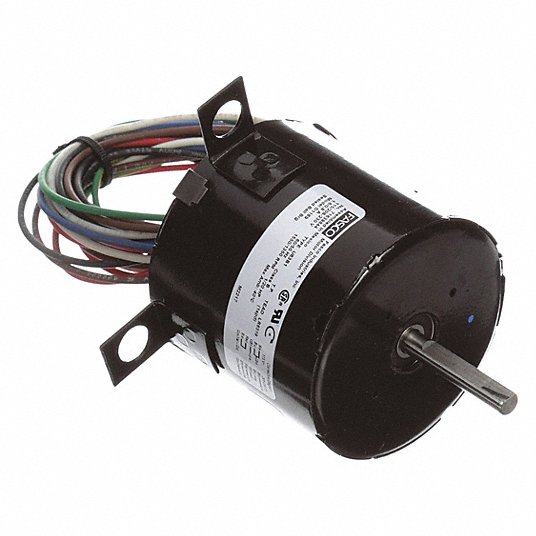

The FASCO D1189 Krack OEM Motor is a 1/20hp motor designed for HVAC applications. It operates at 115/208-230V and features a 3.3" diameter. This motor is an OEM replacement, ensuring consistent performance and correct installation. It has a single speed of 1550 RPM and a clockwise shaft end rotation.

• OEM replacement HVAC AC motor
• Matches equipment's existing motor
• Ensures consistent performance
• 1/20 HP, 115/208-230 Volts, 1550 RPM

Product Highlights

This FASCO motor is designed as a direct replacement for HVAC systems, ensuring proper fit and reliable operation.

Product Information

Standard Information

• Brand: FASCO
• Manufacturer Part Number: d1189
• Country of Origin: Mexico

Technical Specifications

• Application: HVAC
• Brand: FASCO
• Model Name: d1189
• Speed: 1550 RPM
• Voltage: 115/208-230 V
• Manufacturer Part Number: D1189
• Product Type: Condenser Fan
• Motor: Motor
• Compatible Brand: Fasco
• Compatible Manufacturer Part Number: 11528
• Phase: Single
• Motor Design: Shaded Pole
• Nameplate Horsepower @ 60 Hz: 1/20 hp
• Nameplate RPM @ 60 Hz: 1,550 RPM
• Nameplate Voltage @ 60 Hz: 115/208-230V AC
• Frame Size: 3.3
• Full Load Current @ 60 Hz: 1.6/0.80 A
• Shaft Diameter: 0.312 in
• Shaft Length: 1-5/8 in
• Capacitor Required: Capacitor Not Required
• Overall Length: 4.86 in
• Motor Shaft Rotation: CWSE
• Number of Shafts: 1
• Number of Speeds: 1
• Mounting Type: Lug
• Motor Thermal Protection: Auto
• Standards: CSA Certified; UL Recognized
• Ambient Temperature - Maximum: 40 °C
• Bearing Type: Ball
• Body Diameter: 3.4 in
• Frame Material: Steel
• Insulation Class: B
• Length Less Shaft: 3-3/16 in
• Motor Enclosure Type: Totally Enclosed Air-Over
• Nameplate Service Factor @ 60 Hz: 1
• Shaft Design: Flat
• Sub Application: Condenser Fan
• Output HP: 1/20 Hp
• Output KW: 0.04 kW
• Frequency: 60 Hz
• Current: 1.60/0.80 A
• Duty: Air Over
• Electrical Type: Shaded Pole
• Starting Method: Across The Line
• Poles: 4
• Rotation: Clockwise Shaft End
• Drive End Bearing: Ball
• Opp Drive End Bearing: Ball
• Frame Length: 2.95 in
• Shaft Extension: 1.65 in
