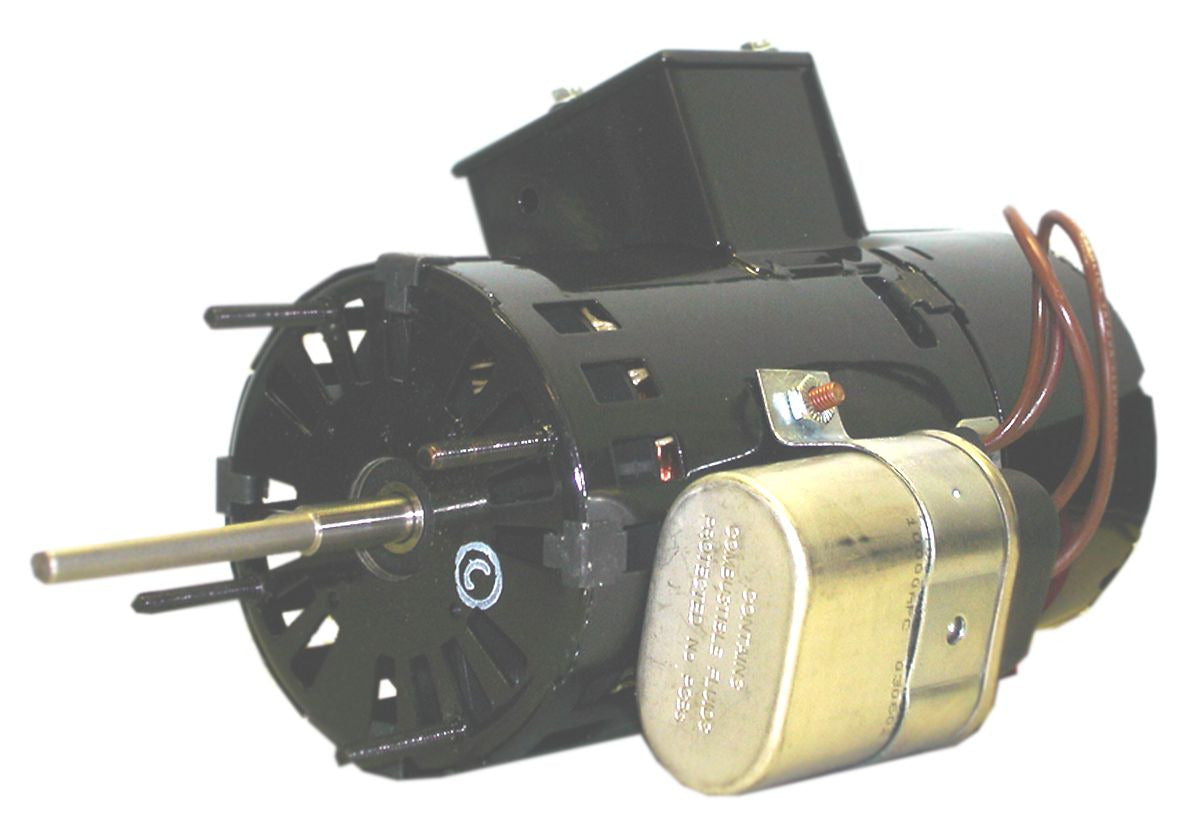

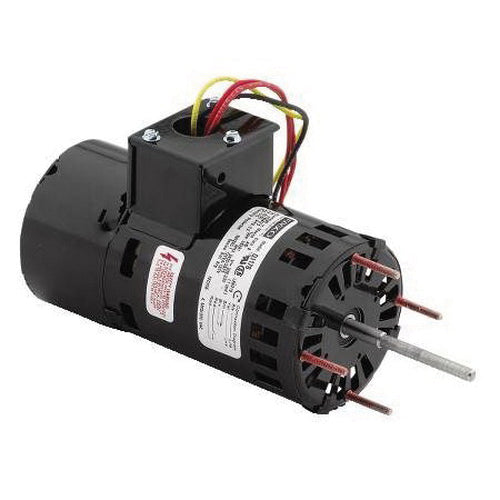

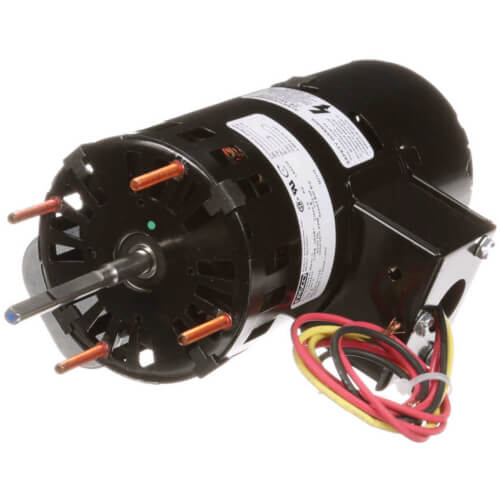

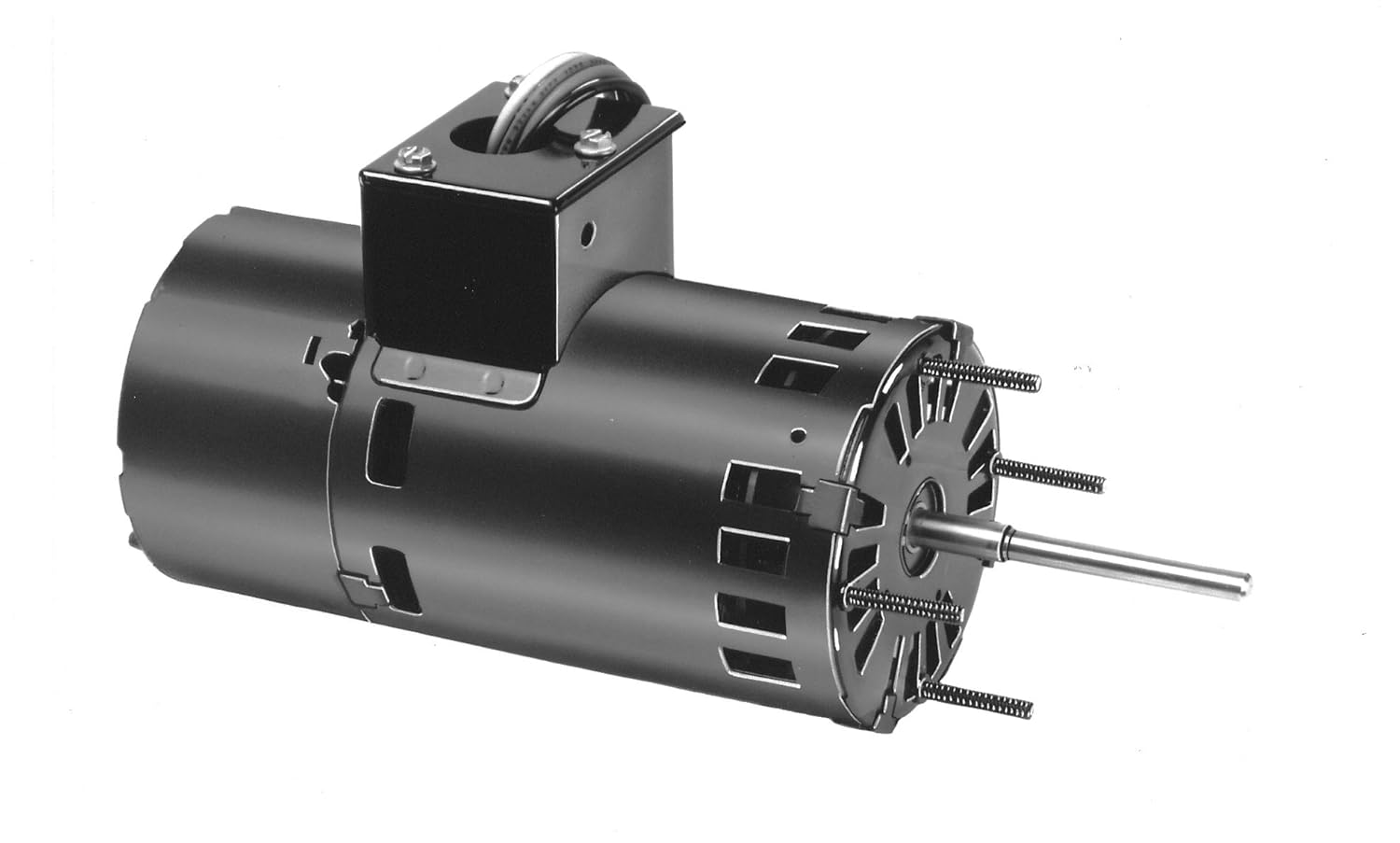

Fasco D1178 3.3 Frame Open Ventilated Permanent Split Capacitor OEM Replacement Motor with Sleeve Bearing, 1/16 HP, 3450 RPM, 208-230V, 60 Hz, .57 Amps

Product Description

The Fasco D1178 comes from a reputable brand and is designed as an open ventilated permanent split capacitor OEM replacement motor. It includes a sleeve bearing and operates at 1/16 horsepower. This motor runs at 3450 RPM with a voltage rating of 208-230 volts and 60 Hz frequency, drawing 0.57 amps.

• 1/16 horsepower motor
• 3450 RPM speed
• Open ventilated design

Product Highlights

This motor is suitable for HVAC applications, offering reliable performance and thermal protection. It can replace motors in various Carrier models and similar applications.

Product Information

Standard Information

• Brand: Fasco
• MPN: D1178
• Type: Permanent Split Capacitor Motor
• Phase: Single
• Voltage: 208-230V
• Frequency: 60Hz

Technical Specifications

• Horsepower: 1/16 HP
• Speed: 3450 RPM
• Bearing Type: Sleeve
• Amperage: 0.57
• Rotation: Clockwise Shaft End
• Mounting: Extended Studs
• Insulation Class: B
• Enclosure: Open Air Over
