Product Description

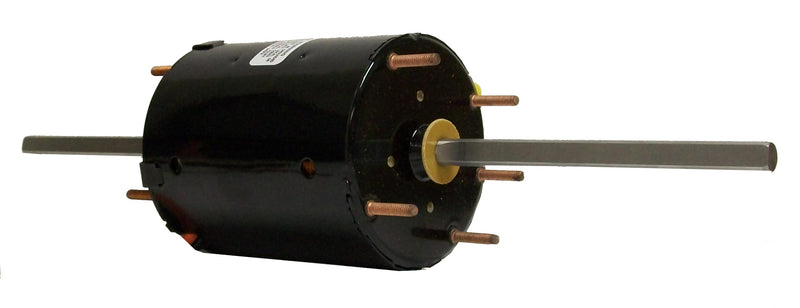

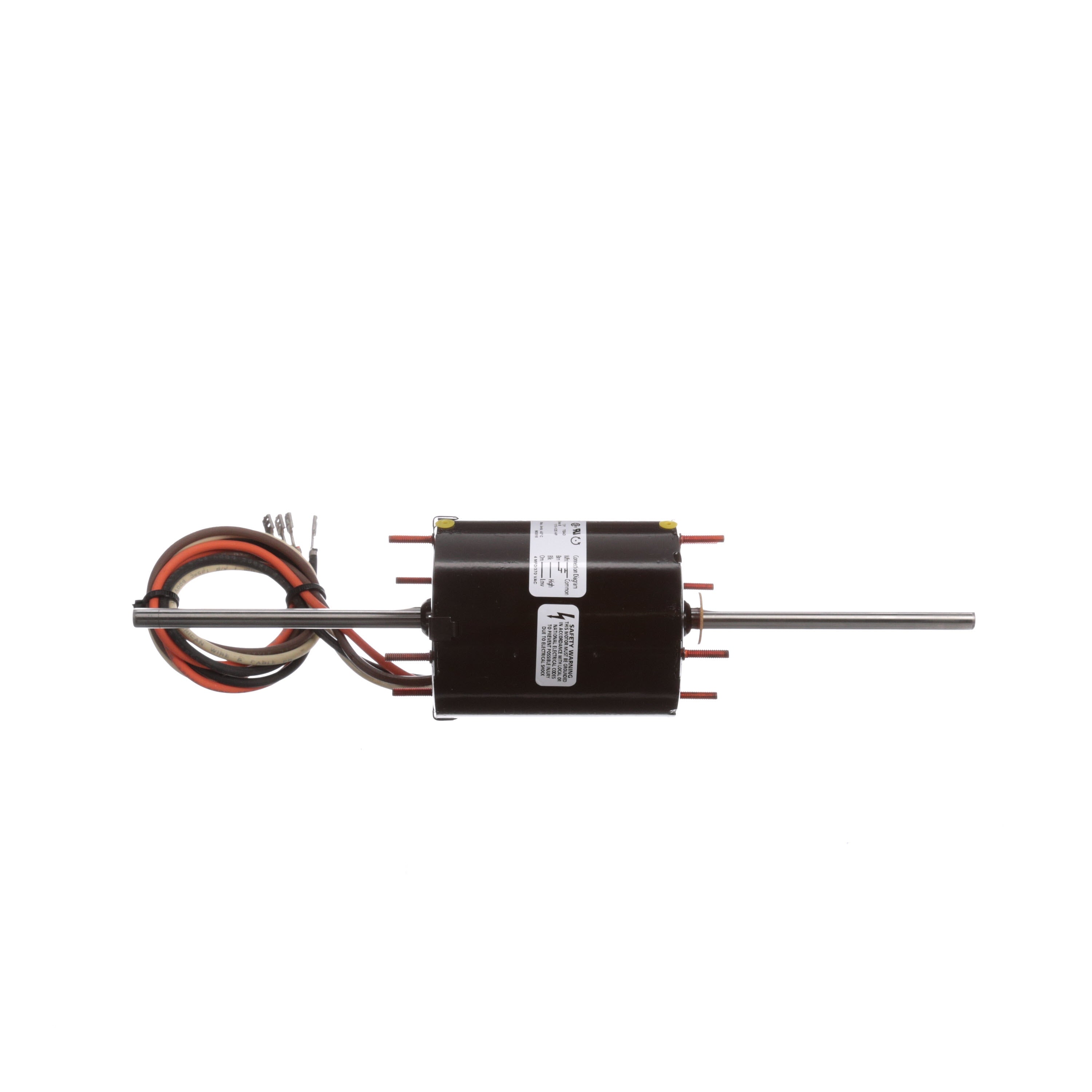

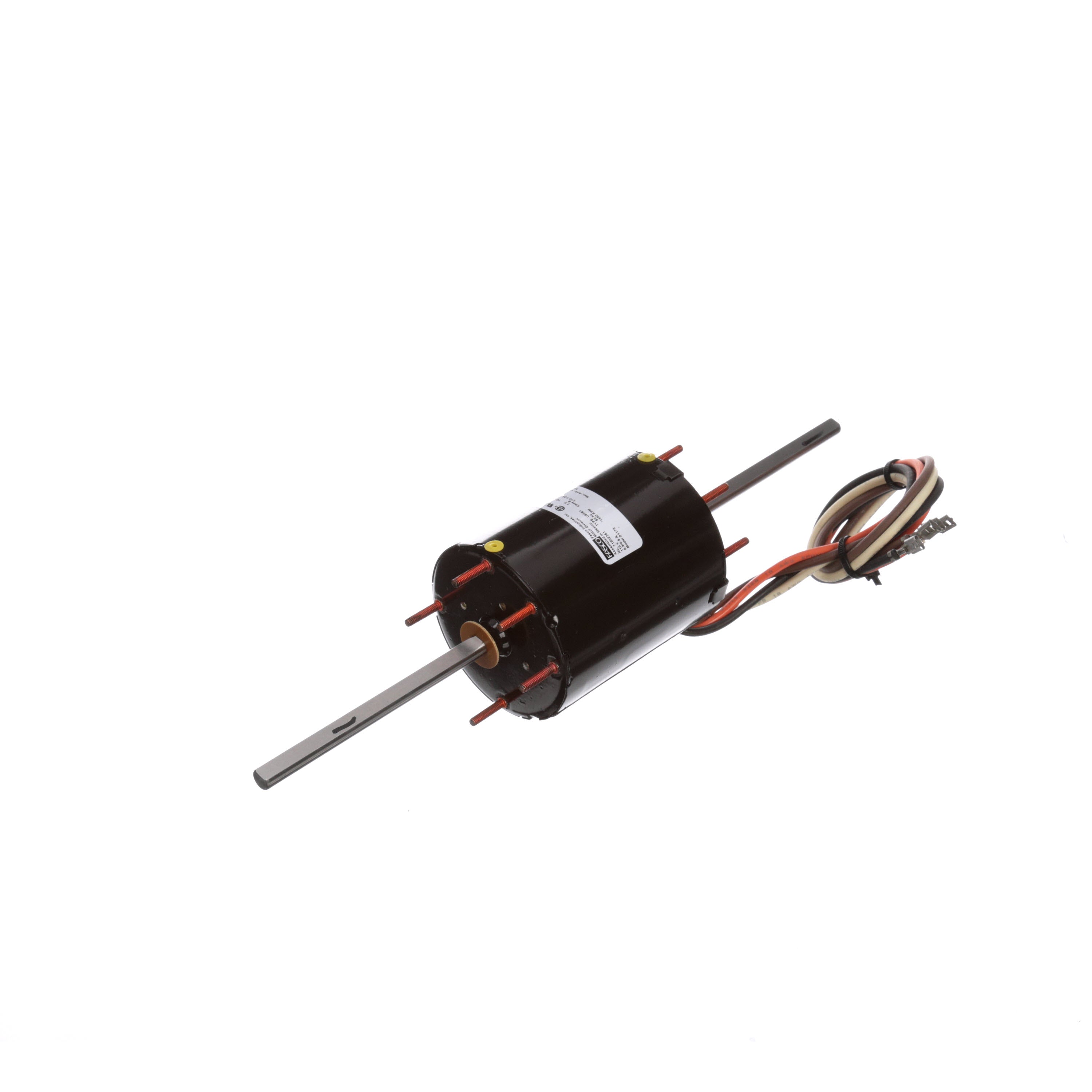

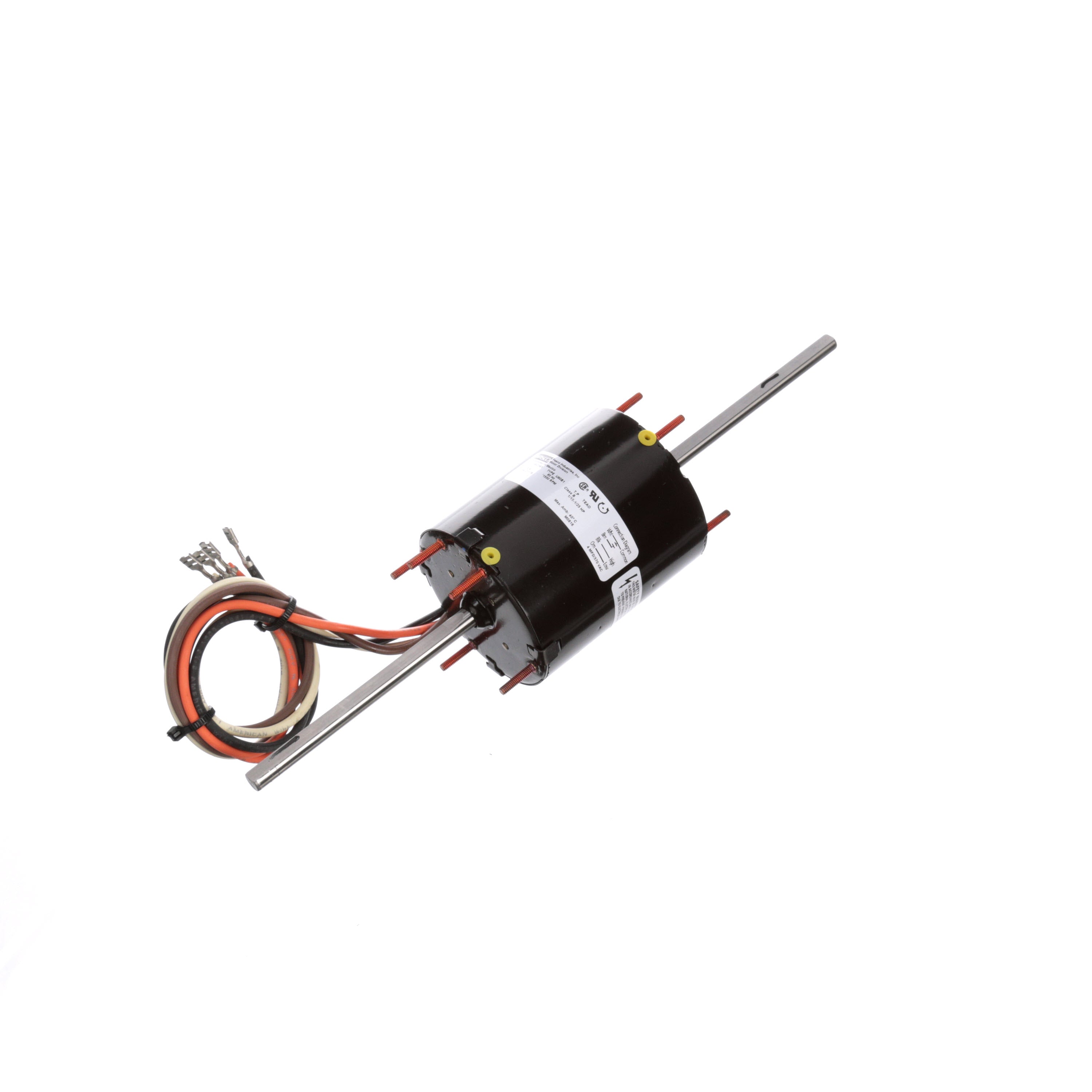

The Fasco D1176 is a 3.3 Inch Dia Window Air-Conditioning Motor. It features a sleeve bearing and a totally enclosed enclosure. Operates at 60 Hz, 0.067 HP, with dual shaft rotation and a horizontal shaft. The motor runs at 1550 rpm and uses a permanent split capacitor start method, operating at 115V.
- 2 speeds
- Full load ampere: 0.9 - 0.8A
- HP rating: 1/15 - 1/25 HP
Product Highlights
This Fasco motor is designed for window air conditioners, offering efficient and reliable performance with its thermally protected design.
Product Information
Standard Information
-
Brand: FASCO
-
Manufacturer Part Number: D1176
-
Country of Origin: Mexico
Technical Specifications
-
Series: FA115VTE3.3IDWA-CM
-
Rotation: DS
-
HP Rating: 0.06 HP
-
Item Name: 3.3 Inch Dia Window Air-Conditioning Motor
-
Bearing Type: Sleeve
-
Shaft Length: 4.875 Inch
-
Speed Rating: 1550 rpm
-
Start Method: Permanent Split Capacitor
-
Enclosure Type: Totally Enclosed Air Over
-
Shaft Diameter: 0.375 Inch
-
Shaft Position: Horizontal
-
Voltage Rating: 115 V
-
Frequency Rating: 60 Hz
-
Full Load Ampere: 0.8 A
-
Model Name: D1176 9164335
-
Material: Copper
-
Brand: Fasco
-
Catalog Number: D1176
-
Product Category: HVAC/R Motors > HVAC/R OEM Replacement Motors
-
HP: 1/15
-
Volts: 115
-
Amps: 0.90/0.80
-
RPM (Number of Poles): 4 (1201 RPM to 1800 RPM)
-
RPM (Nameplate): 1550
-
Speeds: 2
-
Phase: 1
-
Mounting Type: Extended Studs
-
Frame Type: 3.3 (in. diameter)
-
Frame Material: Steel
-
Shaft Extension: 4.875 (in.)
-
Shaft Type: Flat
-
DE Bearing Type: Sleeve
-
ODE Bearing Type: Sleeve
-
C-Dimension: 14.01 (in.)
-
Electrical Type: Permanent Split Capacitor
-
Duty: Air Over
-
Motor Orientation: None
-
Service Factor: 1
-
Type of Overload Protector: Thermally Protected
-
Insulation Class: B
-
Max Ambient: 40 C
-
UL: Recognized
-
CE: N
-
CSA: Y
-
IP Code: None
-
KVA Code: None
-
DEM Reference: FA#D1176
-
Output HP: 1/15-1/25 Hp
-
Output KW: 0.05 kW
-
Speed: 1550 rpm
-
Frame: 3.3
-
Enclosure: Totally Enclosed
-
Thermal Protection: No
-
Ambient Temperature: 40
C
-
Current: 0.90/0.80 A
-
Number of Speeds: 2
-
Starting Method: Across The Line
-
Poles: 4
-
Overall Length: 14.01 in
-
Frame Length: 3.82 in
-
Hz: 60
-
Bearings: Sleeve
-
Shaft Number: 2
-
Shaft Dia.: 0.375"
-
Cooling: Ambient
