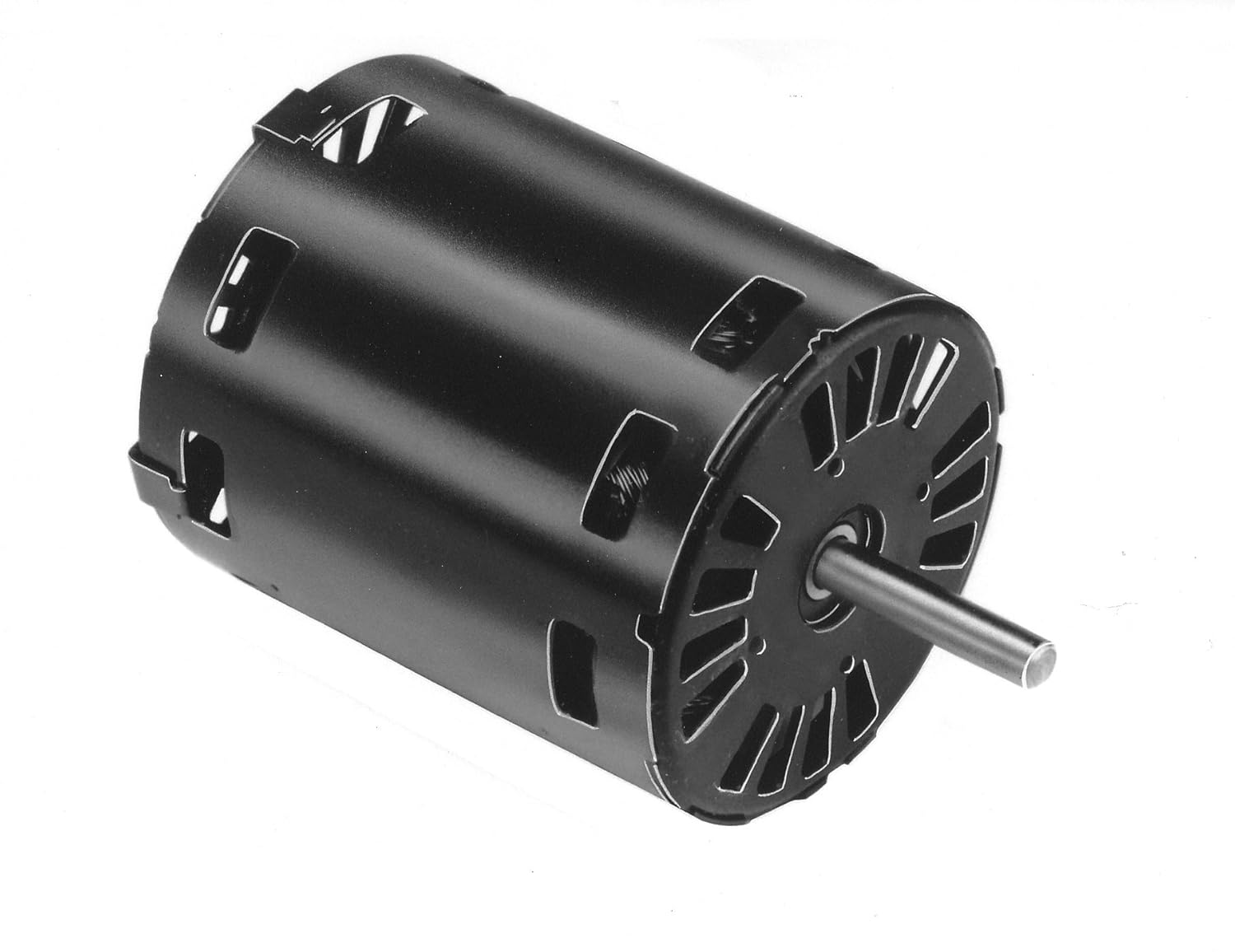

Fasco D1176 3.3 Frame Totally Enclosed Permanent Split Capacitor Window A/C Motor 1/15-1/25HP 1550rpm 115V 60Hz 0.9-0.8 amps

Product Description

The Fasco D1176 motor is a 3.3 frame, totally enclosed permanent split capacitor window A/C motor. It operates at 1/15-1/25 horsepower and runs at 1550 RPM, making it ideal for various window air conditioning units. The motor is designed with a sleeve bearing and has a voltage rating of 115V at 60Hz, drawing 0.9-0.8 amps.

• Totally enclosed permanent split capacitor
• Thermally protected
• Double shaft end rotation

Product Highlights

This motor is CSA certified and UL recognized, ensuring high safety standards. It is interchangeable with most window air conditioner motors and includes a 3M 370V capacitor. Suitable for sears-whirlpool 5000-8000 BTU units.

Product Information

Standard Information

• Brand: Fasco
• MPN: D1176
• Voltage: 115V
• Speed: 1550 RPM
• Amps: 0.9-0.8
• Manufactured By: Fasco Motors
• Certification: CSA, UL

Technical Specifications

• Horsepower: 1/15-1/25 HP
• Frame Size: 3.3
• Capacitor: 3M 370V
• Shaft Dimensions: 4-7/8 by 3/8 by 4-7/8 inches
• Weight: 4 Pounds
• Dimensions: 17.9 x 3.8 x 3.7 inches
• Color: None specified
