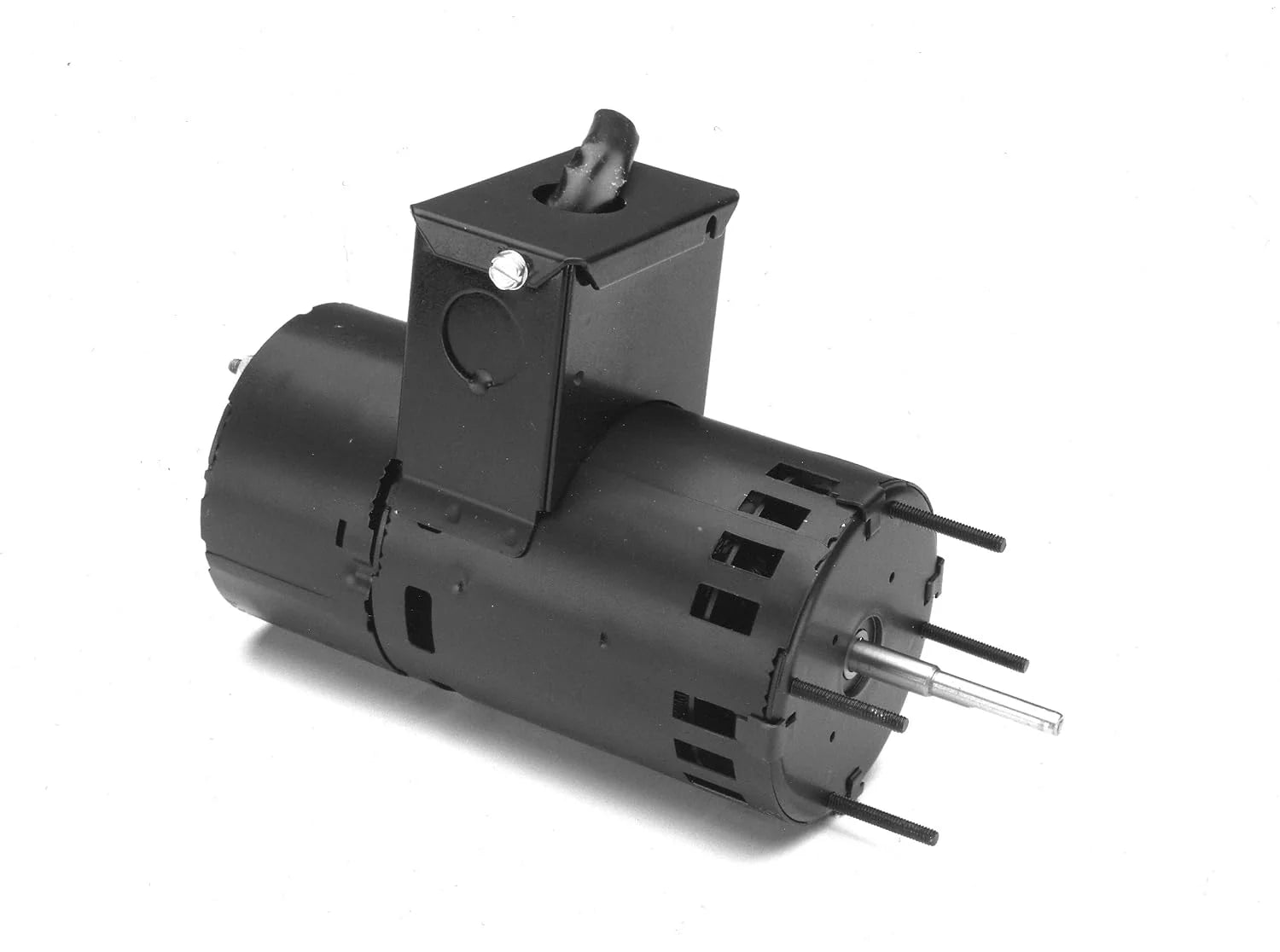

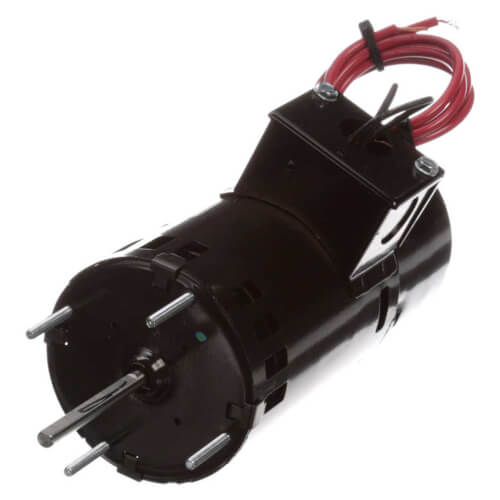

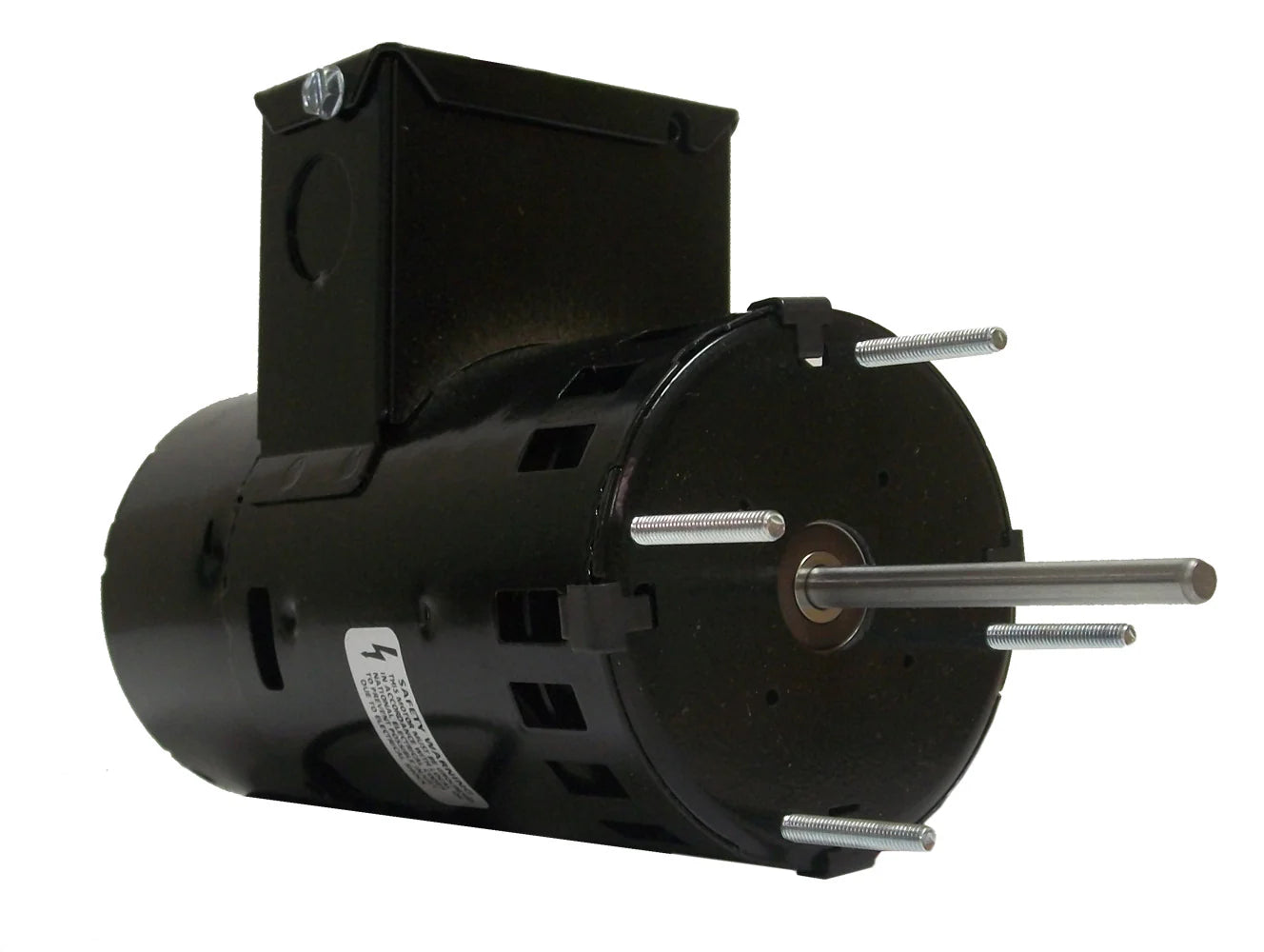

Fasco D1174 1/15 HP 3000 RPM Draft Inducer Blower Motor 460 Volts

Product Description

The Fasco D1174 is a 1/15 HP blower motor designed for draft inducer applications. Operating at 3000 RPM with 460 volts, it's a reliable choice for HVAC systems.

• 1/15 HP motor for draft inducer applications
• 3000 RPM speed
• 460 volts operation

Product Highlights

This Fasco blower motor is thermally protected, has a ball bearing design, and supports clockwise shaft end rotation, ensuring long-lasting performance and reliability.

Product Information

Standard Information

• Brand: Fasco
• Model: D1174
• Uses: Draft inducer applications

Technical Specifications

• Horsepower: 1/15 HP
• Speed: 3000 RPM
• Voltage: 460V
• Amperage: 0.6A
• Diameter: 3.3 inches
• Rotation: Clockwise Shaft End
• Mounting: Extended Studs
• Insulation Class: B
• Bearings: Ball
• Enclosure: Open Air Over
• Overload Protection: Thermally Protected
• Frequency: 60 Hz
• Standards: UL Recognized, CSA Certified
• Ambient Temperature: 40°C
