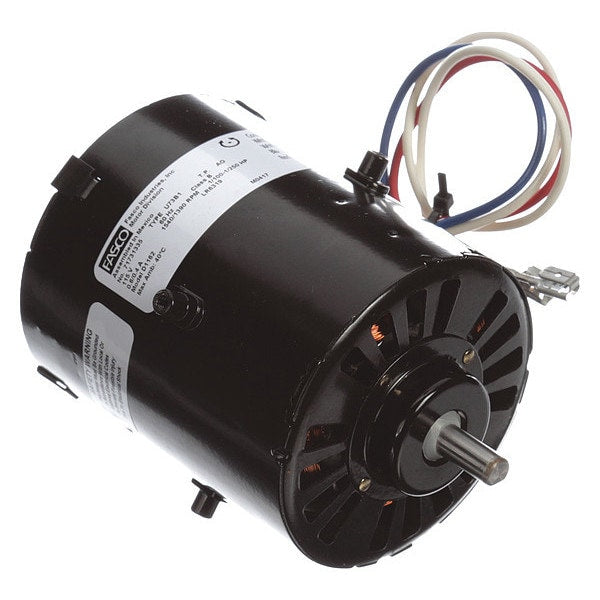

Fasco d1162 Shaded Pole Motor 1/100 Hp 115V

Product Description

The FASCO d1162 is a single-phase, shaded pole OEM replacement motor designed for HVAC applications requiring a compact, low-horsepower drive. Rated at 1/100 HP (10 watts output) on its primary winding and 1/250 HP on its secondary, the motor operates on 115V AC at 60 Hz and delivers nameplate speeds of 1,540 and 1,390 RPM. Full load amp draw is 0.60 A and 0.40 A respectively. The motor features automatic thermal protection and a Class B insulation rating, making it a reliable direct replacement in light-duty blower and fan applications. Licensed HVAC technicians and qualified service professionals are the typical installers for this component.

The d1162 fits into residential and light commercial HVAC equipment where a 3.3 frame, belly band mount motor is specified. Its open air-over enclosure design suits installations inside equipment cabinets where airflow from the driven fan or blower provides adequate motor cooling. The motor supports both clockwise and counterclockwise shaft rotation, offering flexibility during installation. This unit is not rated for use at 208V or 200V and must be powered from a 115V AC supply only.

Key Features

• Dual horsepower ratings: 1/100 HP and 1/250 HP at 1,540 and 1,390 RPM respectively
• Single-phase shaded pole motor design for simple, brush-free operation
• Automatic thermal protection guards against overheating during fault conditions
• CW/CCW shaft rotation accommodates various blower and fan configurations
• 3.3 frame with belly band mounting for OEM-style fitment
• Class B insulation rated to 40 degrees C maximum ambient temperature

Compatibility

Designed as an OEM-style replacement for residential and light commercial HVAC fan and blower assemblies requiring a 3.3 frame, belly band mount, single-phase shaded pole motor rated at 115V AC.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all power to the equipment before removing the existing motor or making any wiring connections. Confirm the supply voltage is 115V AC before energizing, as this motor is not rated for 208V or 200V circuits. Secure the belly band mount hardware firmly and verify shaft rotation direction matches the application requirement before returning the unit to service.

Technical Specifications

• Horsepower: 1/100 HP / 1/250 HP
• Output Power: 10 watts
• Voltage: 115V AC
• Frequency: 60 Hz
• Full Load Amps: 0.60 A / 0.40 A
• Nameplate RPM: 1,540 / 1,390
• Number of Speeds: 1
• Phase: Single Phase
• Motor Design: Shaded Pole
• Frame: 3.3
• Mounting Type: Belly Band
• Enclosure: Open Air Over
• Shaft Rotation: CW/CCW
• Insulation Class: B
• Thermal Protection: Auto
• Service Factor: 1
• Max Ambient Temperature: 40 degrees C
• Usable at 208V: No
• Usable at 200V: No
• Country of Origin: Mexico

Standard Information

• Brand: FASCO
• Manufacturer Part Number: d1162
