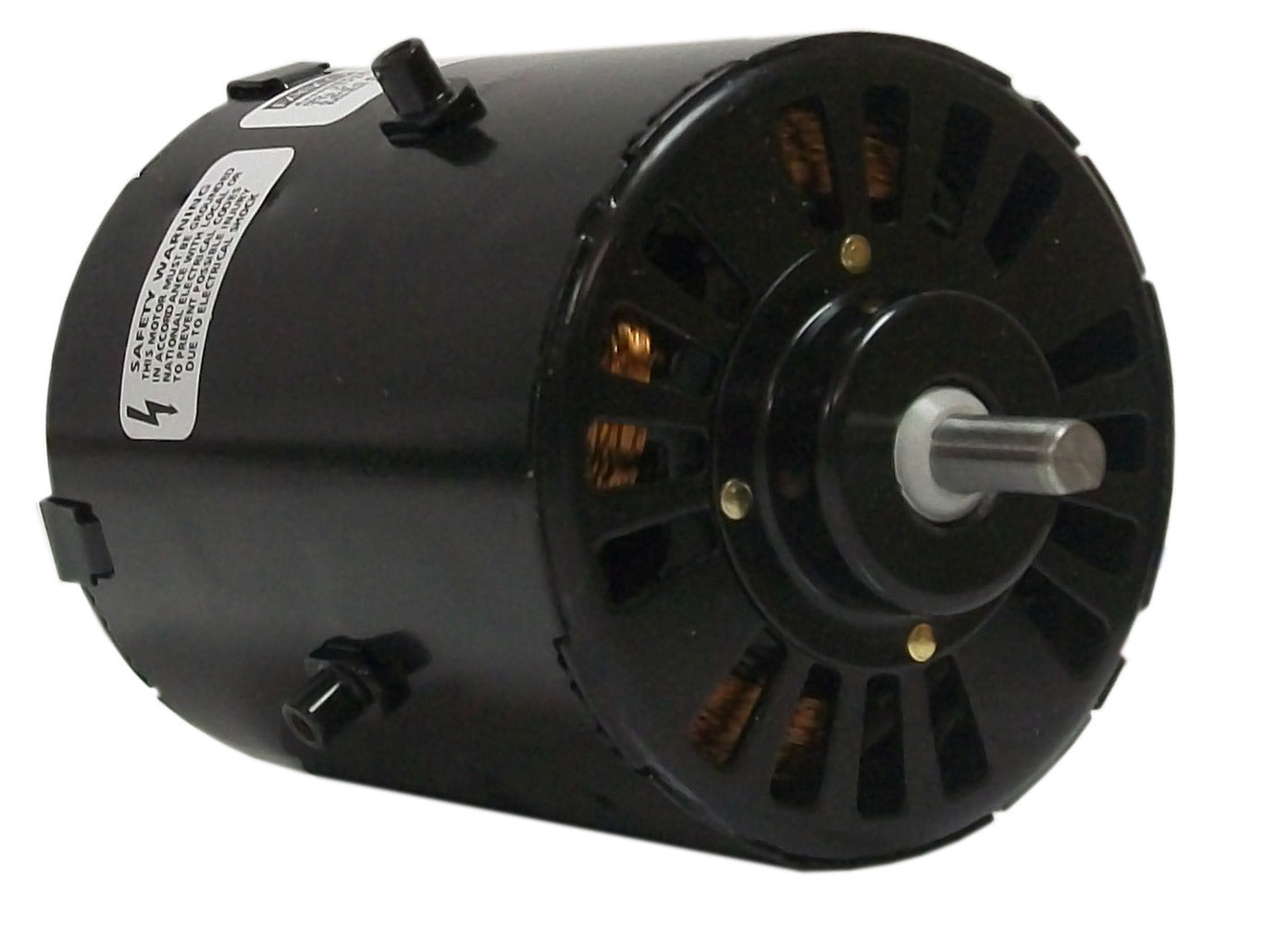

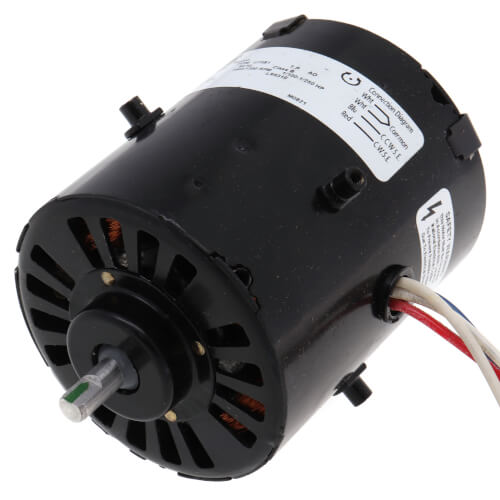

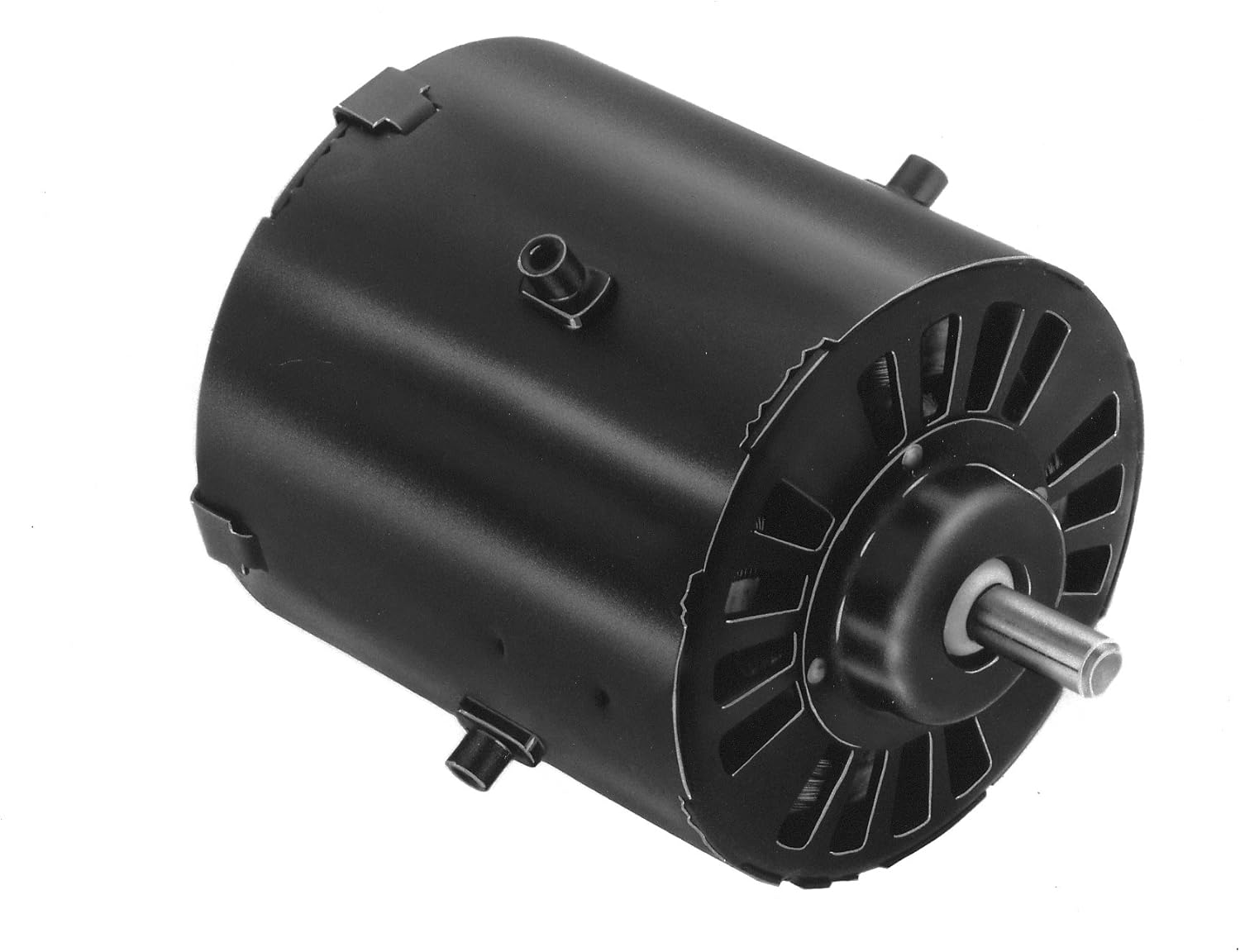

Fasco D1162 3.3 Frame Open Ventilated Shaded Pole General Purpose Motor with Sleeve Bearing 1/100HP 1500rpm 115V 60Hz 0.6 amps

Product Description

The Fasco D1162 motor is designed for general-purpose use. It features an open ventilated shaded pole and has a frame size of 3.3 inches. This motor operates at 1/100HP and 1500 RPM with a voltage rating of 115V and a frequency of 60Hz. It has a sleeve bearing and reversible rotation capabilities.

• General-purpose motor
• 1/100 HP, 1500 RPM
• 115V, 60Hz, 0.6 amps

Product Highlights

The Fasco D1162 motor is highly reliable for various fan and blower applications. It features automatic thermal protection and is certified by UL and CSA. Its reversible rotation makes it versatile for different setups.

Product Information

Standard Information

• Brand: Fasco
• MPN: D1162
• Usage: General Purpose
• Bearing: Sleeve

Technical Specifications

• Voltage: 115V
• Horsepower: 1/100 HP
• Speed: 1500 RPM
• Amperage: 0.6 amps
• Frame size: 3.3 inches
• Bearings: Sleeve
• Rotation: Reversible
• Enclosure Type: Open Air Over
• Certification: UL, CSA
• Ambient Temperature: 40°C
• Insulation Class: B
• Mounting Type: Belly Band
