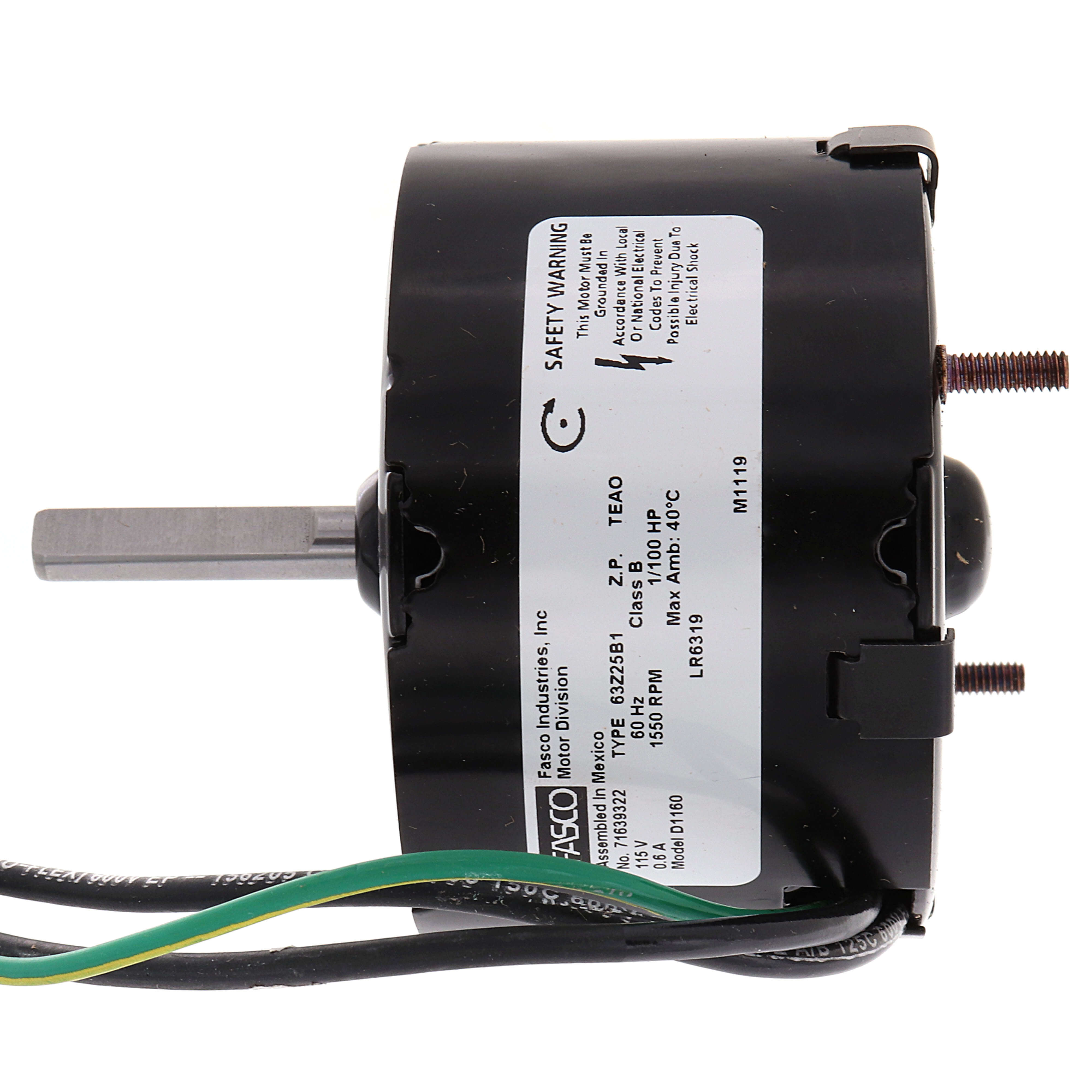

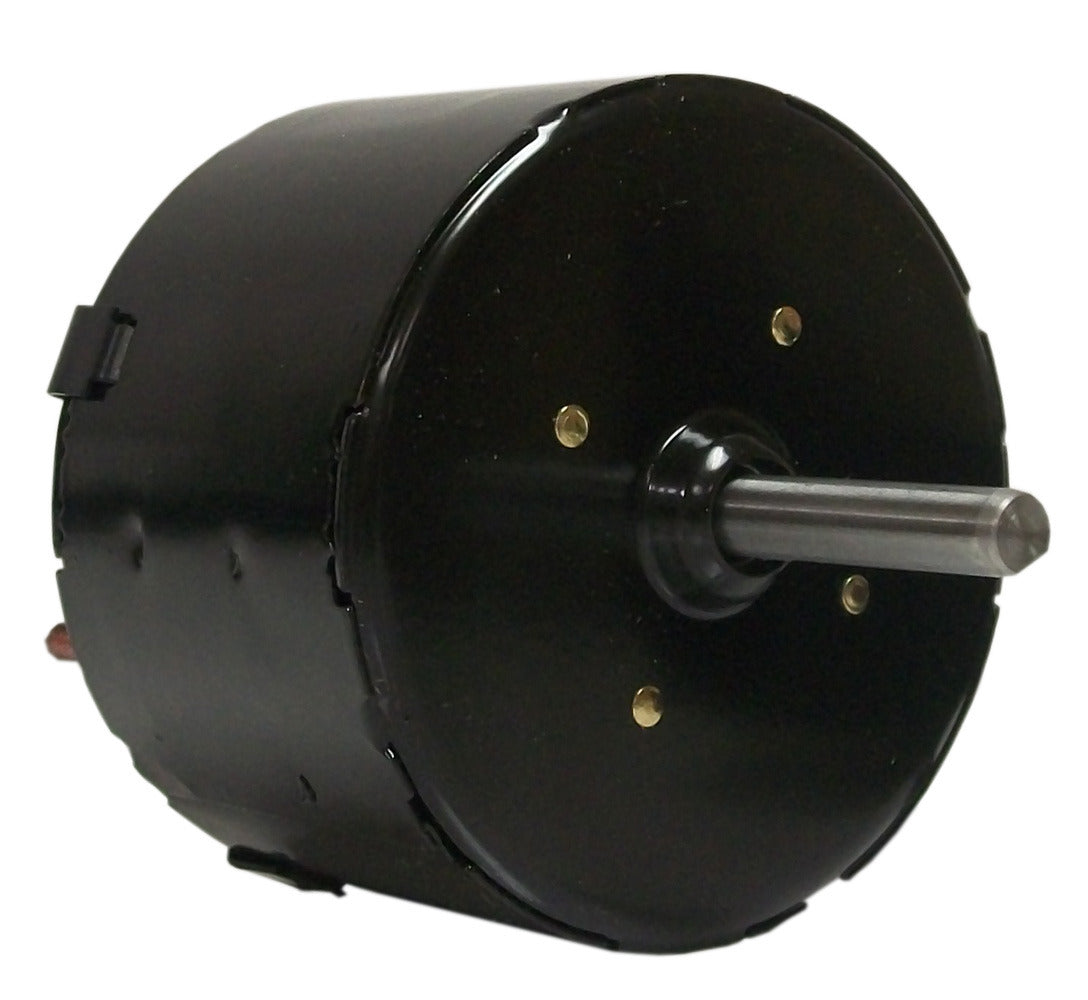

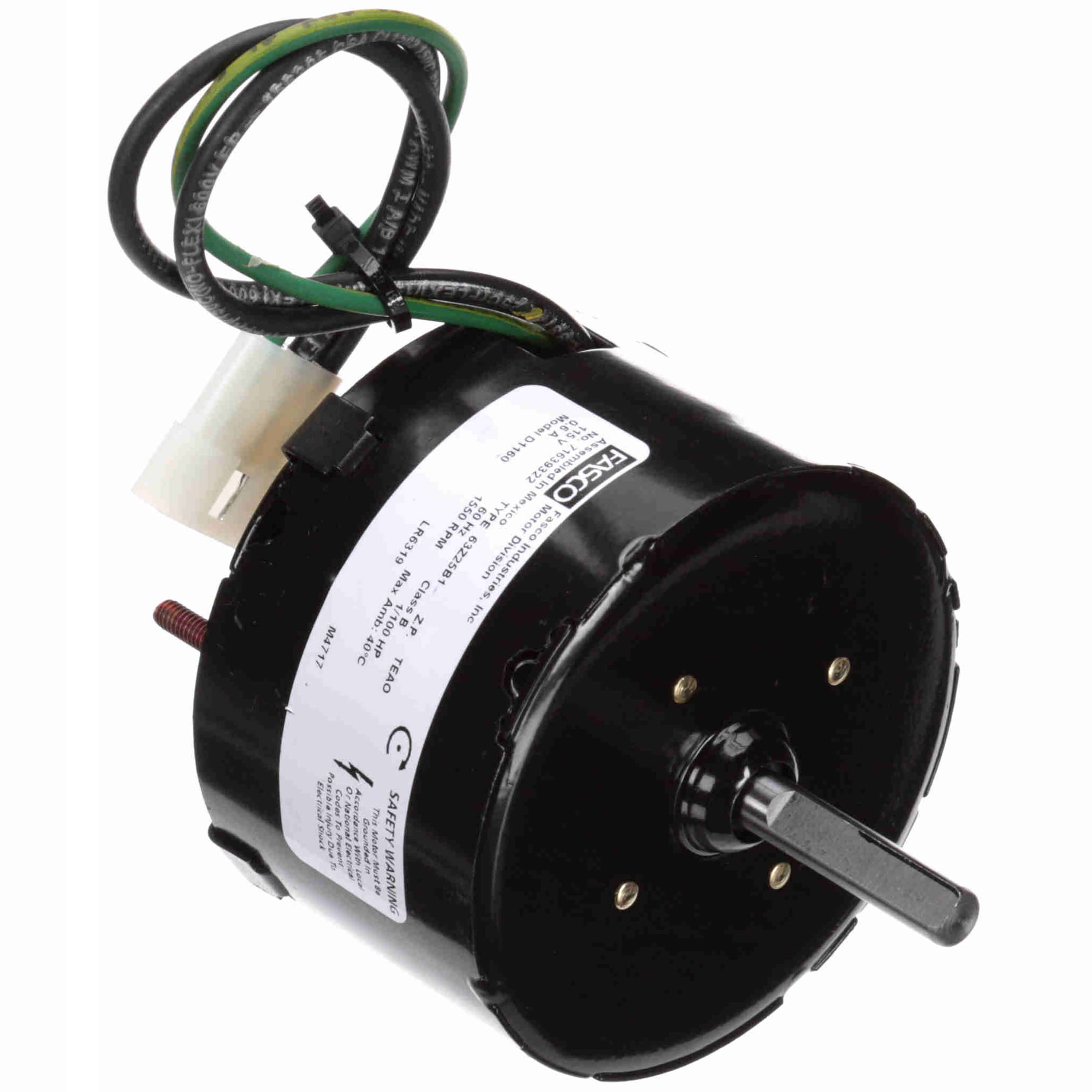

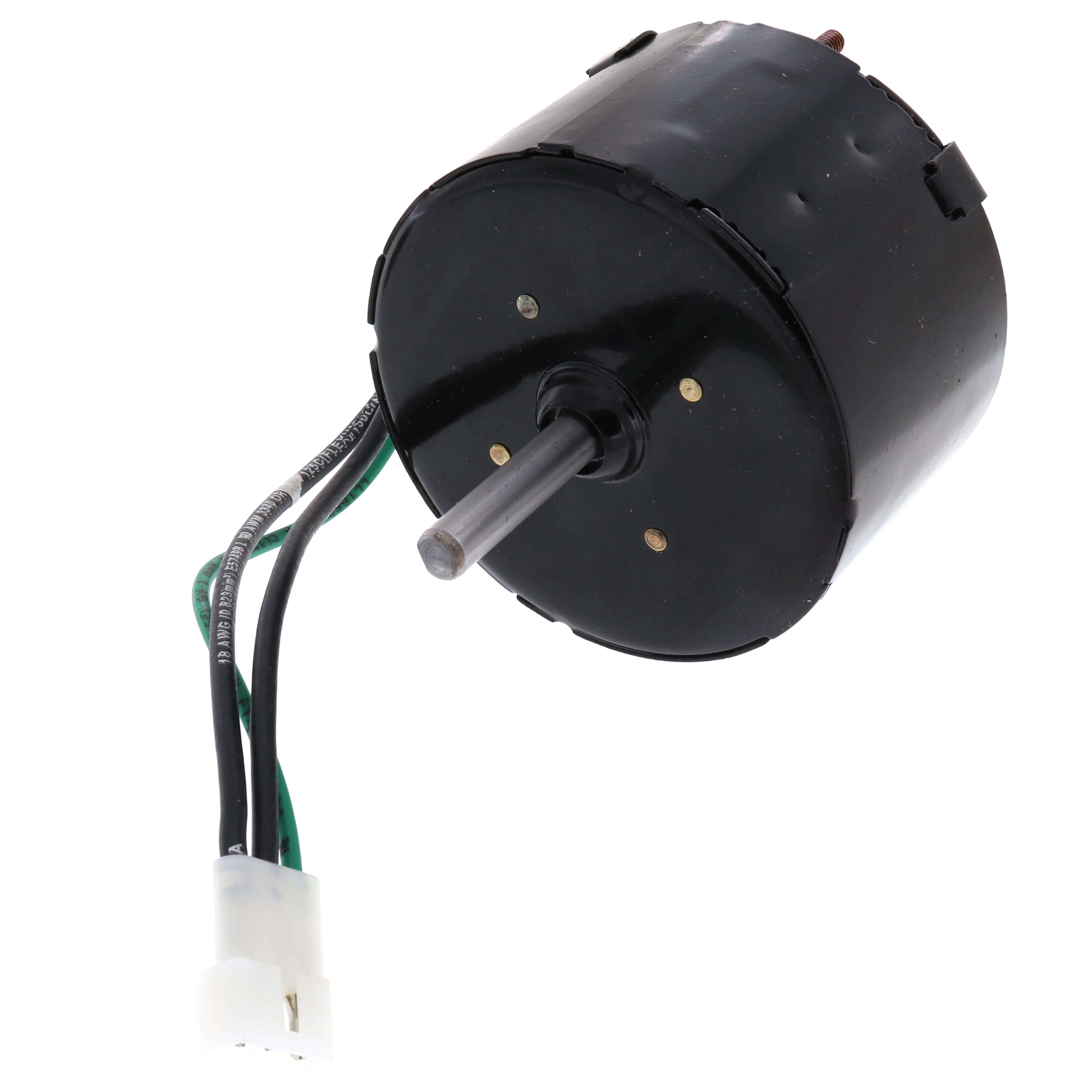

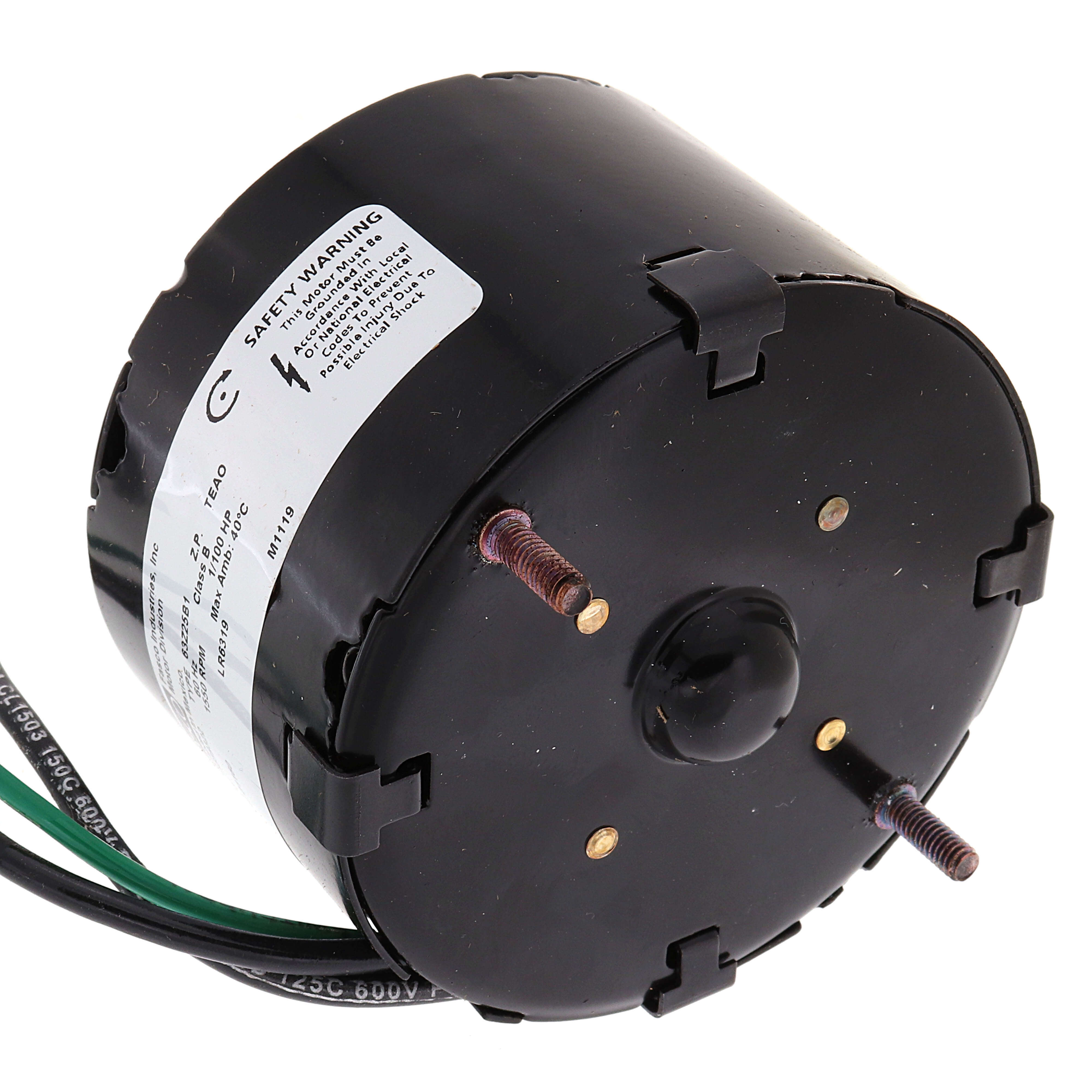

Product Description
The FASCO D1160 is a 3.3" shaded pole totally enclosed motor operating at 115 Volts and 1480 RPM. This motor is designed for general purpose use and OEM replacement applications. It features a single-phase design and sleeve bearings. Commonly used in fan and blower applications.
- Shaded Pole Motor Type
- Totally Enclosed Enclosure
- 115 Volts, 1480 RPM
Product Highlights
This Fasco motor is suitable for various applications requiring a reliable and compact motor.
Product Information
Standard Information
-
Brand: FASCO
-
Manufacturer Part Number: D1160
-
Country of Origin: Mexico
Technical Specifications
-
Brand: Fasco
-
Voltage: 115 Volts
-
RPM: 1480
-
Motor Type: Shaded Pole
-
Enclosure: Totally Enclosed
-
Speed: 1480 RPM
-
Item Model Number: D1160
-
Part Number: D1160
-
Horsepower: 1/100 HP
-
Electrical Type: Shaded Pole
-
HP: 1/100
-
Diameter: 3.3"
-
Phase: Single
-
Rotation: Clockwise Shaft End
-
Overload: Impedance
-
Material: Steel
-
Mounting: Extended Studs
-
Amperage: 0.60
-
Shaft Type: Flat
-
KW: 0.01
-
Shaft Diameter: 0.313
-
Bearings DE Type: Sleeve
-
Bearings ODE Type: Sleeve
-
Shaft Extension: 1.60
-
Ambient Temperature: 40°C
-
Frequency: 60
-
Insulation Class: B
-
Poles: 4
-
Service Factor: 1
-
Number of Speeds: 1
-
Frame Size: 3.3
-
Hertz: 60 Hz
-
Duty: Air Over
-
Mount: Extended Studs
-
Width: 3.3"
-
Amps: .60
-
Shaft: 5/16" x 1 1/2"
-
Motor Length Less Shaft: 2 1/8"
-
Bearings: Sleeve Bearings
-
Model: D1160
-
Compatible Brand: For Berko, For Fasco
-
Type: Fan Motors
-
Nameplate RPM: 1550 rpm
-
Motor Design: Shaded Pole
-
Shaft Length: 1-9/16"
-
Motor Bearings: Sleeve
-
Overall Length: 4.07"
-
Bolt Circle Dia.: 2-13/16"
-
Number of Shafts: 1
-
Length Less Shaft: 2 1/2 in
-
Motor Application: OEM Replacement
-
Capacitor Required: No
-
Max. Ambient Temp.: 40 Degrees C
-
Motor Shaft Design: Flat
-
Motor Mounting Type: Extended Studs
-
Motor Frame Material: Steel
-
Motor Service Factor: 1.00
-
Motor Shaft Rotation: Clockwise Shaft End
-
Motor Sub Application: Condenser Fan Motor
-
Mounting Stud Pattern: 2" x 2"
-
OEM Replacement Brand: Fasco
-
Voltage Compatibility: 115V AC, 120V AC
-
Motor Enclosure Design: Totally Enclosed Air-Over
-
Motor Thermal Protection: Impedance
-
Manufacturers Warranty Length: 1 yr.
-
Country of Origin (subject to change): United States
-
Rated RPM: 1500
-
Full Load Amps: 0.3 FLA
-
Thermal Protection: Automatic
-
Manufacturers Part Number: D1160
-
Certifications: UL and CSA
-
Model Name: d1160
-
Voltage rating: 115V
-
Speed rating: 1480 rpm
-
Full load: 0.58amps
-
Shaft diameter: 5/16"
-
Shaft length: 1-1/2"
-
Motor length: 2-1/8"
