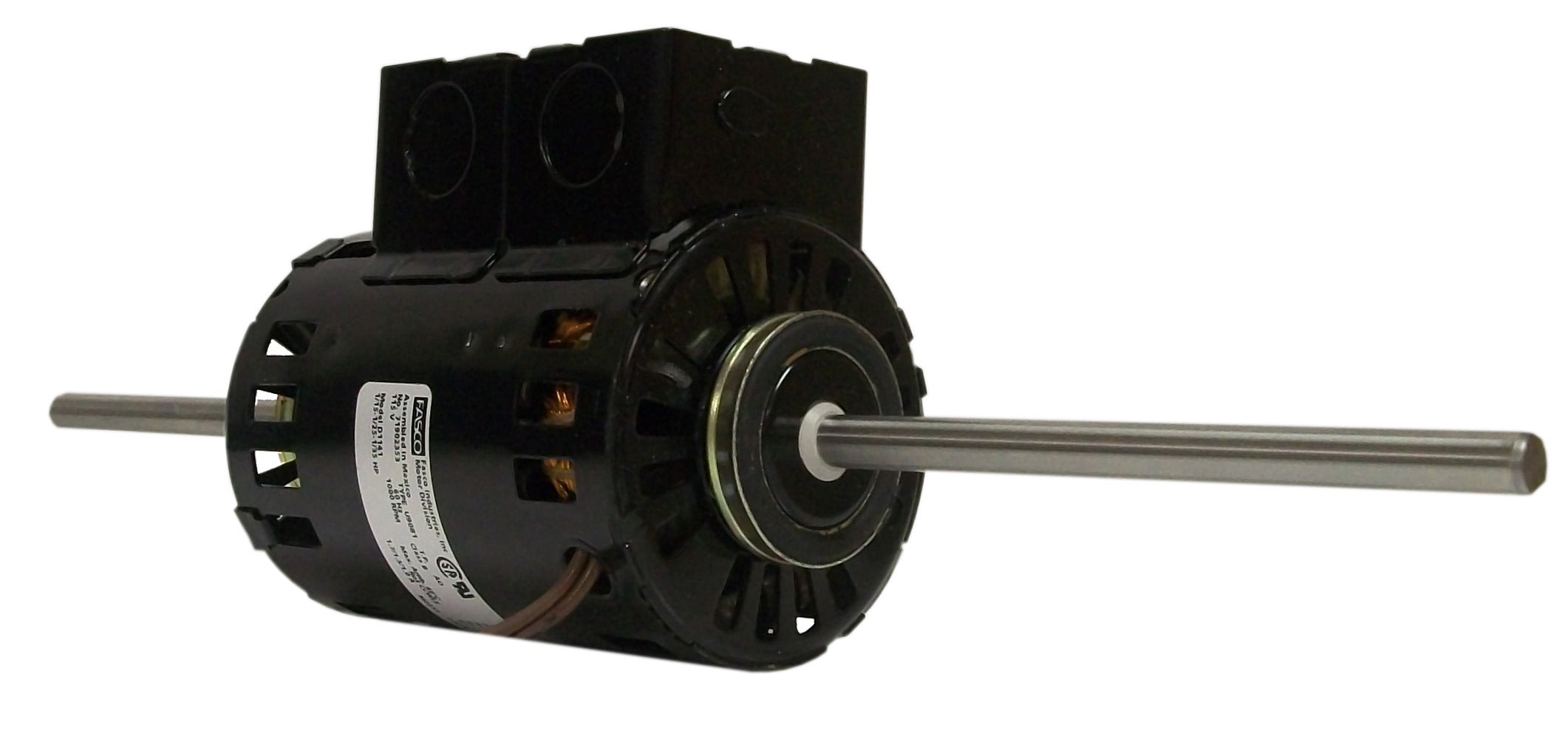

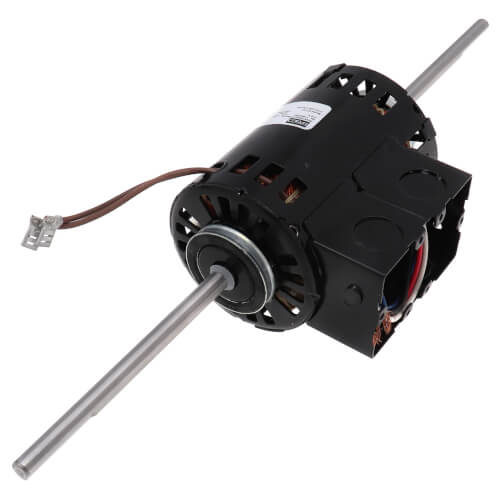

Fasco D1141 3.3 Frame Permanent Split Capacitor Motor 1/15-1/25-1/35HP 115V 1000rpm

Product Description

The Fasco D1141 3.3 Frame Permanent Split Capacitor Motor is an OEM replacement designed for McQuay systems. It operates at 1000 RPM and supports multiple horsepower ratings of 1/15, 1/25, and 1/35 HP. This motor is thermally protected and features a sleeve bearing for reliable performance. It is UL recognized and CSA certified.

• OEM replacement motor
• Thermally protected
• UL recognized; CSA certified

Product Highlights

This Fasco D1141 motor is built for industrial applications. It has 3-speed settings and a counterclockwise lead end rotation. It fits easily with resilient rings and can handle ambient temperatures up to 40 degrees Celsius.

Product Information

Standard Information

• Manufacturer: Fasco Motors
• Brand: Fasco
• MPN: D1141
• Weight: 6.2 lbs
• Dimensions: 17.6 x 6.3 x 3.5 inches

Technical Specifications

• Electrical Type: Permanent Split Capacitor
• HP: 1/15-1/25-1/35
• RPM: 1000
• Voltage: 115V
• Frequency: 60 Hz
• Amperage: 1.3-1.1-0.9 amps
• Frame: 3.3
• Enclosure: Open Air Over
• Phase: Single
• Rotation: Counterclockwise Lead End (CCWLE)
• Bearings: Sleeve
• Mounting: Resilient Rings
• Overload Protection: Thermally Protected
