Fasco D1140 Condenser Fan Motor Ring 115V 1500 RPM Replacement McQuay

Product Description

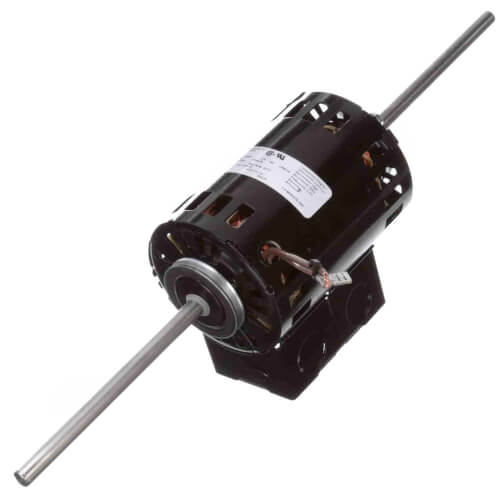

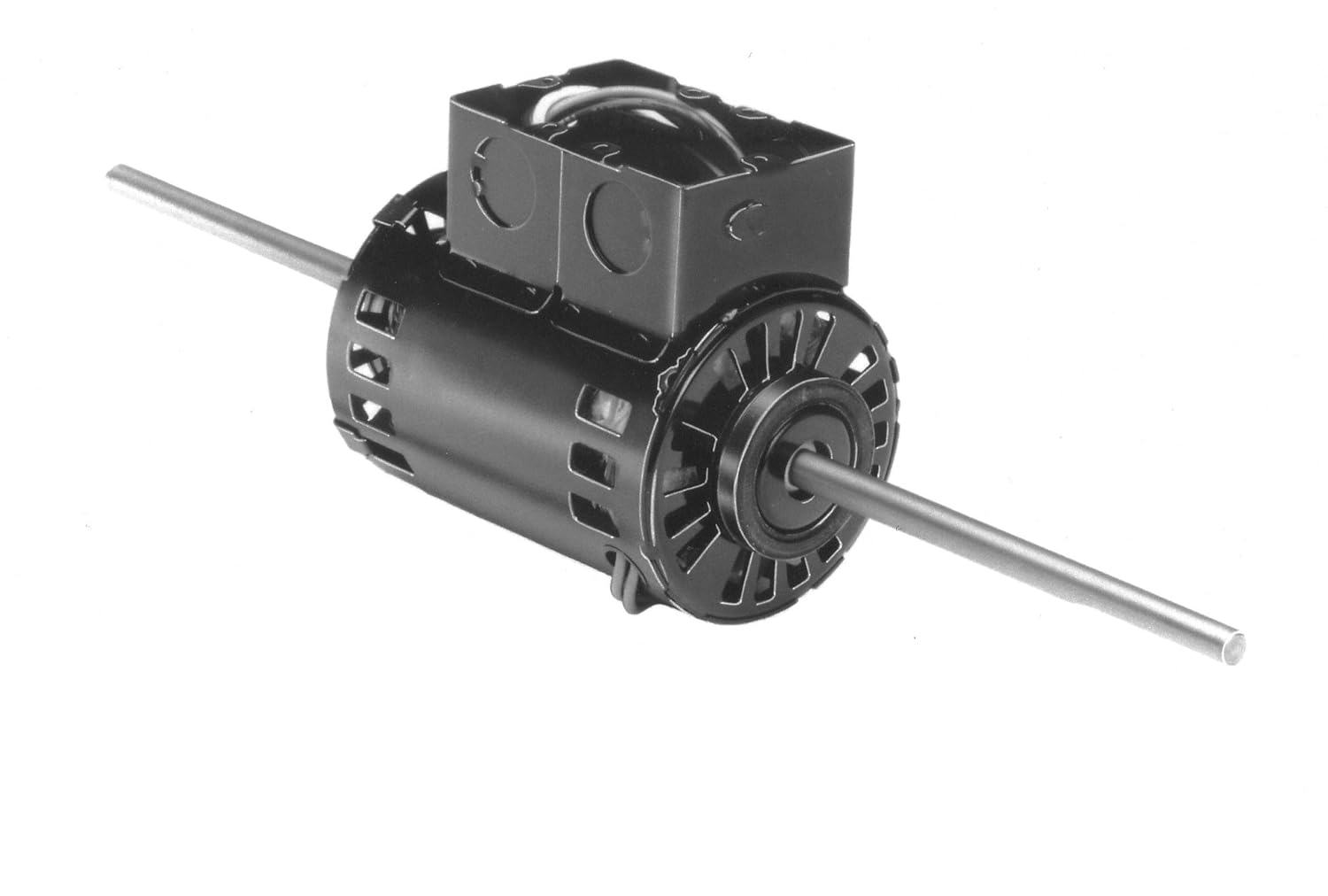

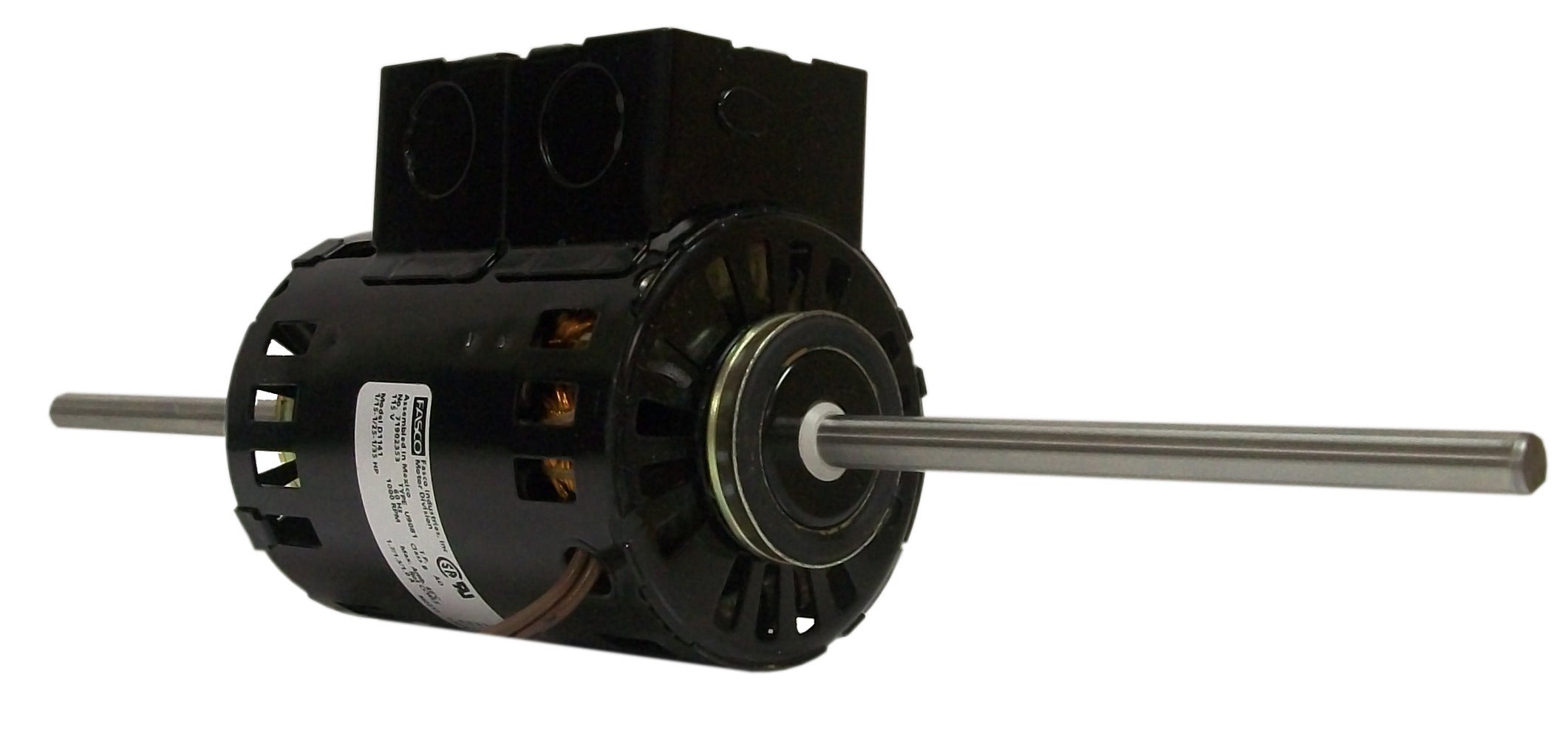

The Fasco D1140 Condenser Fan Motor is an essential component for HVAC systems, designed for efficiency and reliability. This motor operates at 115 volts and 1500 RPM, making it suitable for various fan applications. Manufactured to replace McQuay 879-382564B-00, this OEM motor offers superior performance.

• OEM replacement motor with sleeve bearing
• Thermally protected
• UL recognized; CSA certified

Product Highlights

The Fasco D1140 Motor is a permanent split capacitor type motor with durable sleeve bearings. It features counterclockwise rotation and is thermally protected for safety. Certified by UL and CSA, this motor ensures reliable operation in HVAC systems.

Product Information

Standard Information

• Brand: Fasco
• MPN: D1140

Technical Specifications

• Voltage: 115V
• RPM: 1500
• Amperage: 2.2/2.1/1.7A
• Phase: Single
• Frequency: 60 Hz
• Enclosure: Open Air Over
• Insulation Class: B
• Max Ambient Temperature: 40°C
• Sleeve Bearings: Yes
• Motor Mounting Type: Resilient Rings
• Shaft Diameter: 3/8 inches
• Shaft Length: 5-5/8 inches
• Body Diameter: 3.3 inches
• Service Factor: 1.00
• Weight: 6 pounds
• Dimensions: 17 x 4.5 x 3.31 inches
