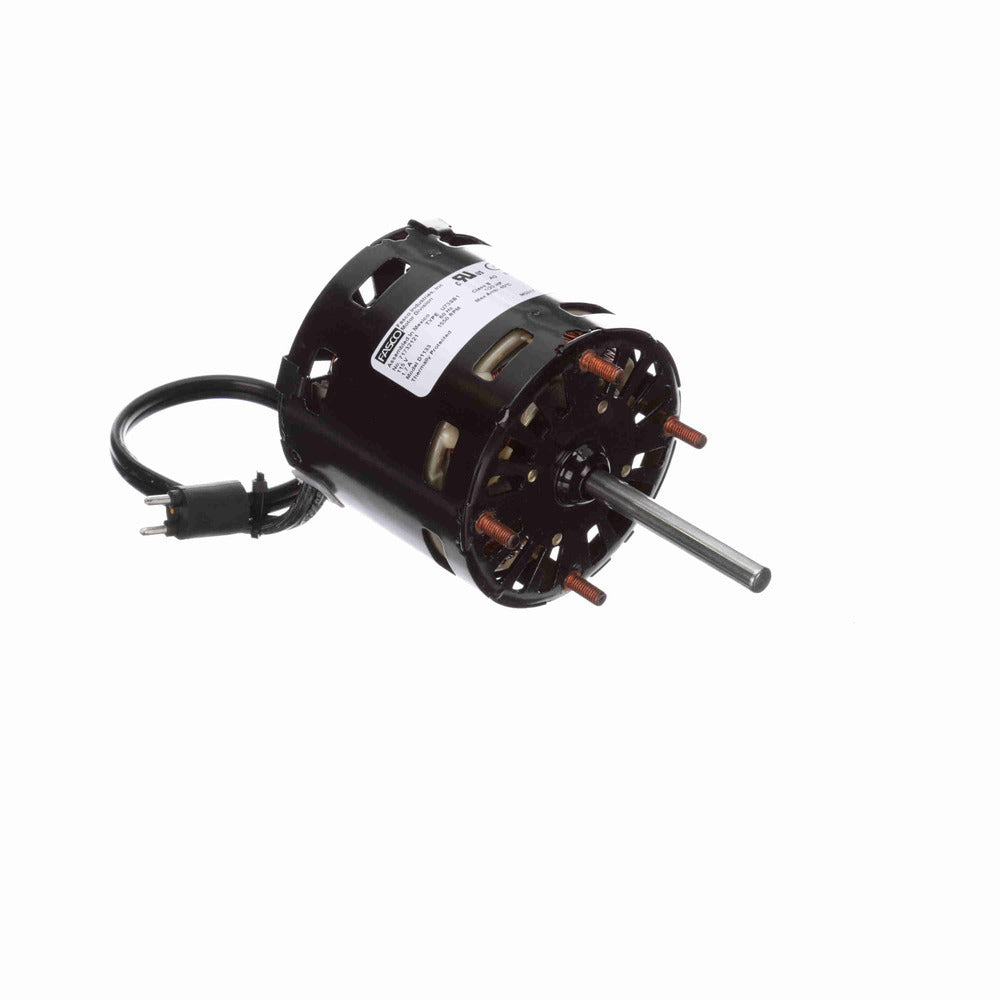

Fasco D1133 Motor 1/20 HP OEM Replacement Brand: Heatcraft

Product Description

The Fasco D1133 is an OEM replacement motor designed for use in various industrial applications. It is a single-phase motor with a power rating of one-twentieth horsepower and operates at a voltage of one hundred fifteen volts. The motor runs at a nameplate speed of one thousand five hundred fifty RPM, making it suitable for fan-related applications.

• Motor Design: Shaded Pole
• Full Load Amps: 1.70
• Max Ambient Temperature: 40 Degrees Celsius

Product Highlights

This motor features automatic thermal protection and an open air-over enclosure, which allows for efficient cooling while in operation. It has a shaft diameter of 0.313 inches and utilizes sleeve bearings for smooth performance.

Product Information

Standard Information

• Voltage: 115V AC
• Horsepower: 1/20 HP

Technical Specifications

• RPM: 1550
• Frame Diameter: 3.3 inches
• Amperage: 1.70 A
• Shaft Length: 2.6 inches
• Service Factor: 1
• Insulation Class: B
• Mounting Type: Extended Studs
• Application: OEM Replacement
• Country of Origin: Mexico
